1x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP Slot Gigabit Ethernet Mini Unmanaged Media Converter
$18.00
- 3-Year Warranty
- 30-Day Easy Return
Description

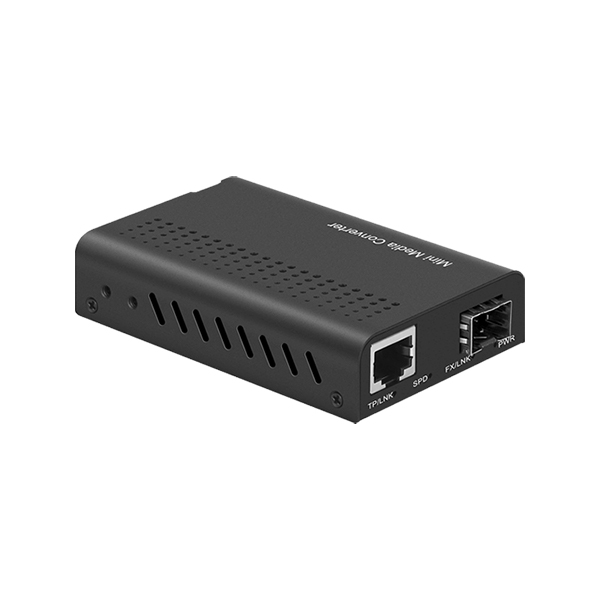

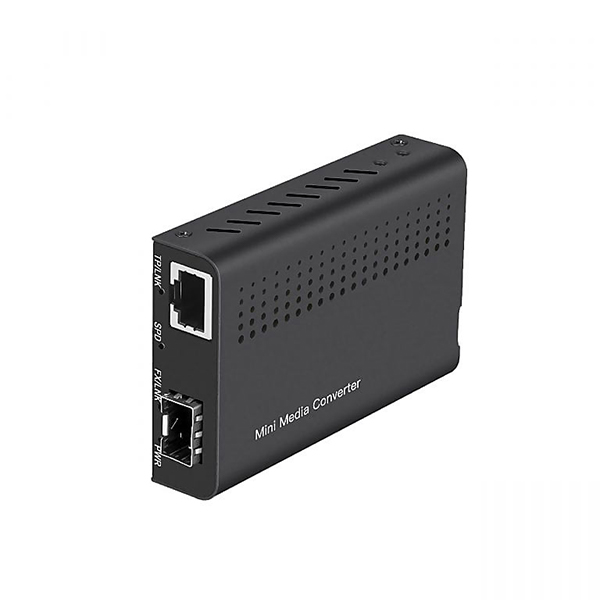

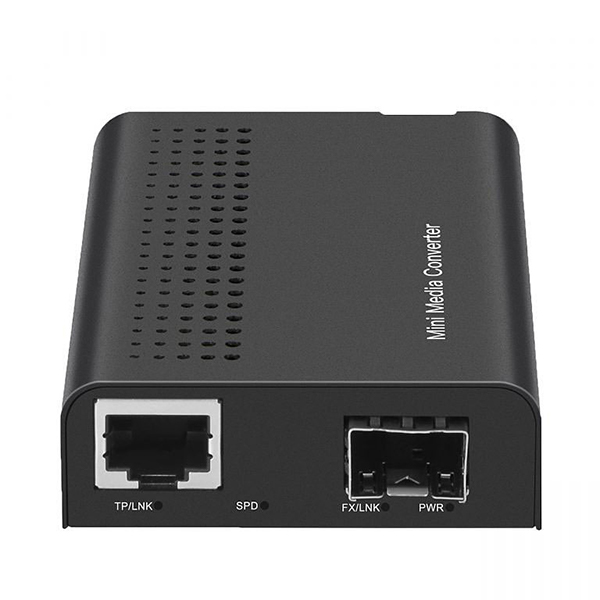

Mini Gigabit Ethernet Network Media Converter (1x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP)
This fiber to Gigabit Ethernet media converter is configured with a 1x 10/100/1000Base-T RJ45 port and a 1000Base-X SFP port. It is used to contact the RJ45 port switch with the SFP port switch by transferring the copper network to a fiber network and extending the transmission distance of the copper network system at speeds of 1Gbps. Media converters are widely used in structured cabling systems to interconnect fiber optic cabling systems with existing copper cables.
The fiber optic media converter is compatible with a wide range of 1G SFP transceivers, including 1000BASE-SX/LX, BiDi SFP, CWDM SFP, etc. All of the optical transceivers are available at Connlight.
| Ports | 1 x Gigabit SFP Port 1 x 10/100/1000M RJ45 Port (Auto MDI/MDIX) | Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,IEEE 802.3z, IEEE 802.3x |
| Cable Type (Fiber) | Multimode 50/125µm, 62.5/125µm Single-mode 9/125µm | Cable Type (Copper) | UTP Cat 5, 5e, 6 Cable (Maximum 100m) EIA/TIA-568 100Ω STP (Maximum 100m) |
| LED Indicators | TP/LNK,1000M, FX/LNK, PWR | DIP Switch | LFP/ ALS/ FX Speed/FX Reset |
| Power Consumption | Full-load<3W | Jumbo Frame | 12k |
| Operation Mode | 10/100Mbps for Half/Full duplex 1000Mbps for Full Duplex | Dimensions (HxWxD) | 0.79”x2.36”x3.54” (20x60x90mm) |
| MTBF (hrs) | >50,000Hrs | Latency | 1us |
| Operating Temperature | 0°C to 50°C | Input Power | DC 5-12V |
| Relative Humidity | 5%~90% (Non-condensation) | Warranty | 3 year |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
