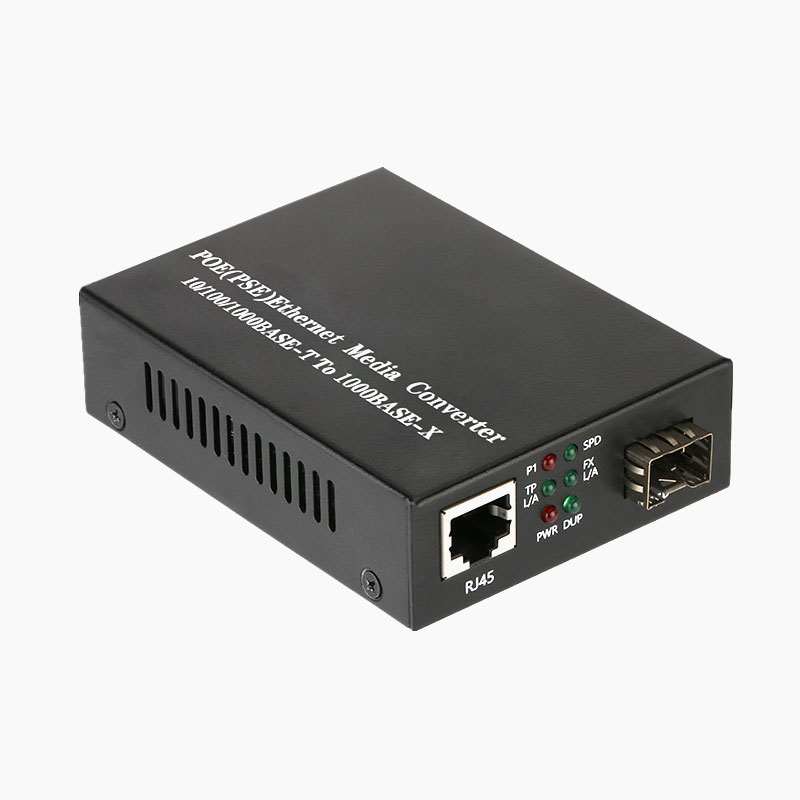

MC-1201P, Gigabit PoE+ Ethernet Media Converter (1 x 10/100/1000Base-T PoE+ RJ45 to 1 x 100/1000Base-X SFP)
This PoE fiber media converter is equipped with 1 x 10/100/1000Base-T RJ45 port with IEEE 802.3af/at PoE+ and 1 x 100/1000Base-X SFP port, providing media conversion between copper and fiber networks while delivering power and data over a single Ethernet cable. Compliant with IEEE 802.3af/at standards, it functions as a mid-span Power Sourcing Equipment (PSE) and delivers up to 30W PoE+ power. The converter supports 1000Base-X fiber transmission and can be forced to operate at 100Base-FX via DIP switch settings. Additional features include Link Fault Pass-through (LFP), ALS, FX reset, over-current protection, and plug-and-play operation. It supports desktop and wall-mount installation.
| PN | MC-1201P | Ports | 1 x 10/100/1000Base-T RJ45 Port 1 x 1000Base-X SFP Port |
| PoE Standard | IEEE 802.3af/at | Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |

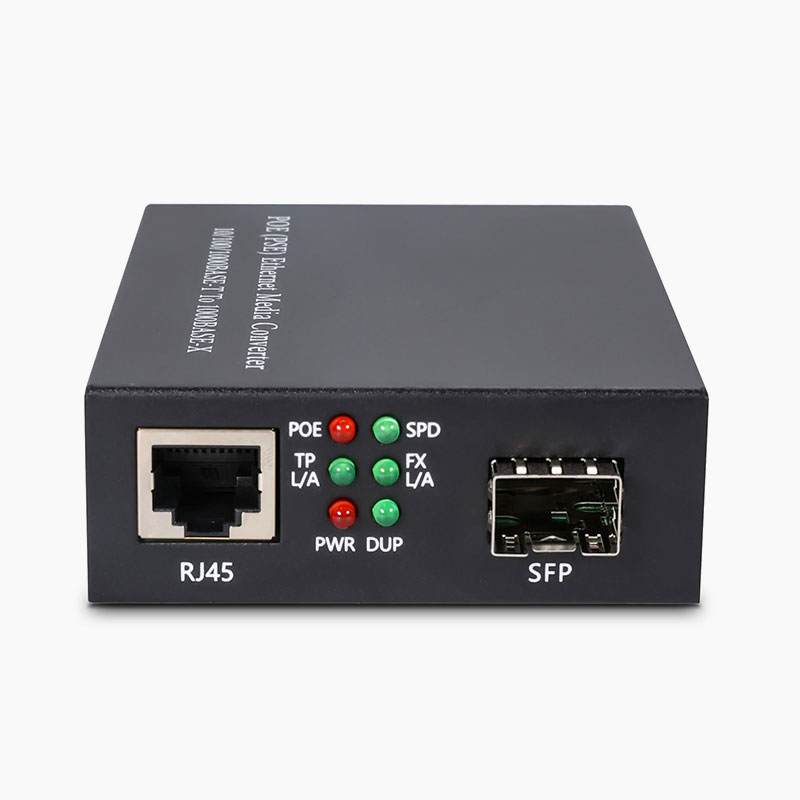

| LED Indicators | PWR, SPD, FX L/A, PoE, DUP | Max PoE Power | 30W |

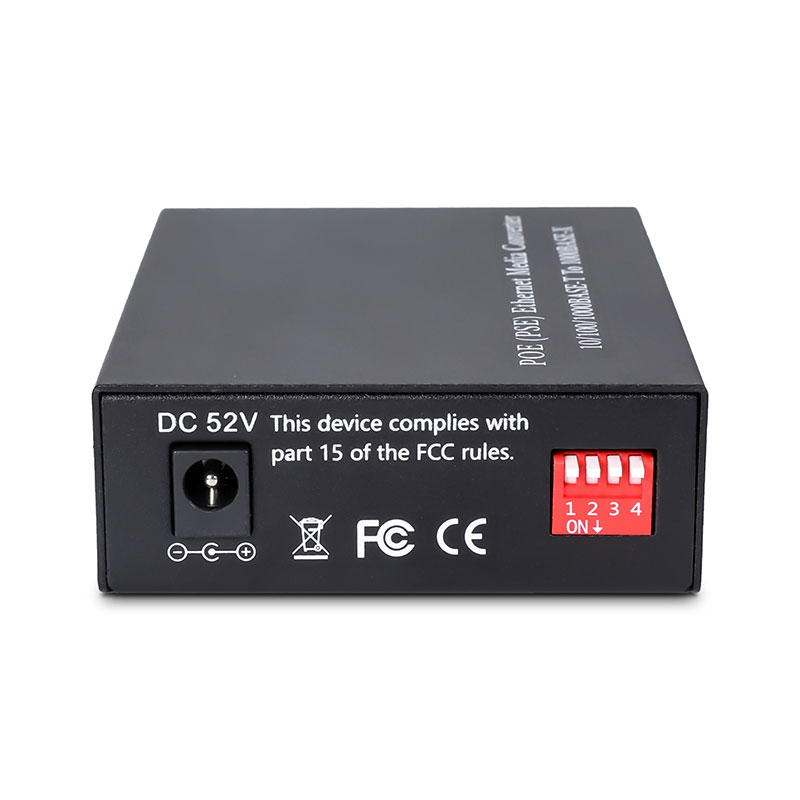

| DIP Switch | LFP / ALS / FX Reset / FX100M | Protection Grade | IP30 Aluminum Case |
| Transmission Mode | Store-and-Forward | Jumbo Frame | 9k |
| MTBF (hrs) | >100,000Hrs | Dimensions (HxWxD) | 1.02” × 2.80” × 3.70” (26 × 71 × 94mm) |
| Operating Temperature | 0°C to 50°C | Warranty | 3 Years |
| Relative Humidity | 5%~90% (Non-condensation) | Input Power | DC 52V |
