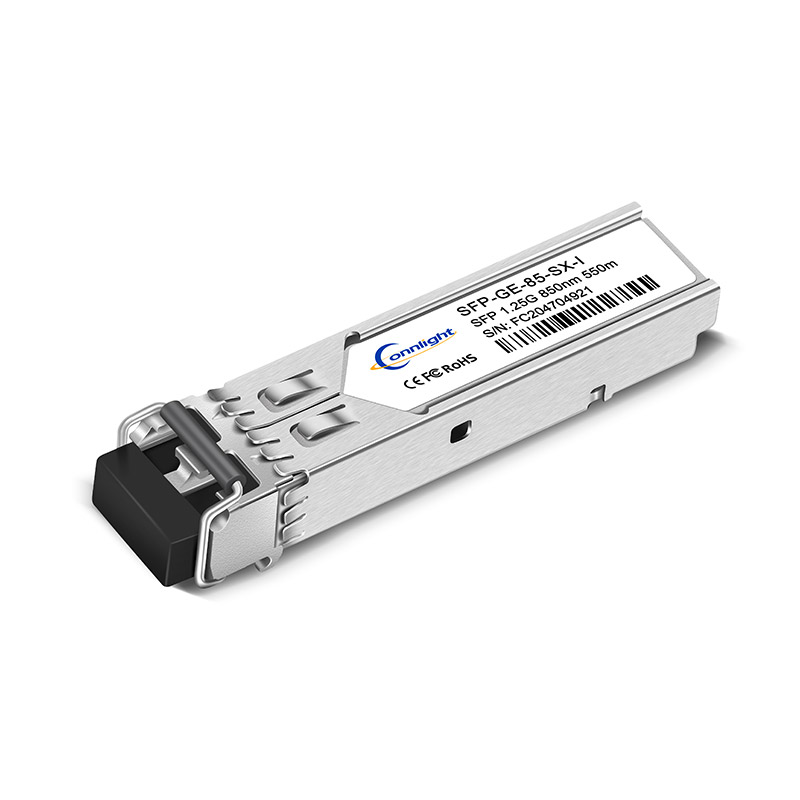

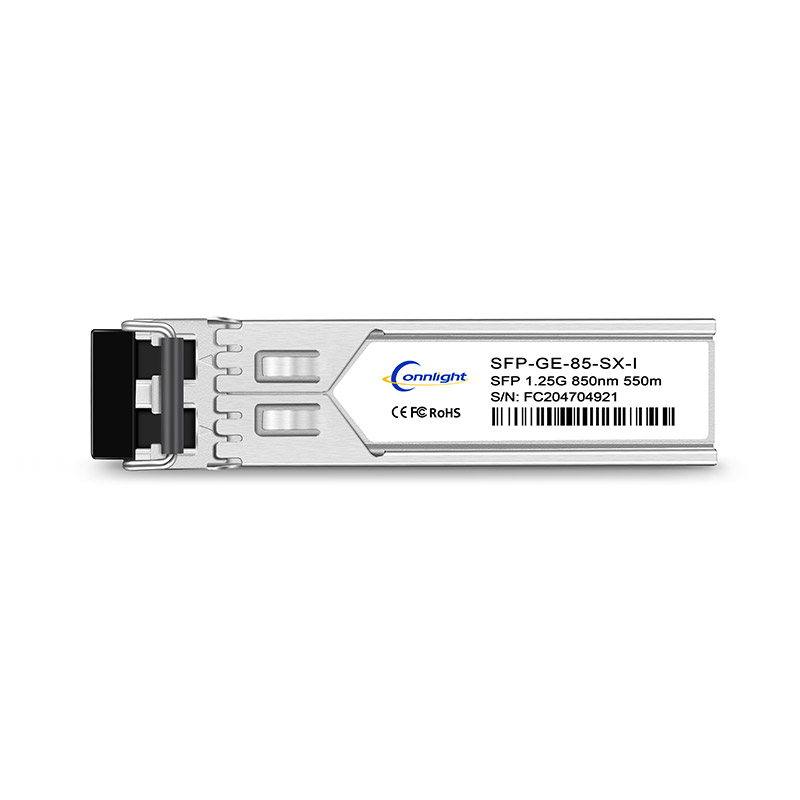

1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module (Industrial)

$7.00

  • 100% OEM Compatible
  • 30-Day Easy Return
  • 5-Year Warranty
SKU: 70578 Category:
Description

1000Base SFP SX Transceiver Module (850nm MMF 550m LC DDM Industrial)

The 1000Base SFP SX transceivers are high-performance, cost-effective modules supporting a data rate of 1.25Gbps and 550m transmission distance and support up to 550m link lengths over LC duplex MMF fiber. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface cards (NICs), etc.

Product Details

P/NSFP-GE-85-SX-IVendor NameConnlight
Form FactorSFPMax Data Rate1.25Gbps
Wavelength850nmMax Distance550m over OM2 MMF
ConnectorDuplex LCTransmitter Type850nm VCSEL
Cable TypeMMFReceiver TypePIN
TX Power-9.0~0dBmReceiver Sensitivity< -18.0dBm
ProtocolsSFF-8472 MSA Compliant, IEEE 802.3ah-2004Operation Temperature-40 to 85°C (-40 to 185°F)

Quality Assurance

Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Certification

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

Test equipment
