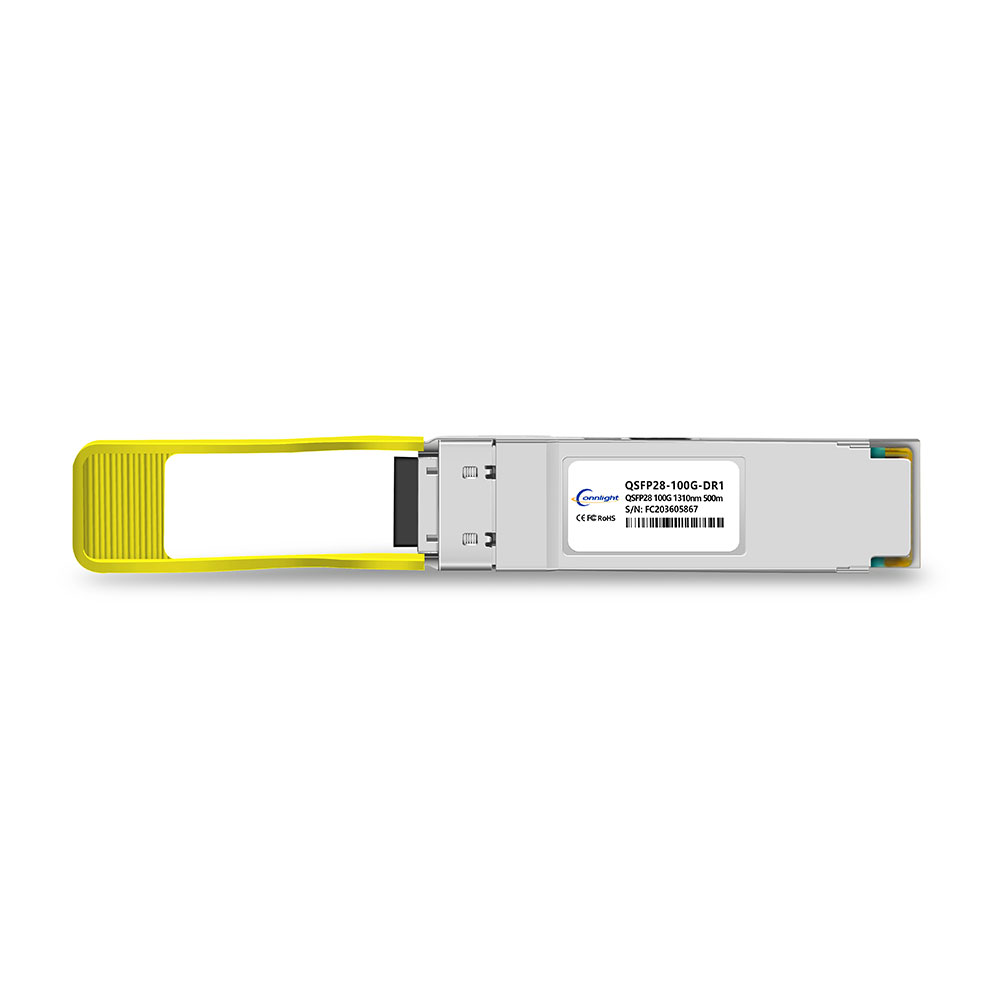

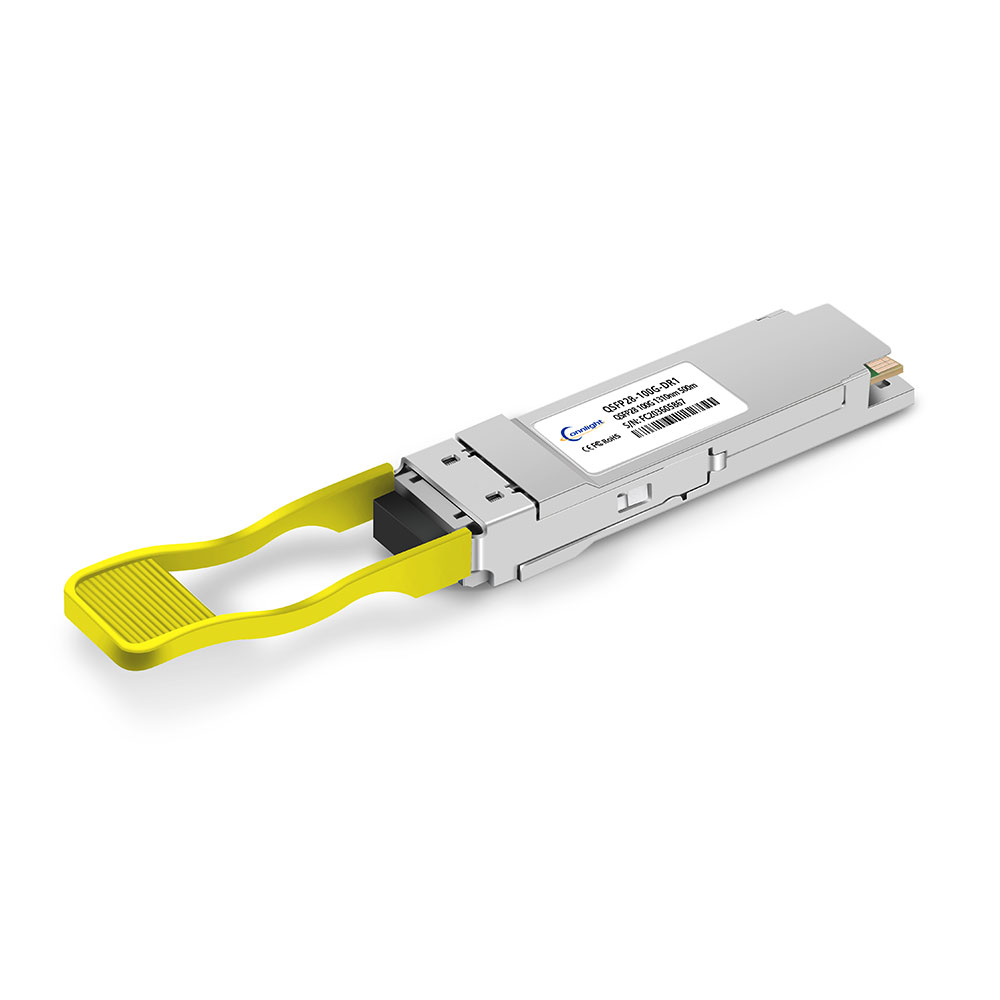

100GBASE-DR QSFP28 Single Lambda 1310nm 500m DOM Duplex LC/UPC SMF Transceiver Module
$175.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description
100G QSFP28 PAM4 Single Lambda DR Optical Transceiver (1310nm SMF 500m LC with FEC DDM), Cisco QSFP-100G-DR-S Compatible
The 100Gbase DR incorporates one channel optical signal, on 1310nm center wavelength, operating at a 50Gbaud data rate. A DSP-based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signals. The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and the optical interface is compliant with IEEE 802.3cd and 100G Lambda MSA with a Duplex LC connector. The module has a maximum power consumption of 3.5W.
Product Details
| P/N | QSFP28-100G-DR1 | Vendor Name | Connlight |
| Form Factor | QSFP28 | Max Data Rate | 100Gbps Single Lambda |
| Wavelength | 1310nm | Max Distance | 500m |
| Connector | Duplex LC | Transmitter Type | EML |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -2.4~+4.0dBm | Receiver Sensitivity | <-4.4dBm |
| DDM Support | YES | FEC Support | YES |
| Protocols | IEEE802.3cd 100GBASE-DR, 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
