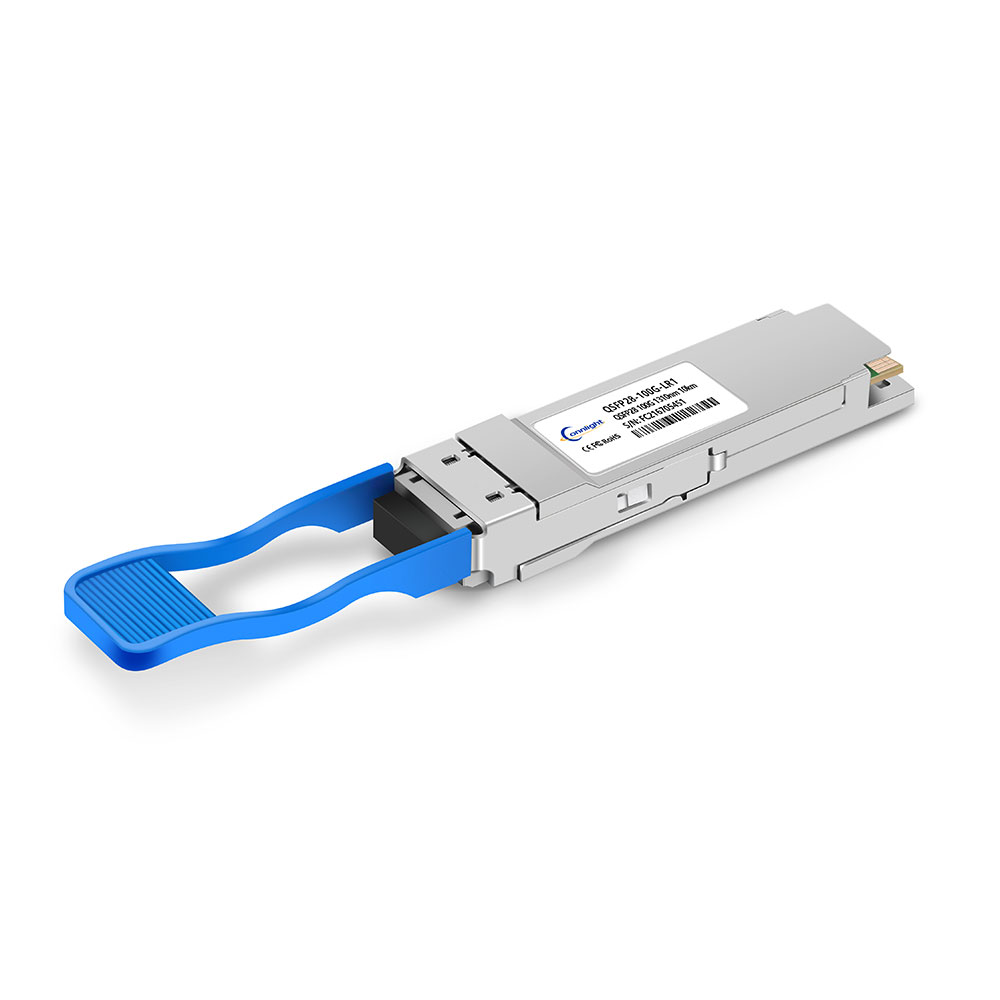

100GBASE-LR QSFP28 Single Lambda 1310nm 10km DOM Duplex LC/UPC SMF Transceiver Module

$290.00

  • 100% OEM Compatible
  • 30-Day Easy Return
  • 5-Year Warranty
SKU: 62192 Category:
Description

100G QSFP28 PAM4 Single Lambda LR Optical Transceiver (1310nm 10km LC SMF with FEC DDM), Cisco QSFP-100G-LR-S Compatible

The module incorporates one channel optical signal, on 1310nm center wavelength, operating at a 50Gbaud data rate. A DSP-based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signals. Also, a 4-channel re-timer and FEC block are integrated into this DSP. It is compliant with IEEE 802.3cd, QSFP28 MSA, and 100G Lambda MSA.

Product Details
P/NQSFP28-100G-LR1Vendor NameConnlight
Form FactorQSFP28Max Data Rate100Gbps Single Lambda
Wavelength1310nmMax Distance10km
ConnectorDuplex LCTransmitter TypeEML
Cable TypeSMFReceiver TypePIN
TX Power-1.4~+4.5dBmReceiver Sensitivity<-4.5dBm
DDM SupportYESFEC SupportYES
Protocols100G Lambda MSA 100G-LR, 100G EthernetOperation Temperature0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Certification

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

Test equipment
