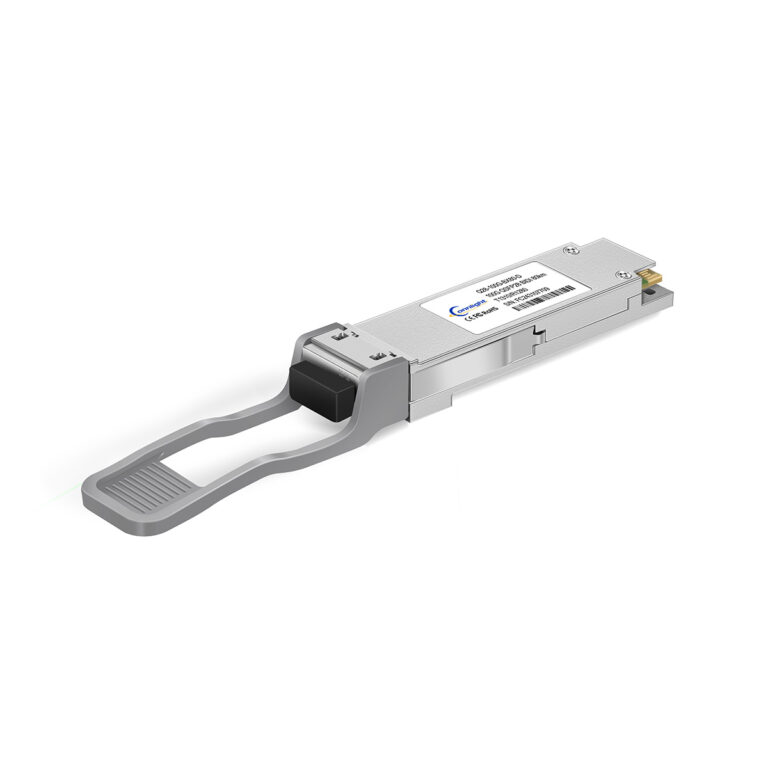

100GBASE-BX80-D BiDi 80km P1
QSFP28 100GBASE-BX80-D BiDi 1310nm-TX/1280nm-RX 80km DOM Simplex LC/UPC SMF Optical Transceiver Module $2,600.00
Back to products
10G DWDM SFP+ 40km Transceiver Industrial
10G DWDM SFP+ C17-C61 100GHz 40km DOM LC SMF Transceiver Module (Industrial) $170.00

QSFP28 100GBASE-BX80-U BiDi 1280nm-TX/1310nm-RX 80km DOM Simplex LC/UPC SMF Optical Transceiver Module

$2,600.00

  • 100% OEM Compatible
  • 30-Day Easy Return
  • 5-Year Warranty
Add to wishlist
SKU: 70571 Category:
Description

100GBASE-BX80-U BiDi 1280nm-TX/1310nm-RX 80km DOM Simplex LC/UPC SMF Optical Transceiver Module

The compatible 100G BiDi ZR4 QSFP28 transceiver supports 100GBASE-BX throughput up to 80km over a single strand of SMF fiber. This bidirectional module contains a 4-lane optical transmitter and a 4-lane optical receiver. It uses 1295/1300/1304/1309nm wavelengths on the transmitter side and 1273/1277/1282/1286nm wavelengths on the receiver side. That allows the network operator to double the transmission capacity without deploying new fiber. However, these BiDi QSFP28 transceivers must be paired with another transceiver or network appliance that operates on complementary wavelengths. This 100G BiDi transceiver is suitable for fiber connectivity in data centers, high-performance computing networks, enterprise cores, and service provider applications.

Specification

  Compatible OEM Part100G-QSFP-BX80-U  ManufacturerConnlight
  Manufacturer Part#Q28-100G-BX80-U  Form FactorQSFP28 BIDI
  Data Rate100 Gbps (4x 25G NRZ)  Wavelength1273.55/1277.89/1282.26/1286.66nm-TX
1295.56/1300.05/1304.58/1309.14nm-RX
  Media TypeSMF  Max Distance80 km
  Transmitter Type4 x LAN WDM EML  Receiver TypeSOA+PIN
  Transmitter Power2.0 ~ 4.5 dBm (Each Lane)  Receiver Sensitivity< -26.0 dBm (Each Lane)
  Extinction Ratio> 6.0 dB  Receiver Overload> -7.0 dBm
  ConnectorLC Simplex  Max Power Consumption5.5 W
  DDM/DOMYes  ComplianceRoHS, CE, REACH
QSFP28 MSA, SFF-8436, SFF-8665, SFF-8636
  EnvironmentOperating Temperature: 0~70 °C
Storage Temperature: -40~85 °C
Operating Humidity: 5%~85%
Storage Humidity: 5%~95%		  Application100G Ethernet transmission
Infiniband FDR, EDR
Proprietary High-Speed Interconnections
High-performance computing clusters
Fibre Channel
  Shipping Weight0.07 kg  Dimensions (L x W x H)118.3 x 18.4 x 8.5 mm
When using this 100G BiDi QSFP28 ZR4 transceiver in short-distance transmission, please add an LC fiber attenuator  (≥12dB) to avoid receiver damage and overload.
