100GBASE-ESR4 QSFP28 850nm 300m OM4 DOM MPO-12/UPC MMF Transceiver Module
$80.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description

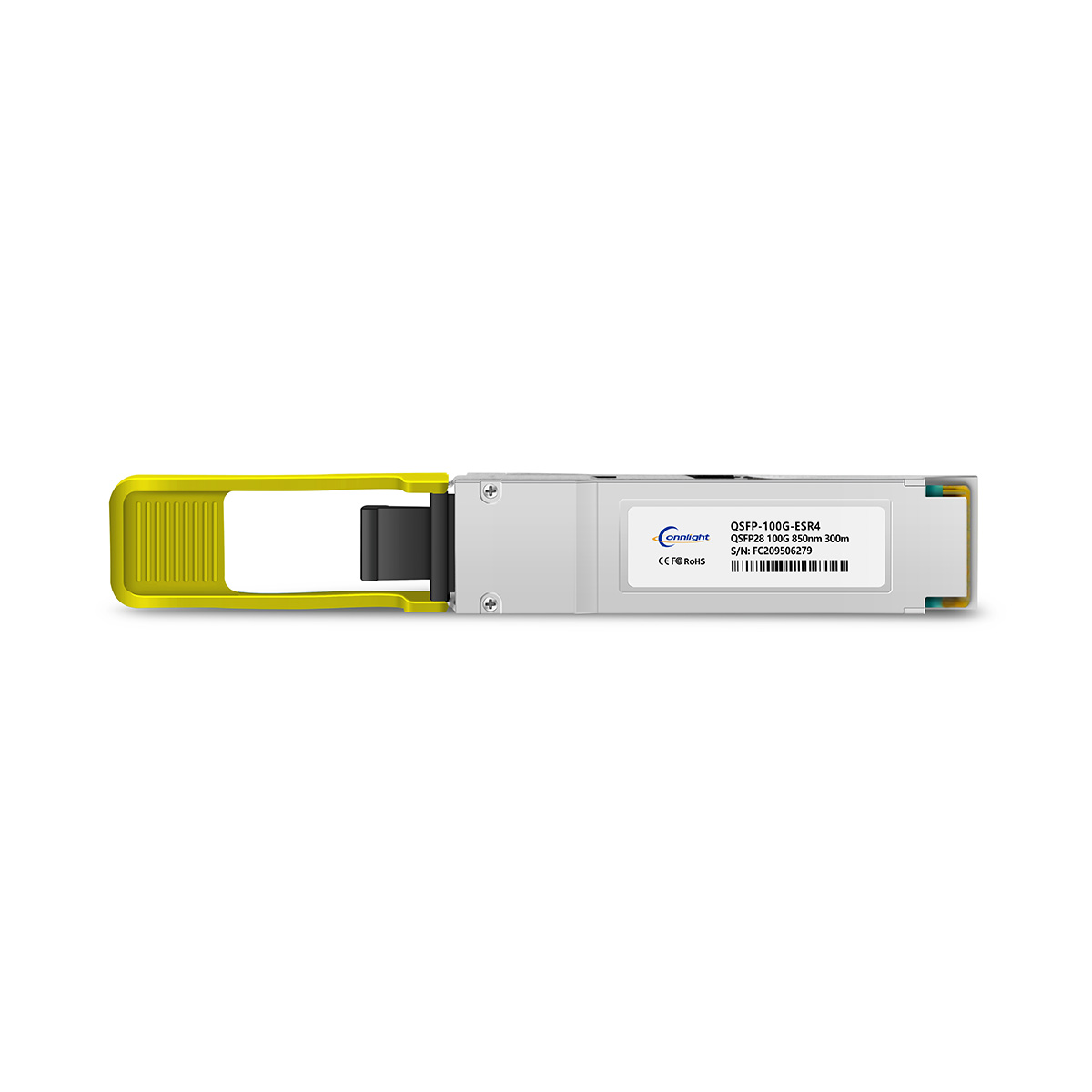

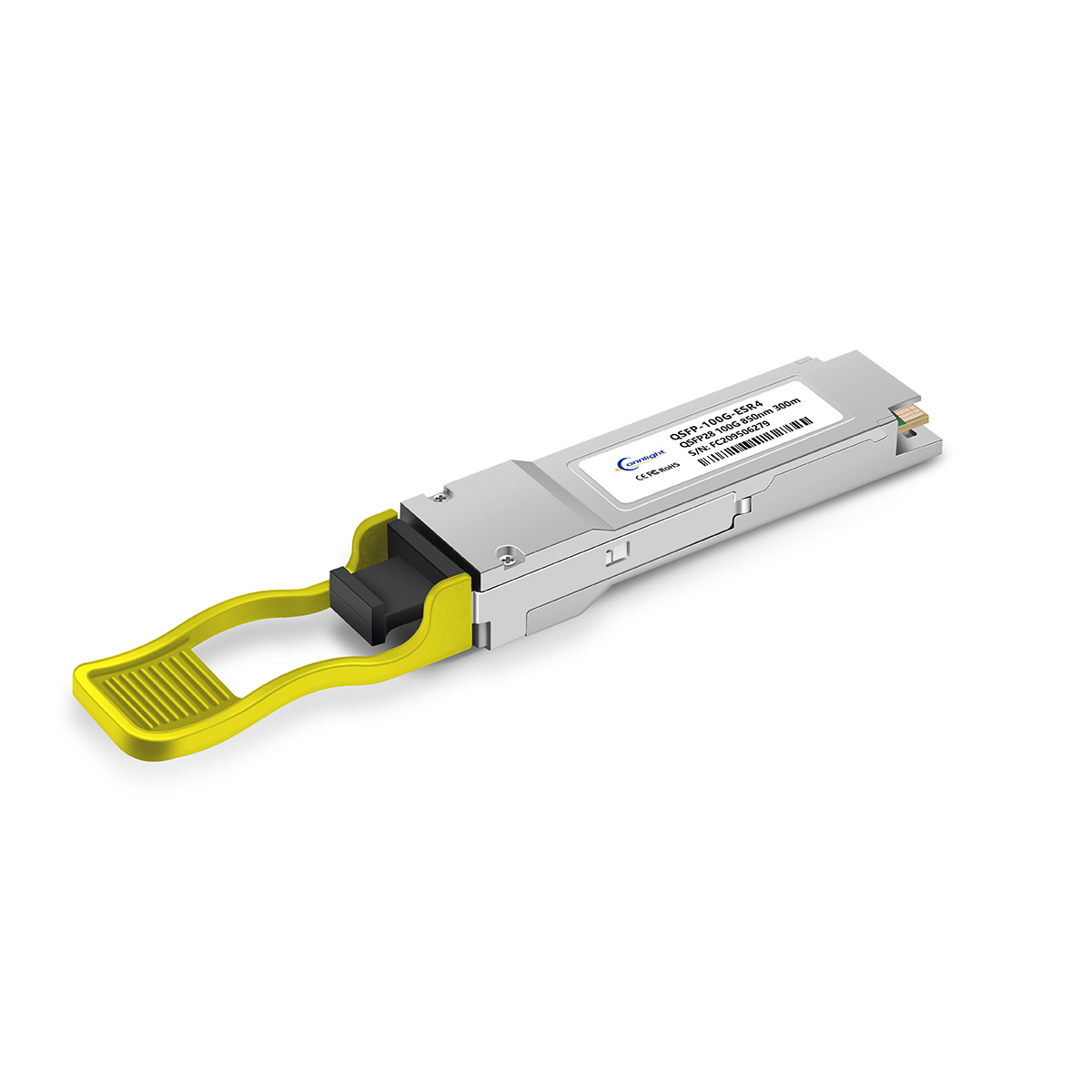

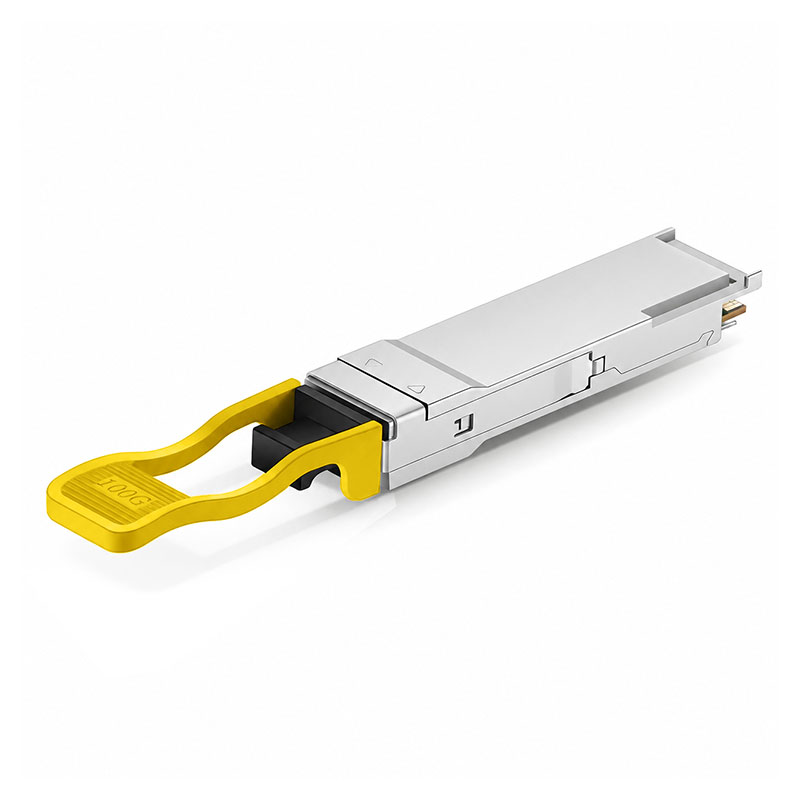

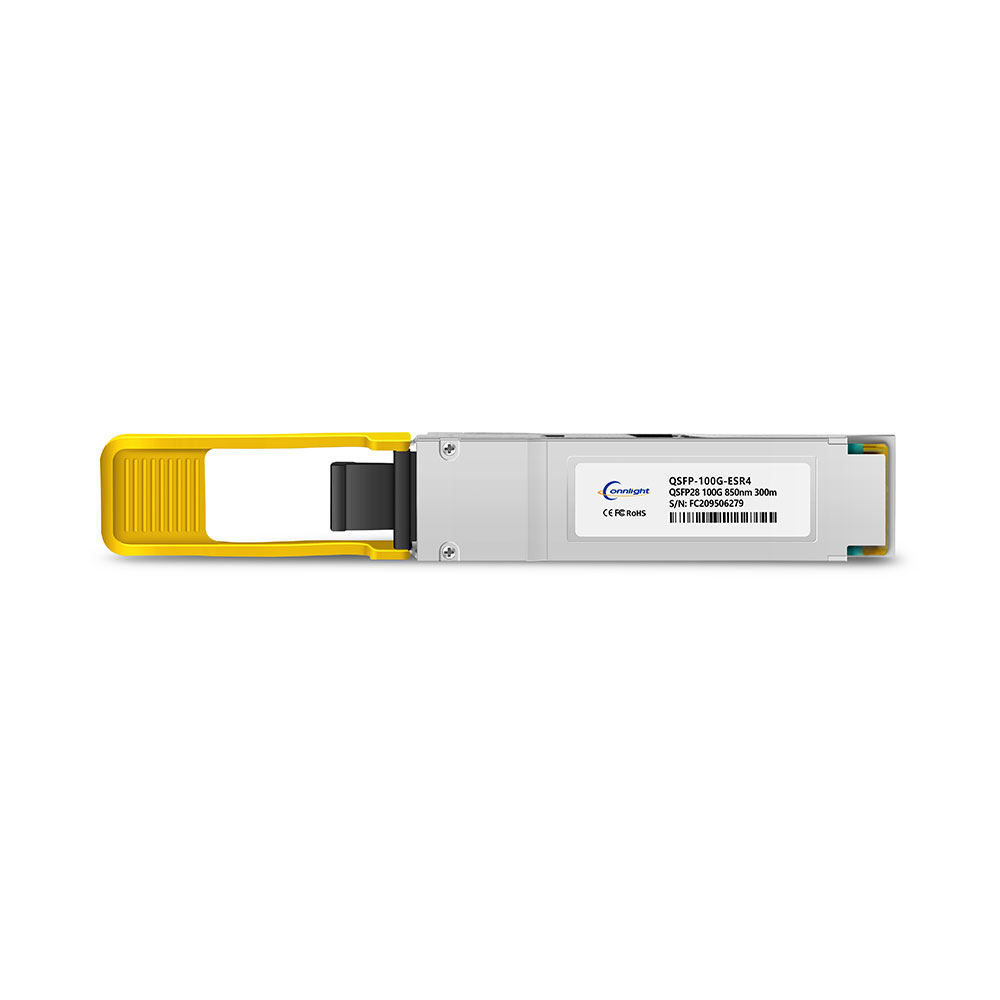

100G QSFP28 ESR4 Transceiver Module (850nm MMF 300m MTP/MPO DDM)
The 100G QSFP28 SR4 transceiver modules are designed for 100G Ethernet links over multimode fiber. They are compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostic functions are available through the QSFP28 MSA-specified I2C interface.
Product Details
| P/N | QSFP-100G-ESR4 | Vendor Name | Connlight |
| Form Factor | QSFP28 | Max Data Rate | 103.1Gbps |
| Wavelength | 850nm | Max Distance | 200m on OM3/300m on OM4 |
| Connector | MTP/MPO-12 | Transmitter Type | 850nm VCSEL |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -8.4~+2.4dBm | Receiver Sensitivity | <-10.3dBm |
| Protocols | 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
