100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 10km DOM Duplex LC SMF Transceiver
$280.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description

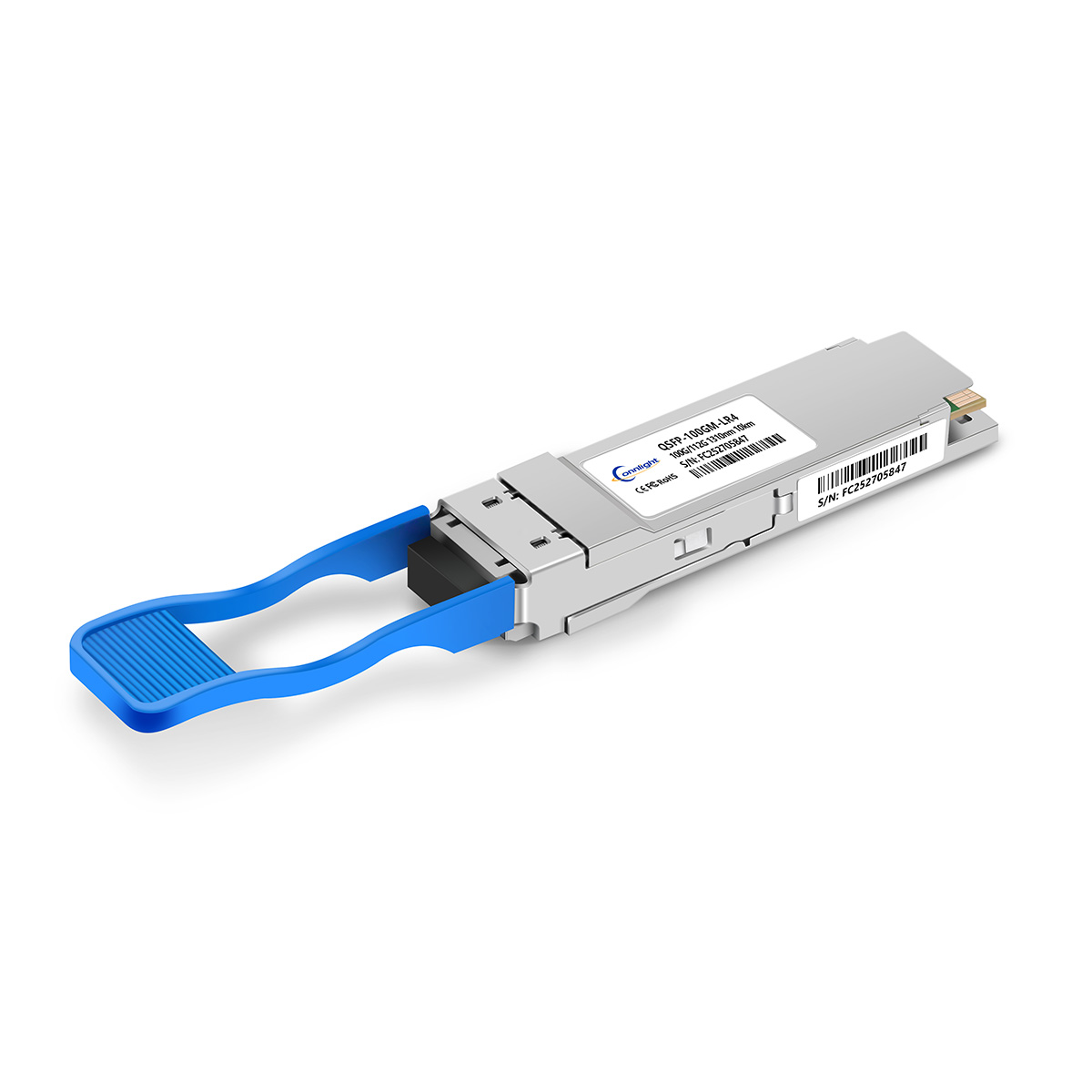

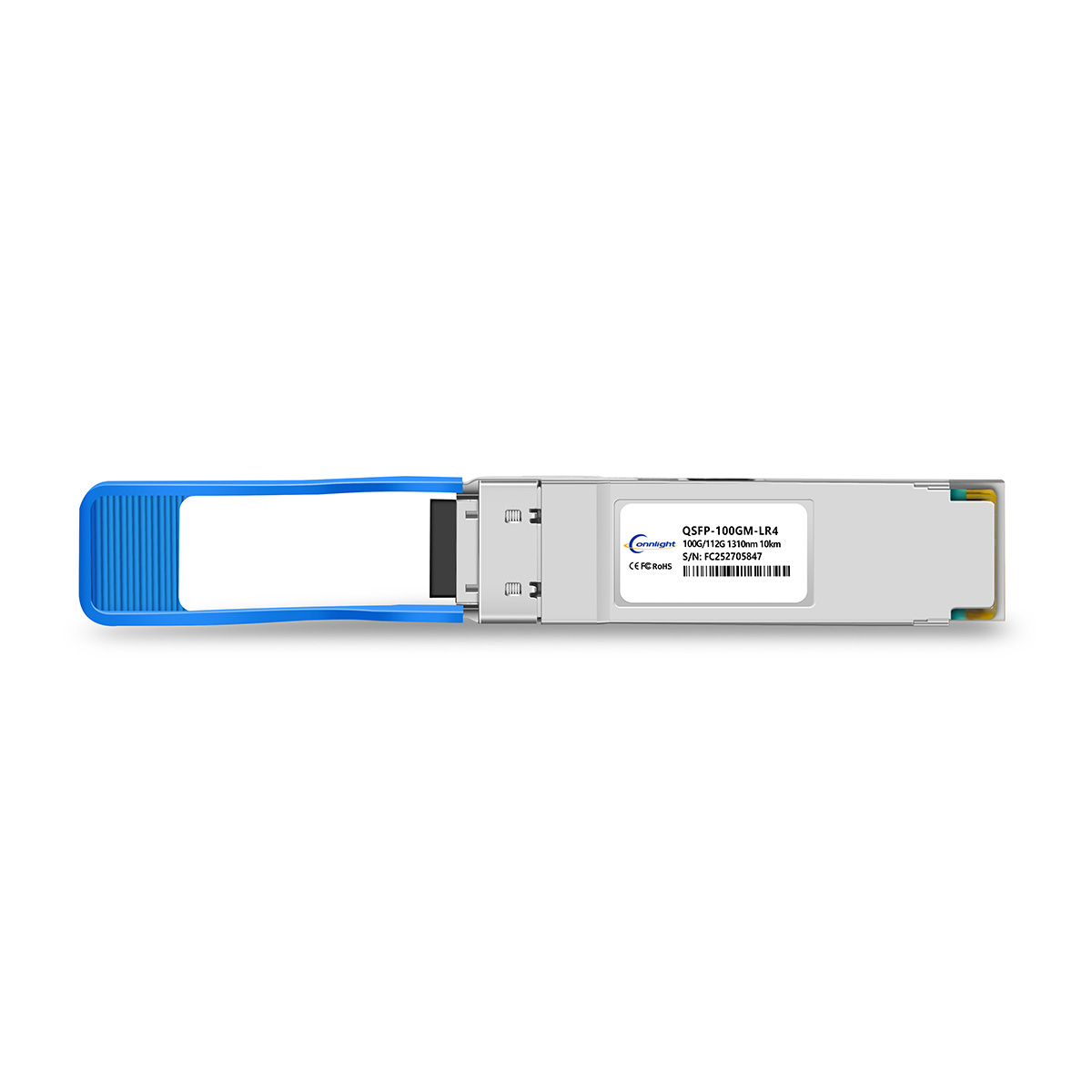

QSFP-100/112G-LR4 Compatible Dual Rate 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
The dual rate QSFP-100/112G-LR4 compatible QSFP28 optical transceiver module supports 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 10km over single-mode fiber (SMF) via duplex LC connectors. Connlight QSFP-100/112G-LR4 module has great reliability, airtightness, and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standards. Digital diagnostics functions are also available via the I2C interface. The module is capable of 100G Ethernet, 112G OTN OTU4, telecom, service provider applications, and 5G wireless networks.
| Part Number | QSFP-100GM-LR4 | Vendor Name | Connlight |
| Form Factor | QSFP28 | Data Rate | Dual Rate 103.1Gbps and 112Gbps |
| Wavelength | 1310nm | Distance | 10km |
| Connector | Duplex LC | Cable Type | OS2 SMF |
| Transmitter | 4 x LAN WDM DML TOSA | Receiver Type | 4 x PIN ROSA |
| TX Power(100G) | -4.3~4.5dBm | Receiver Sensitivity(100G) | <-8.6dBm |
| Power Consumption | ≤3.5W | Temperature | 0 to 70°C (32 to 158°F) |
| DDM | Support | Bit Error Ratio (BER) | 1.00E-12 |
| Protocols | QSFP28 MSA Compliant, SFF-8636 | Warranty | 5 Years |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
