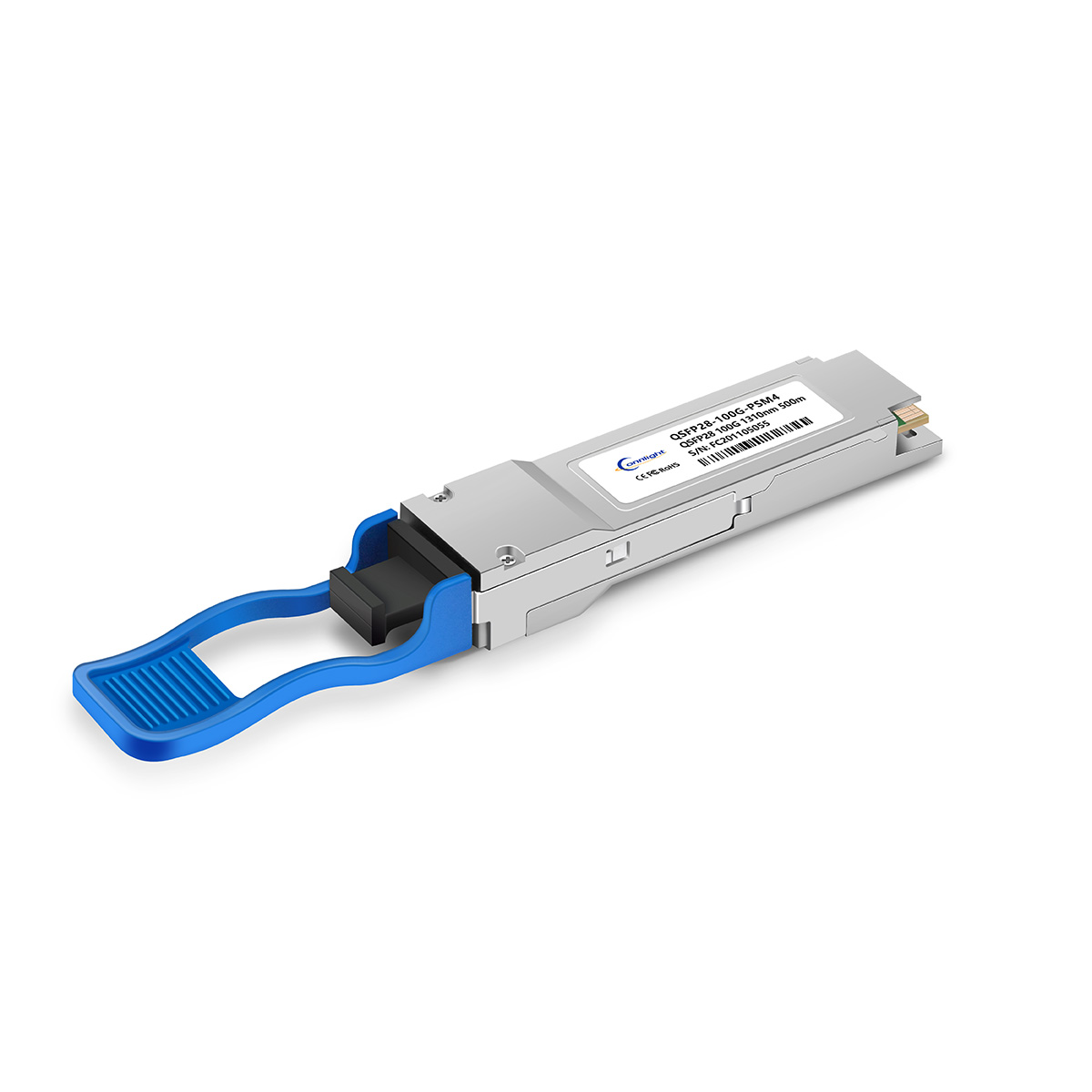

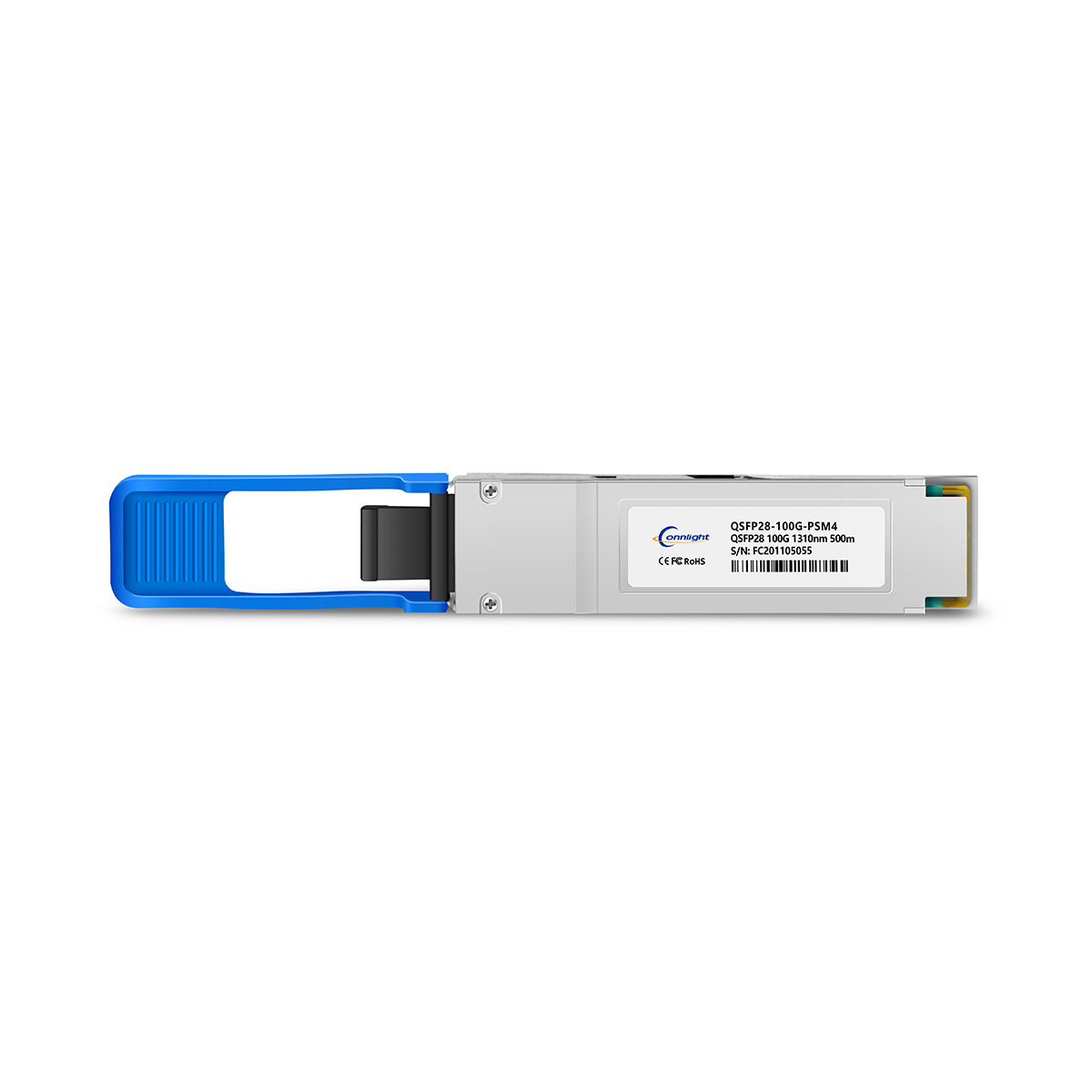

100GBASE-PSM4 QSFP28 1310nm 500m DOM MPO-12/APC SMF Transceiver Module

$180.00

  • 100% OEM Compatible
  • 30-Day Easy Return
  • 5-Year Warranty
SKU: 62117 Category:
Description

100G QSFP28 PSM4 Transceiver Module (1310nm SMF 500m MTP/MPO DDM), QSFP28-100G-PSM4-S Compatible

This 100G QSFP28 PSM4  is a parallel 100Gb/s quad small form-factor pluggable (QSFP28) optical module. It increases port density and saves total system costs. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 2km of single-mode fiber.

Product Details

 P/NQSFP-100G-PSM4Vendor NameConnlight
Form FactorQSFP28Max Data Rate103.1Gbps
Wavelength1310nmMax Distance500m
ConnectorMTP/MPO-12Transmitter Type4x DFB
Cable TypeSMFReceiver TypePIN
TX Power-5.5~+2.0dBmReceiver Sensitivity<-10.2dBm
Protocols100G Ethernet, MSA CompliantOperation Temperature0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Certification

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

Test equipment
