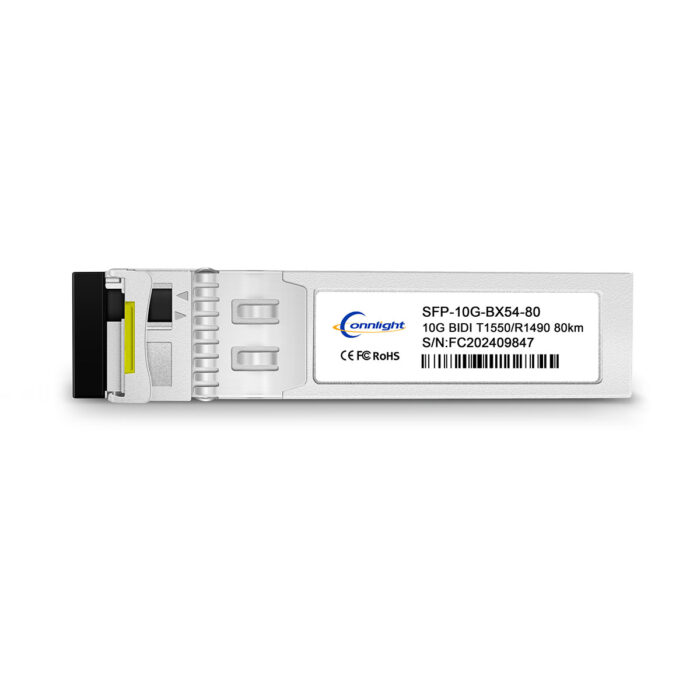

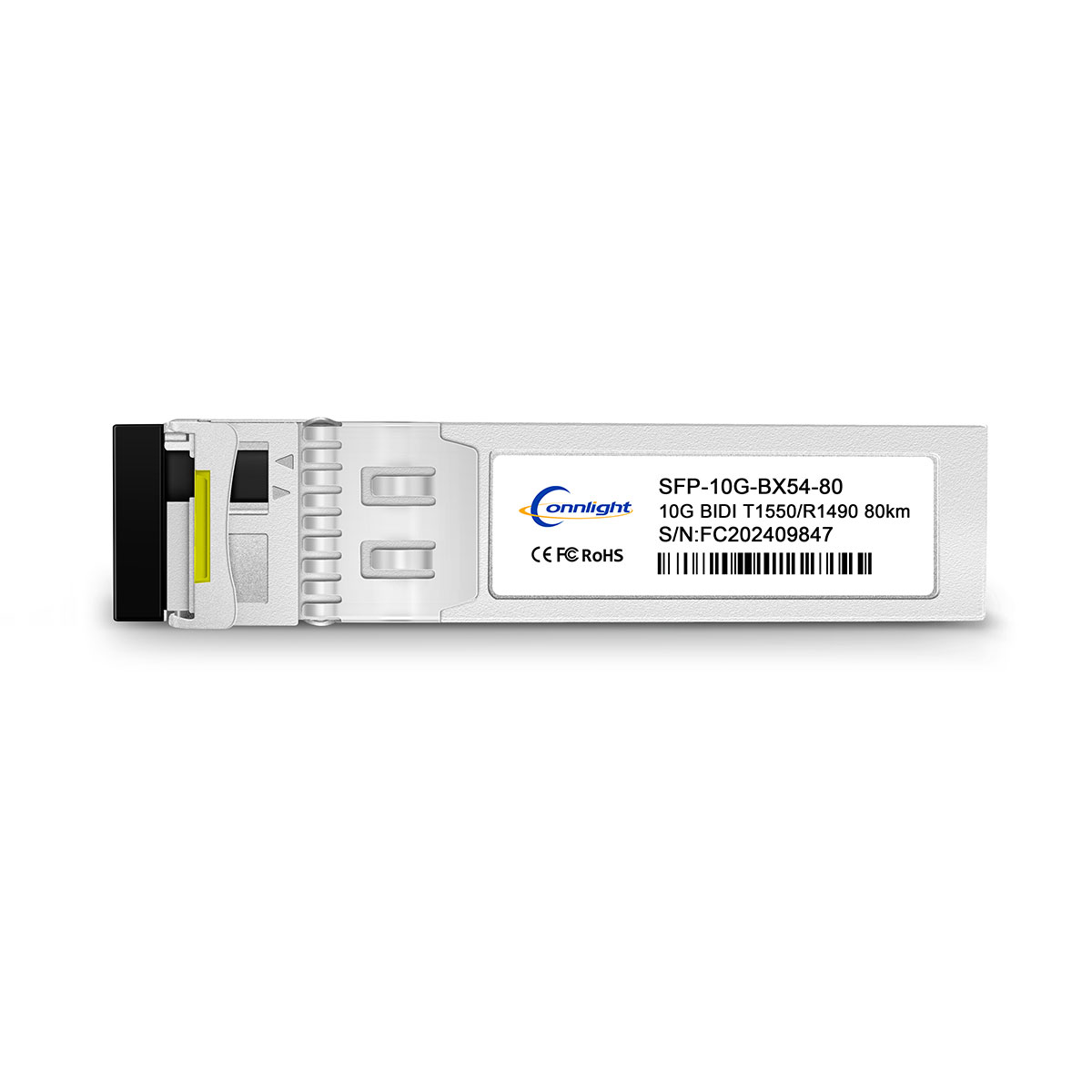

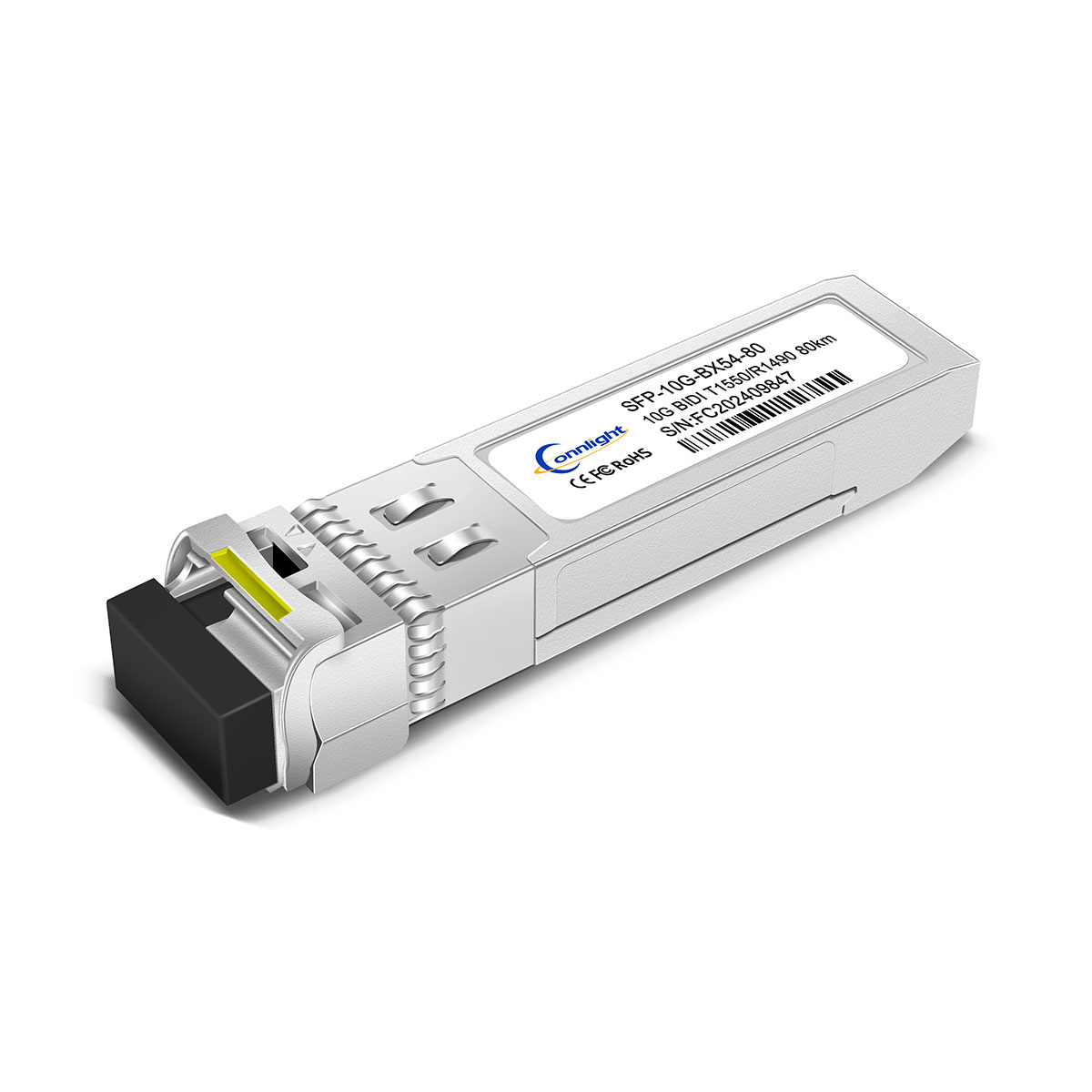

10GBASE-BX80-D BiDi SFP+ 1550nm-TX/1490nm-RX 80km DOM LC SMF Transceiver Module

$290.00

  • 100% OEM Compatible
  • 30-Day Easy Return
  • 5-Year Warranty
SKU: 62250 Category:
Description

10G BX SFP+ BIDI Transceiver Module (TX1550nm/RX1490nm SMF 80km LC DDM)

10G BX SFP+ BIDI transceiver supports up to 80km over OS2 SMF via an LC simplex connector. This transceiver is compliant with SFF-8431 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. It Supports 1550nm EML and 1490nm APD into an LC connector, which allows an 80km link distance over single-mode fiber.

Product Details

P/NSFP-10G-BX54-80Vendor NameConnlight
Form FactorSFP+Max Data Rate10.7Gbps
WavelengthTX1550nm/RX1490nmMax  Distance80km
ConnectorSimplex LCTransmitter Type1550nm EML
Cable TypeSMFReceiver TypeAPD
TX Power0~+4.0dBmReceiver Sensitivity< -22.0dBm
Protocols10G Ethernet, MSA CompliantOperation Temperature0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Certification

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

Test equipment
