10G DWDM SFP+ C17-C61 100GHz 40km DOM LC SMF Transceiver Module
$150.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description

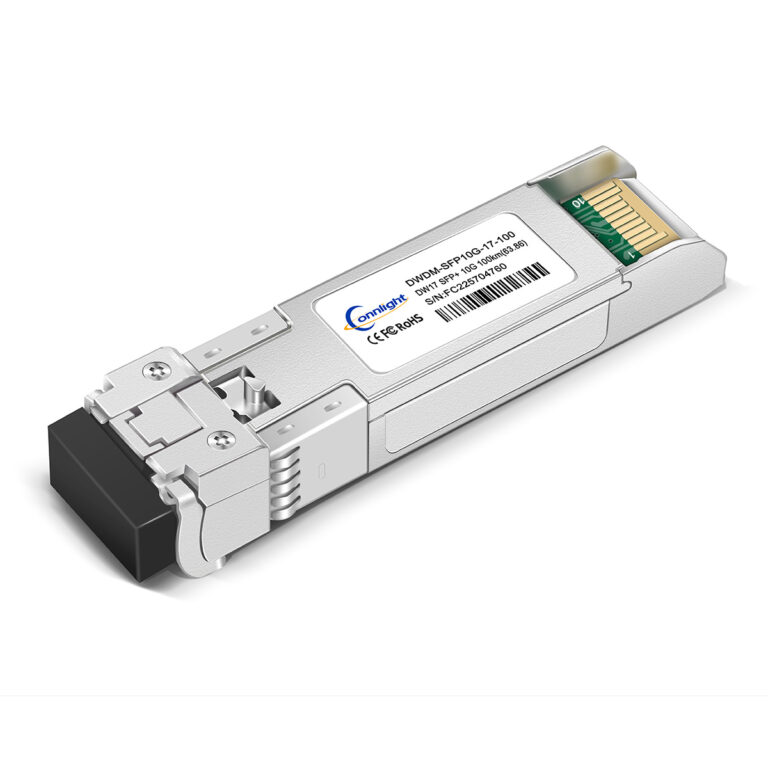

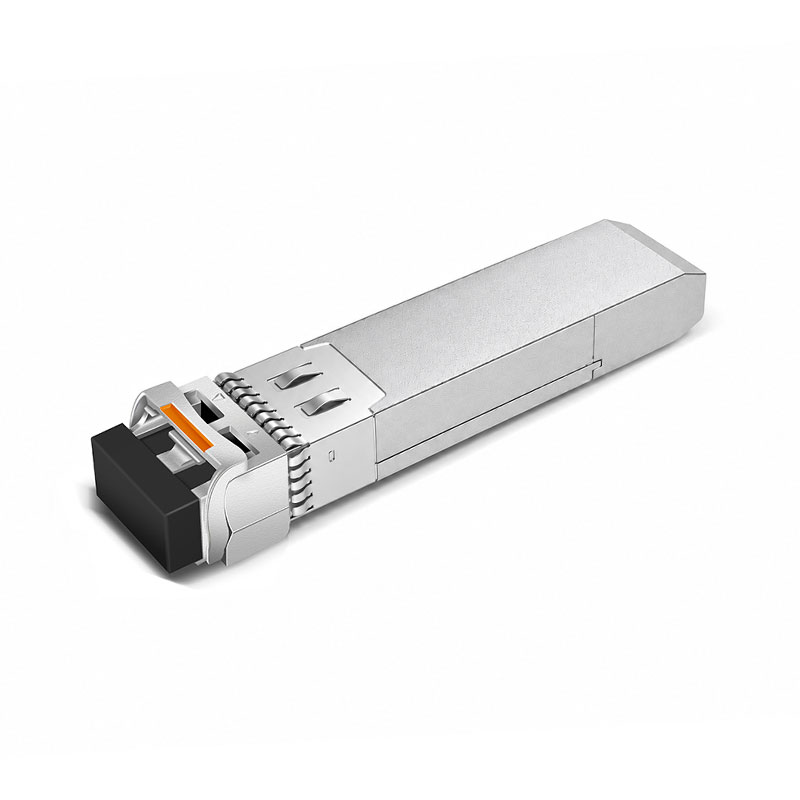

10G DWDM SFP+ Transceiver Module (SMF, C17-C61, 40km, LC, DOM)
| P/N | DWDM-SFP10G-XX-40 | Vendor Name | Connlight |
| Form Factor | SFP+ | Max Data Rate | 10Gbps |
| Wavelength | C17-C61 | Max Cable Distance | 40km |
| Connector | LC duplex | Optical Components | EML DWDM |
| Media | SMF | DOM Support | Yes |
| TX Power | -1~4dBm | Receiver Sensitivity | <-16dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
DWDM Channels to Wavelength Table
| C17 (1563.86nm) | C29 (1554.13nm) | C40 (1545.32nm) | C51 (1536.61nm) |
| C18 (1563.05nm) | C30 (1553.33nm) | C41 (1544.53nm) | C52 (1535.82nm) |
| C19 (1562.23nm) | C31 (1552.52nm) | C42 (1543.73nm) | C53 (1535.04nm) |
| C20 (1561.41nm) | C32 (1551.72nm) | C43 (1542.94nm) | C54 (1534.25nm) |
| C21 (1560.61nm) | C33 (1550.92nm) | C44 (1542.14nm) | C55 (1533.47nm) |
| C22 (1559.79nm) | C34 (1550.12nm) | C45 (1541.35nm) | C56 (1532.68nm) |
| C23 (1558.98nm) | C35 (1549.32nm) | C46 (1540.56nm) | C57 (1531.90nm) |
| C24 (1558.17nm) | C36 (1548.51nm) | C47 (1539.77nm) | C58 (1531.12nm) |
| C25 (1557.36nm) | C37 (1547.72nm) | C48 (1538.98nm) | C59 (1530.33nm) |
| C26 (1556.55nm) | C38 (1546.92nm) | C49 (1538.19nm) | C60 (1529.55nm) |
| C27 (1555.75nm) | C39 (1546.12nm) | C50 (1537.40nm) | C61 (1528.77nm) |
| C28 (1554.94nm) |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
