24 x 1GB RJ45, 4 x 1G/2.5G/10G SFP+, Layer 3 Managed PoE Switch
- Ask for a Quotation
- 5-Year Warranty
Description

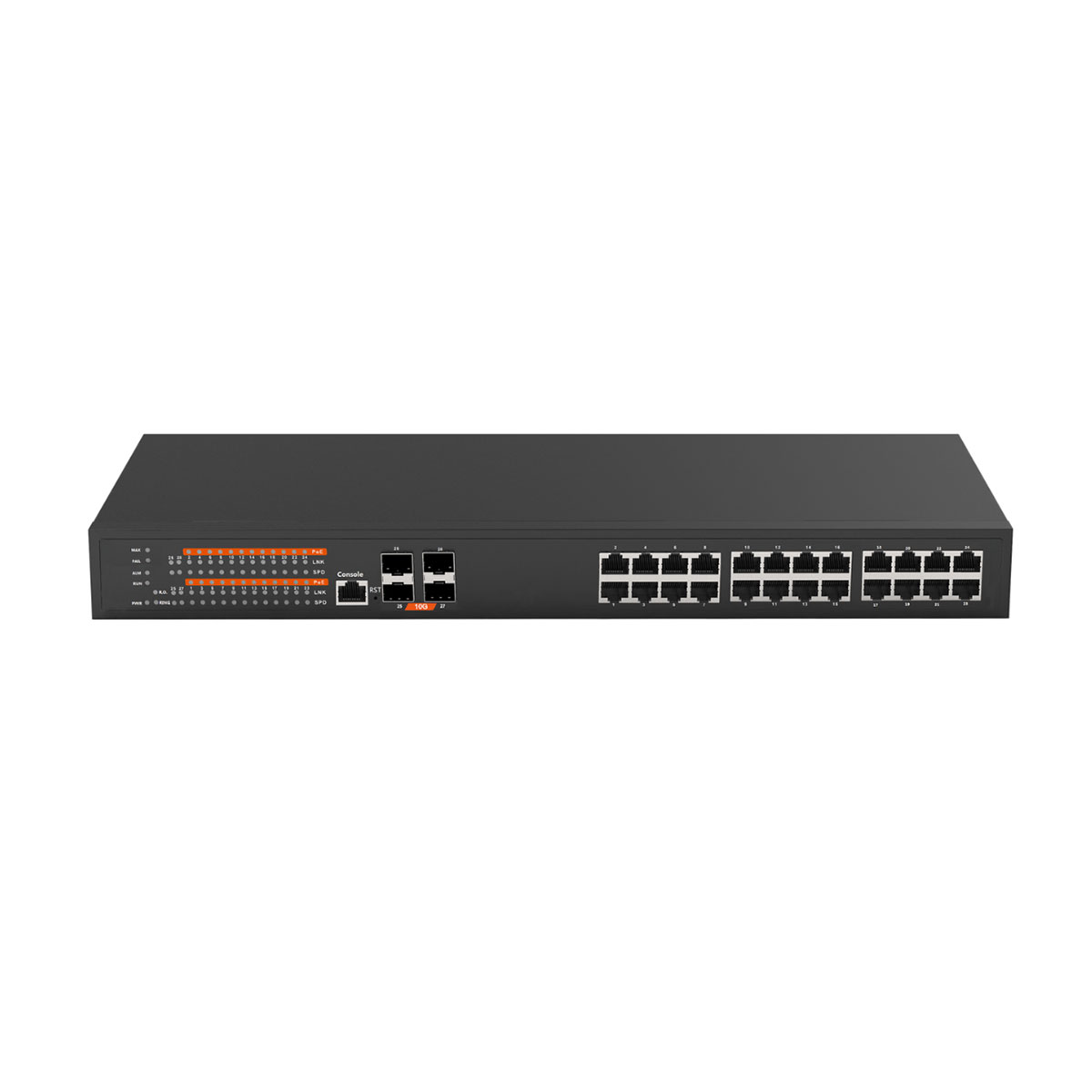

24 x 1GB RJ45, 4 x 10G SFP+, Layer 3 Managed PoE Switch
CCS-8424MP is a Layer 3 Managed Gigabit PoE+ Switch designed to provide full Gigabit access and 10G uplink connectivity for enterprise networks. Equipped with 24×10/100/1000M PoE+ RJ45 ports and 4×10Gigabit SFP+ uplink ports, it delivers high-performance Layer 3 routing, advanced security, comprehensive QoS, and intelligent PoE management capabilities. With a 128Gbps backplane bandwidth, 12Mbits packet buffer, and support for OSPFv2, RIPv1/v2, and Static Routing, the switch ensures reliable and efficient network operation for SMBs, enterprise campuses, surveillance systems, VoIP, and video streaming applications.
Advanced PoE management functions including PoE output control, Smart PoE, PoE scheduling, and PoE Budget Management enable efficient power allocation. The PoE priority mechanism ensures that critical devices continue receiving power when the available power budget becomes insufficient. With up to 600W total PoE power budget, the switch provides a safe, reliable, and cost-effective solution for Power over Ethernet deployments.
Features:
➢ 4×10G SFP+ uplink ports, 24×10/100/1000Base-T IEEE 802.3af/at PoE+ RJ45 ports
➢ IEEE 802.3af/at compliant PoE+, up to 30W power output per port, intelligent detection protects non-PoE devices
➢ Advanced PoE management including PoE output setting, Smart PoE, PoE scheduling, PoE Budget Management and PoE priority control
➢ Layer 3 routing supports OSPFv2, RIPv1/v2 and Static Route
➢ Link Aggregation with LACP for bandwidth expansion and link redundancy
➢ VLAN supports IEEE 802.1Q VLAN, Q-in-Q, Double VLAN, Voice VLAN, Surveillance VLAN and MVR
➢ Redundant network protocols including STP, RSTP, MSTP and ERPSv2
➢ Multicast management supports IGMP Snooping v1/v2/v3 and IGMP Querier v2/v3
➢ QoS supports WRR, WFQ, Strict Priority and Hybrid scheduling modes, with 8 queues per port
➢ ACL supports L2/L3/L4 filtering, MAC-based, IPv4-based and IPv6-based access control
➢ Security features include TACACS+, RADIUS, AAA, IEEE 802.1X authentication, SSH v1/v2, HTTPS/SSL/TLS, DHCP Snooping, Option 43/82, MAC filtering and binding, MAC whitelist, Broadcast Storm Control and DoS protection
➢ Management supports CLI (Console/Telnet), HTTPS Web UI, SNMP v1/v2c/v3, LLDP, LLDP-MED, UDLD, DDM, Syslog, RMON, ARP, DHCP Server/Client, IPv4/IPv6 and Port Mirroring
➢ Time management supports Local Time, SNTP and NTP
➢ Diagnostic and maintenance functions include Port Mirroring, Syslog and Ping
➢ Firmware upgrade, backup and restore via HTTP, TFTP and configuration management functions with Dual Images support
