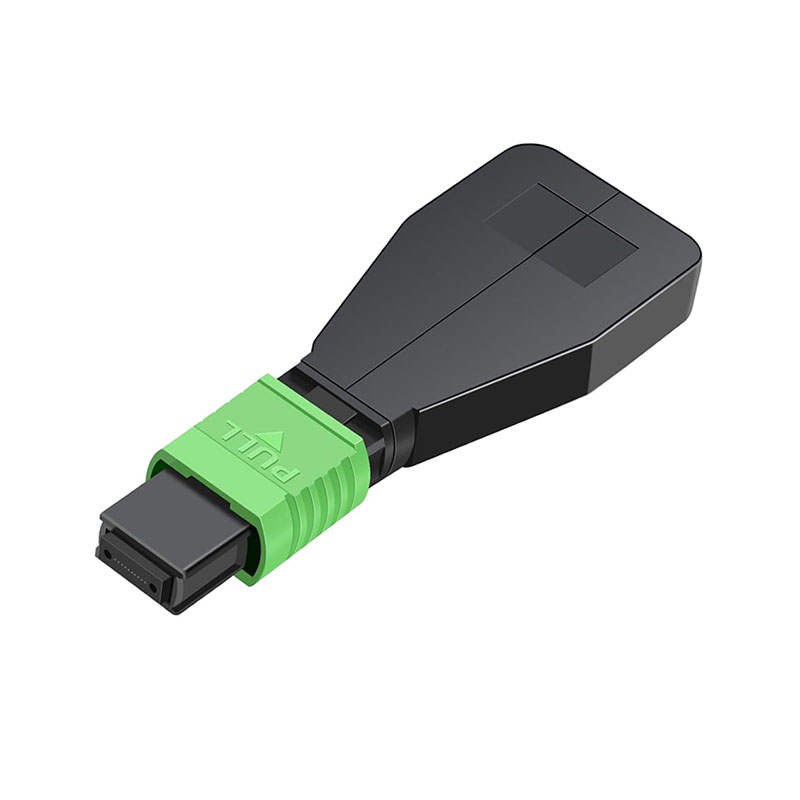

12 Fibers MPO/APC Female 9/125 Single Mode Fiber Loopback Module
MPO loopback modules are used widely within testing environment especially within parallel optics 40/100G networks. Devices allow verification and testing of transceivers featuring MPO interface – 40G PLR4 or 100G PSM4 devices. Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MPO transceivers interfaces. MPO loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MTP trunks/patch leads. Our MTP/MPO loopback adapter is now widely used for optical network equipment self-test, network diagnosis, and test, etc.
| Fiber type | 9/125 OS2 Single-Mode | Fiber connector | MPO Female, APC |
| Return loss | SM>50dB | Insertion loss | ≤0.7dB |
| Durability | ≥500times | Size | 60mm*20mm |
| Operation temperature | -40 to 75°C (-40 to 167°F) | Fiber Count | 12-Fiber |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
