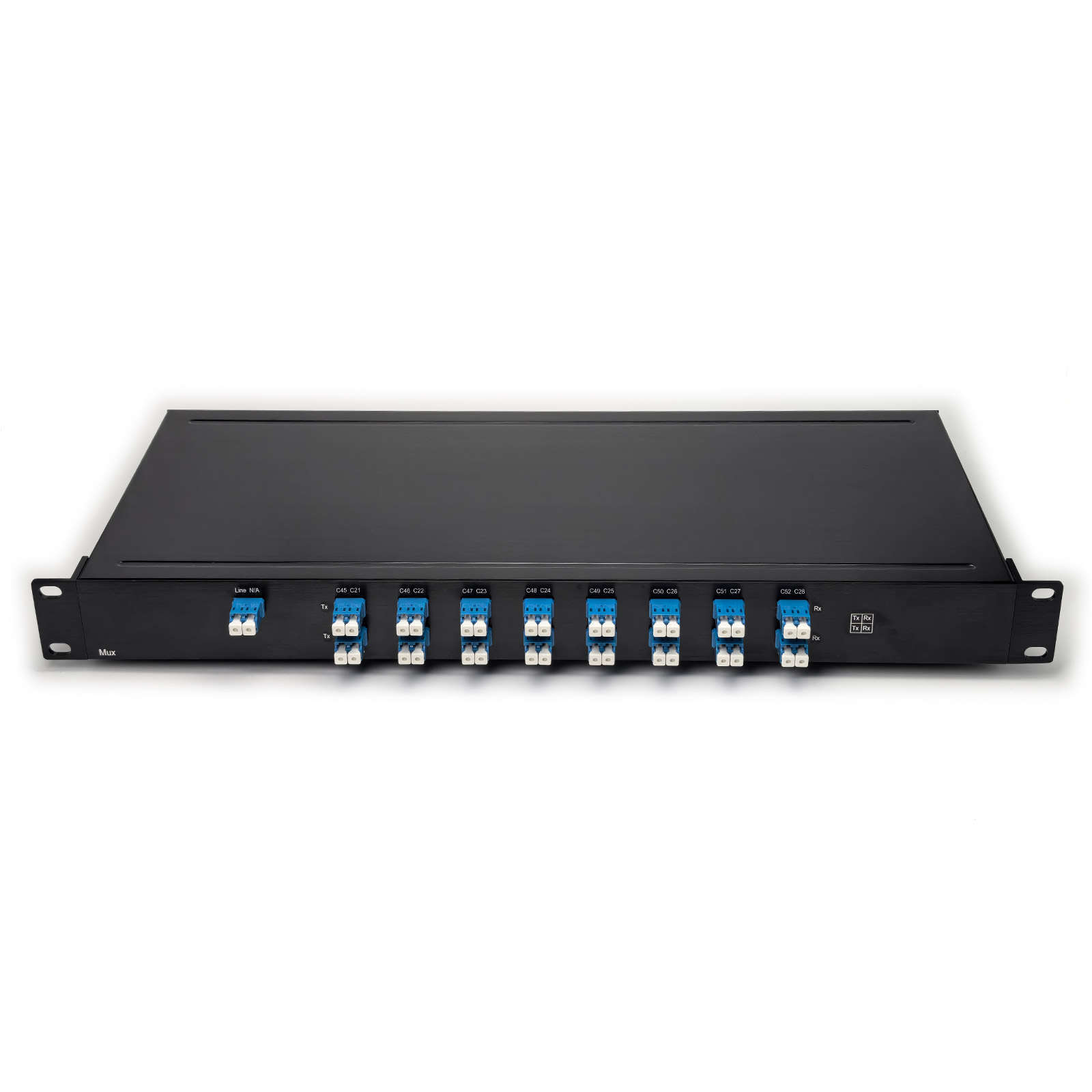

16 Channels C45-C60, LC/UPC, Single Fiber, 100GHz DWDM Mux Demux, Side-B, 1U Rack Mount
$460.00
- Free Technical Support
- 3-Year Warranty & 30-Day Easy Return
Description
16 Channels C45-C60, LC/UPC, Single Fiber DWDM Mux Demux, Side-A, 1U Rack Mount
Single fiber DWDM Mux should be used in pairs, which transmits and receives different wavelengths into a fiber at the opposite direction. Each channel carries data independently from each other, allowing network designers to transport different data rates. It’s protocol and rate transparent supporting such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel across the same fiber link.
| Wavelength | 16 channels RX-C21~C36, TX-C45~C60 | Channel Spacing | 100GHz(0.8nm) |
| Channel Passband | ±0.11nm | Insertion Loss | ≤ 4.3dB (with connectors and adapters) |
| Passband Ripple | ≤ 0.5dB | Isolation | Adjacent channel ≥ 30dB Non-adjacent channel ≥ 40 dB |
| Return Loss | ≥ 40dB | Directivity | ≥ 40dB |
| Polarization Dependent Loss | ≤ 0.5dB | Polarization Mode Dispersion | ≤ 0.1ps |
| Temperature | Operating -10°C~ +70°C Storage -40°C~+85°C | Dimensions (HxWxD) | 44 x 481.8 x 200.0mm |
