1 x 100/1000Base SFP to 1 x 100/1000Base SFP Slot Gigabit Ethernet Mini Unmanaged Media Converter
$62.00
- 3-Year Warranty
- 30-Day Easy Return
Description

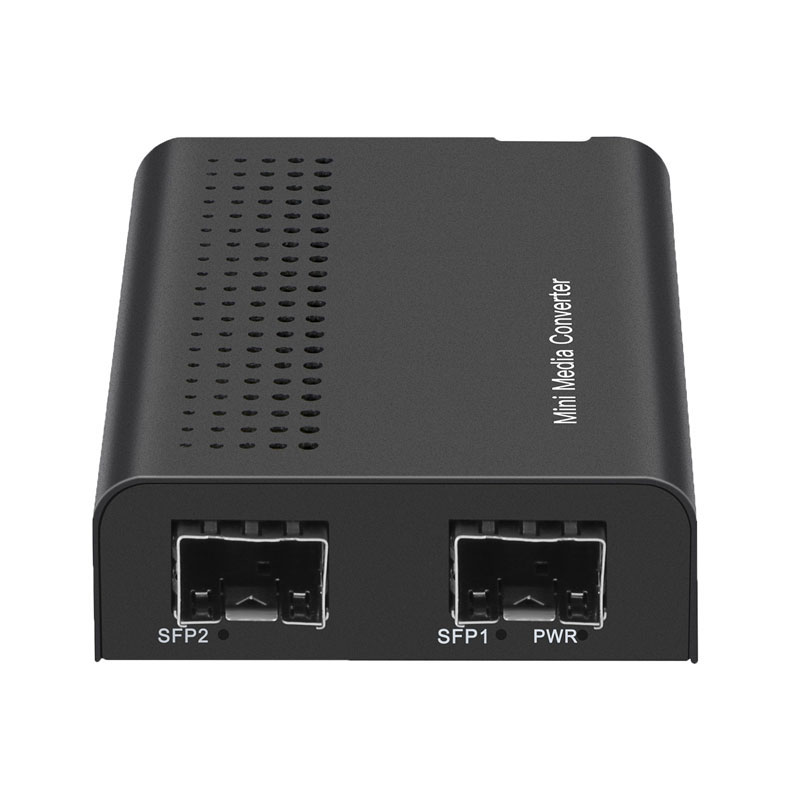

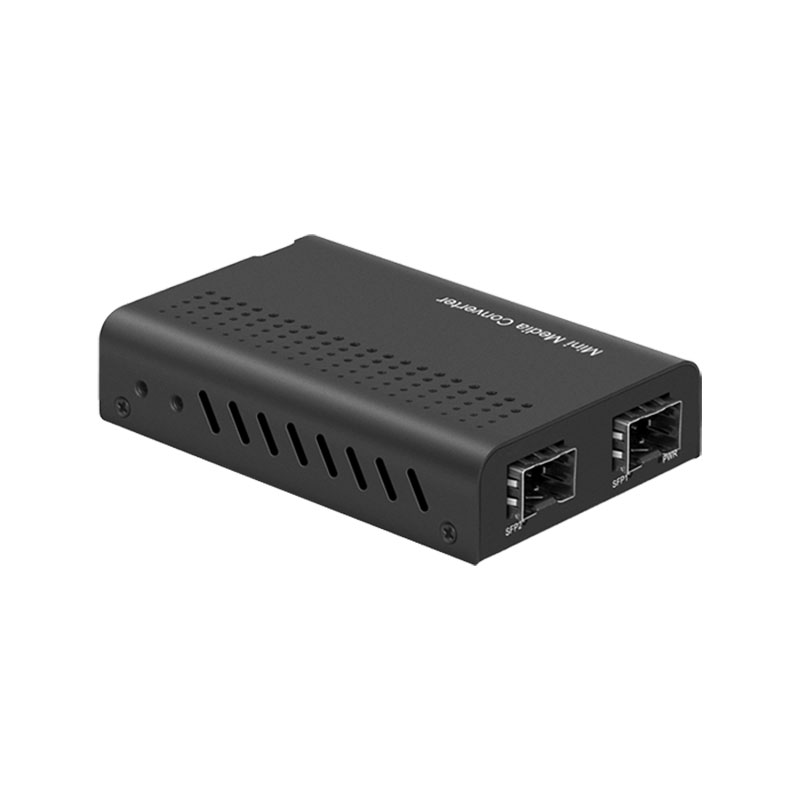

MC-3205-M, Mini 100Base-FX/1000Base-X Fiber Media Converter (SFP to SFP)
This SFP to SFP fiber media converter supports data rates from 100Mbps to 1250Mbps. It supports both multimode and single-mode fiber transmission. The converter features a wide DC power input range, LED indicators for unit and port status monitoring, and a compact housing for easy installation. It supports both standalone deployment and installation in a 1U rack-mount chassis (up to 12 channels).
| PN | MC-3205-M | Ports | 2 x Gigabit SFP Port |
| Cable Type (Fiber) | Multimode 50/125µm, 62.5/125µm Single-mode 9/125µm | Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,IEEE 802.3z, IEEE 802.3x |
| LED Indicators | SFP2,SFP1, PWR | Power Consumption | Full-load<3W |
| Protection grade | IP30 Iron case | Dimensions (HxWxD) | 0.79”x2.36”x3.54” (20x60x90mm) |
| MTBF (hrs) | >50,000Hrs | Operating Temperature | 0°C to 50°C |
| Relative Humidity | 5%~90% (Non-condensation) | Input Power | DC 5-12V |
