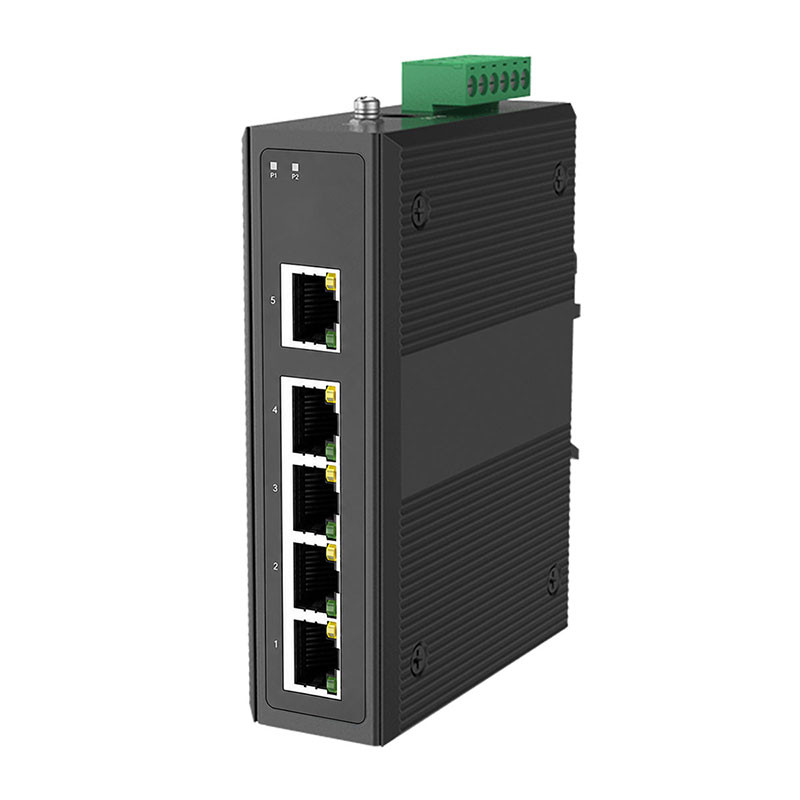

5 x 10/100/1000Base-T, Unmanaged Industrial PoE Switch
- Ask for a Quotation
- 5-Year Warranty
Description
5 x 10/100/1000Base-T , Unmanaged Industrial PoE Switch
This industrial Ethernet switch is equipped with 5-port 10/100/1000Mbps auto-negotiation RJ45 interfaces. It supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ah, IEEE 802.3z and IEEE 802.3ab standards, adopting a store-and-forward switching architecture. With 1Mbit packet buffer, 10Gbps backplane bandwidth, MAC address table size of 2K, and support for 10K Bytes frame length, it ensures stable data forwarding with low latency (<7μs), suitable for industrial communication and video transmission applications.
This series supports redundant DC power input or optional AC power supply, with reverse polarity protection and over-current protection. It features an IP40-rated metal enclosure, fan-less low-power design, DIN-rail or wall mounting installation, and operates reliably in temperatures ranging from -40°C to +75°C.
Features
➢ 5 x 10/100/1000Mbps RJ45 auto-negotiation ports
➢ Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ah, IEEE 802.3z, IEEE 802.3ab
➢ Store-and-forward switching architecture
➢ 1Mbit packet buffer
➢ 10Gbps backplane bandwidth
➢ MAC address table: 2K
➢ Forwarding frame length up to 10K Bytes
➢ Low latency (<7μs) forwarding performance
➢ PoE support (IEEE 802.3af/at, PSE), up to 30W per port
➢ DC 9–56V power input, PoE DC 48–56V support
➢ Reverse polarity protection
➢ 6KV surge protection (IEC61000-4-5)
➢ ESD protection: Air discharge 8kV, Contact discharge 6kV (IEC61000-4-2)
➢ IP40 fan-less and Din-rail hardware design
➢ Operation temperature:-40°C to +75°C
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
