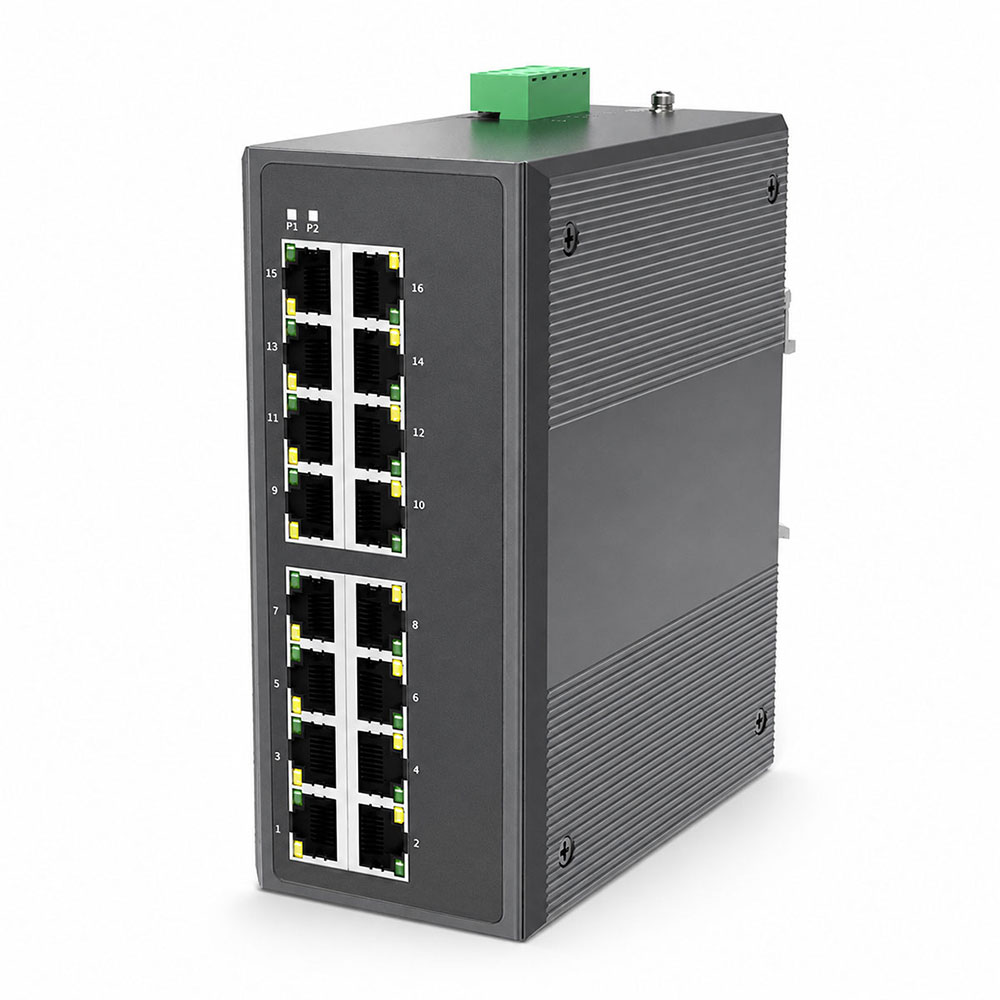

16×10/100/1000Base-T RJ45 ports Unmanaged Industrial Ethernet Switch

  • Ask for a Quotation
  • 5-Year Warranty
Description

16×10/100/1000Base-T RJ45 ports Unmanaged Industrial Ethernet Switch

The switch is the highly reliable industrial Ethernet switch with 16-port 10/100/1000-T RJ45. It is featuring with port isolation, flow control, QoS(1-2 ports) and broadcast storm restrain function, which all can be configured by the Dip switch on the top panel.

It is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage/over-current protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability.It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.

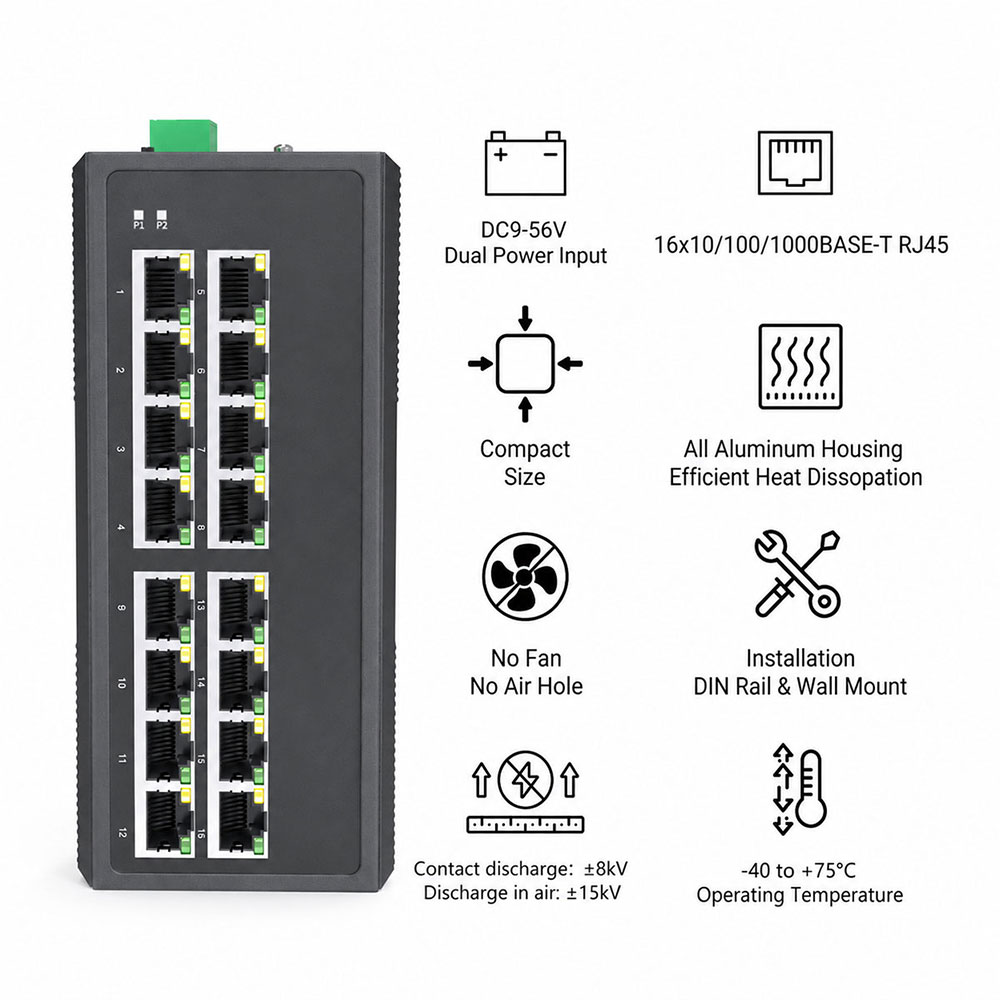

Features

➢ 16*10/100/1000Base-T RJ45 ports

➢ Redundant power DC12-58V input with polarity reverse/over-voltage/over-current protection

➢ Support one output relay alarm(terminal block Pin 5/6) for DC power failure

➢ Support powerful Dip switch function:

1.Port isolation; 2. Flow control; 3. QoS(1-2 ports) ; 4.Broadcast storm restrain

➢ Support 10K Bytes Jumbo frame

➢ Support6KV surge protection and ESD: Air-15kV, Contact-8kV Protection

➢ IP40 fan-less andDin-rail hardware design

➢ Operation temperature:-40 ℃ ~+75℃


Quality Assurance

Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
