4 x 10/100/1000BASE-T, 1 x 1000BASE-X SFP Unmanaged Industrial Ethernet Switch
- Ask for a Quotation
- 5-Year Warranty
Description
4 x 10/100/1000BASE-T, 1 x 1000BASE-X SFP Unmanaged Industrial Ethernet Switch

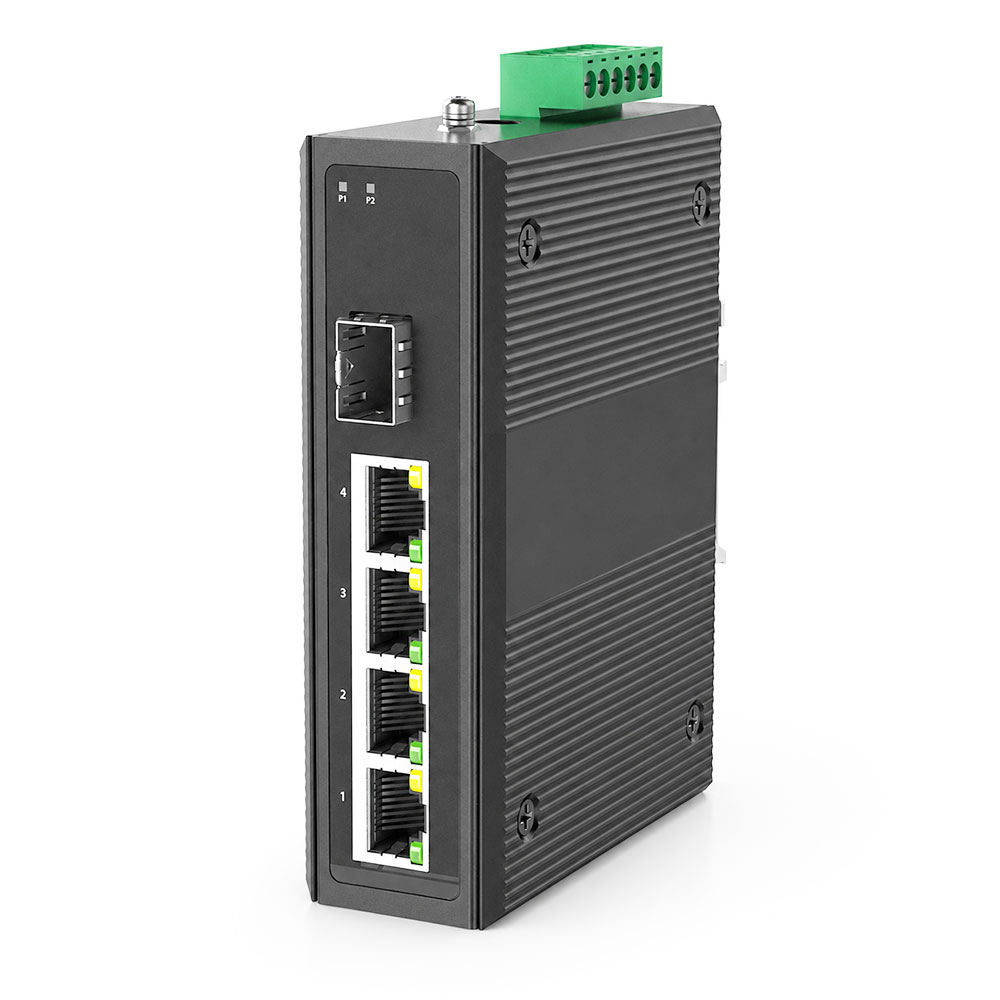

This unmanaged industrial Ethernet switch is equipped with 4-port 10/100/1000BASE-T RJ45 interfaces and 1-port 1000BASE-X fiber optical interface. It supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az and IEEE 802.3ah standards, adopting store-and-forward switching architecture. With 1Mbit packet buffer, 10Gbps switching bandwidth and support for 10K Bytes Jumbo Frame, it ensures wire-speed forwarding on all ports and smooth transmission of 4K video applications.
This series supports redundant DC power input or optional AC power supply, with reverse polarity protection and over-current protection. It features an IP40-rated metal enclosure, fan-less low-power design, DIN-rail or wall mounting installation, and operates reliably in temperatures ranging from -40°C to +75°C.

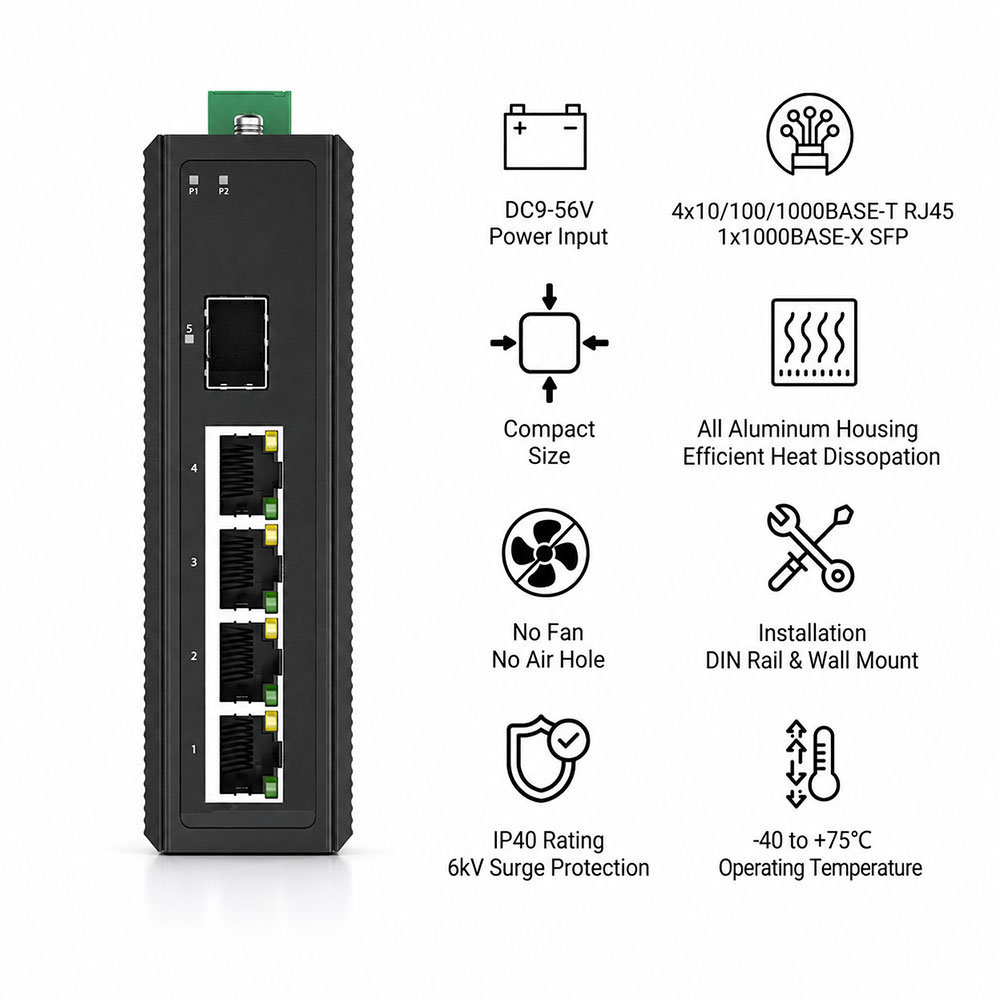

Features
➢ 4*10/100/1000M RJ45 ports, 1*1000Base-X SFP fiber port
➢ Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az and IEEE 802.3ah standards
➢ Store-and-forward switching architecture
➢ 1Mbit packet buffer and 10Gbps switching bandwidth
➢ Ensure wire-speed forwarding on all ports
➢ Support 10K Bytes Jumbo Frame
➢ Redundant DC power input or optional AC power supply
➢ Reverse polarity protection and over-current protection
➢ 6KV surge protection (IEC61000-4-5)
➢ ESD protection: Air discharge 8kV, Contact discharge 6kV (IEC61000-4-2)
➢ IP40 fan-less and Din-rail hardware design
➢ Operation temperature:-40°C to +75°C
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
