16 x 10/100/1000Base-T, 2 x 1000Base-X Unmanaged Industrial Ethernet Switches
- Ask for a Quotation
- 5-Year Warranty
Description
16 x 10/100/1000Base-T， 2 x 1000Base-X Unmanaged Industrial Ethernet Switches

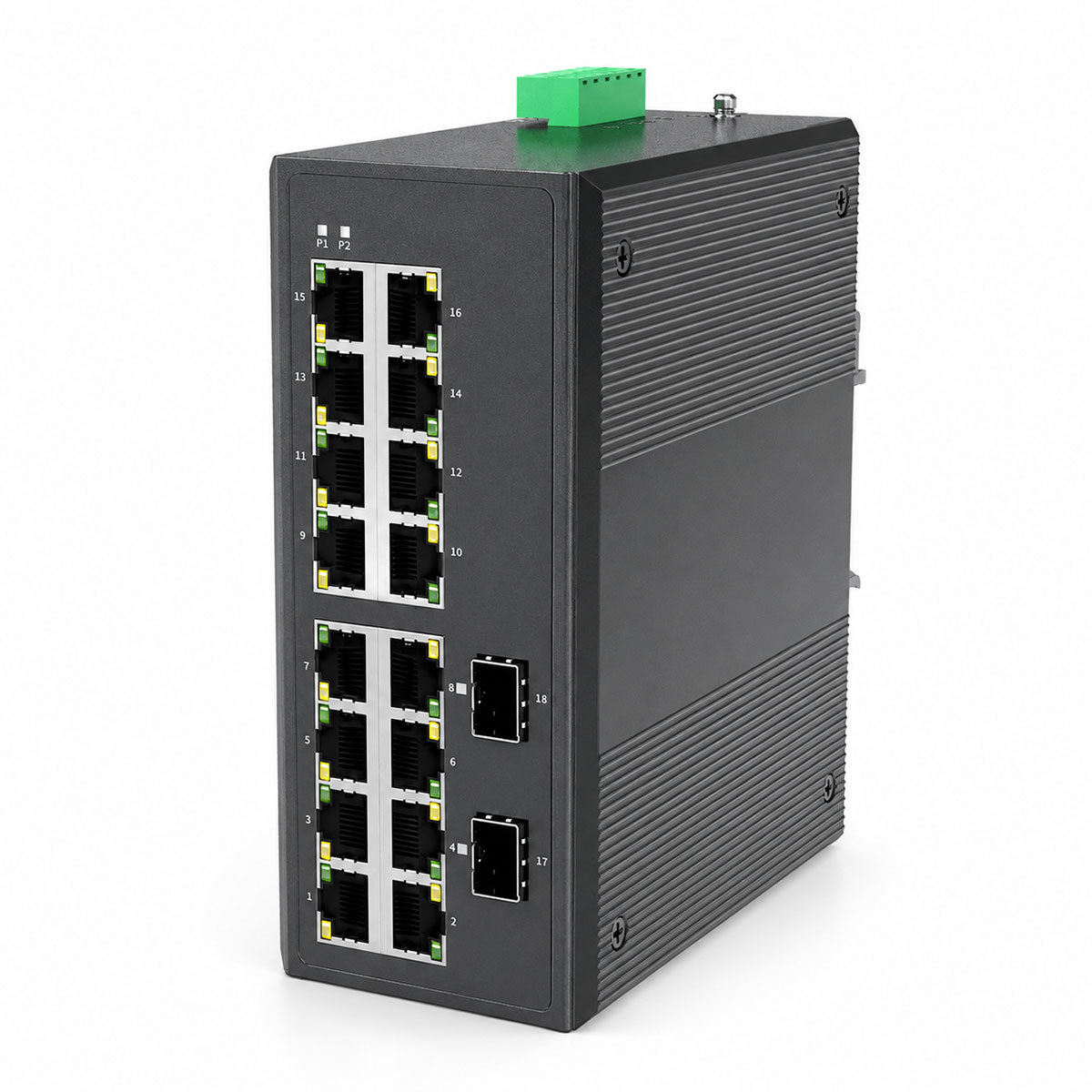

CIS-5216U is an unmanaged industrial Ethernet switch equipped with 16 auto-negotiation 10/100/1000Base-T RJ45 ports and 2 Gigabit 1000Base-X fiber interfaces. With a 4Mbit packet buffer, 56Gbps switching capacity and store-and-forward switching architecture, it ensures wire-speed forwarding on all ports and smooth transmission of bandwidth-intensive services such as 4K video.
CIS-5216U supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az and IEEE 802.3ah standards. It features an 8K MAC address table, supports up to 10K Bytes Jumbo Frame and provides forwarding latency of less than 7μs.
Designed for industrial applications, CIS-5216U supports redundant dual DC power inputs or optional single AC power input with reverse polarity and over-current protection. Its IP40-rated metal housing, fanless low-power design, DIN-rail mounting and wide operating temperature range of -40°C to 75°C ensure reliable operation in harsh industrial environments.
Features

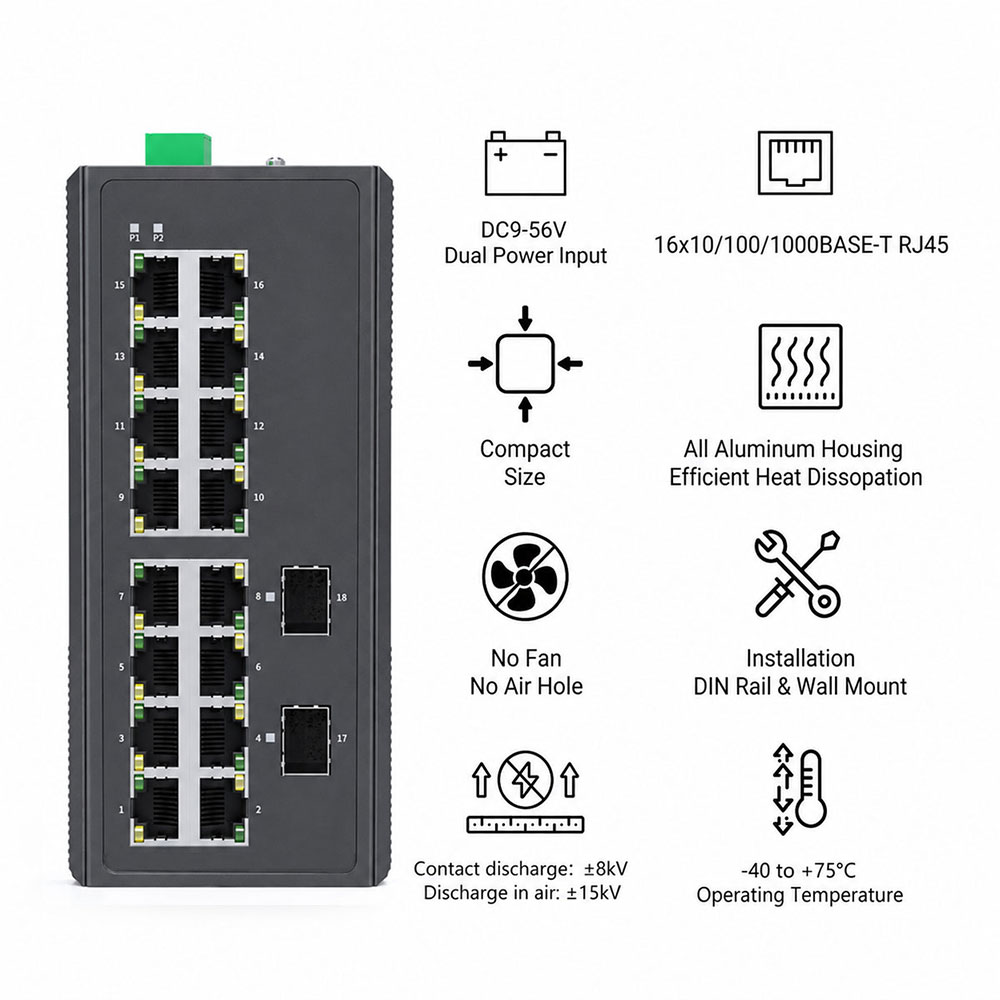

➢ 16*10/100/1000Base-T RJ45 ports, 2*1000Base-X SFP slots
➢ 4Mbit packet buffer and 56Gbps switching capacity
➢ Store-and-forward switching architecture with wire-speed forwarding
➢ Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az and IEEE 802.3ah standards
➢ Support 10K Bytes Jumbo Frame
➢ 8K MAC address table
➢ Forwarding latency < 7μs
➢ Redundant power DC9-56V input with polarity reverse/over-current protection
➢ Support 6KV surge protection and ESD: Air-8kV, Contact-6kV Protection
➢ IP40 fan-less and Din-rail hardware design
➢ Operation temperature:-40°C to +75°C
