SFP28 25GBASE-BX40-D 1310nm-TX/1270nm-RX 40km DOM LC SMF
$200.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description

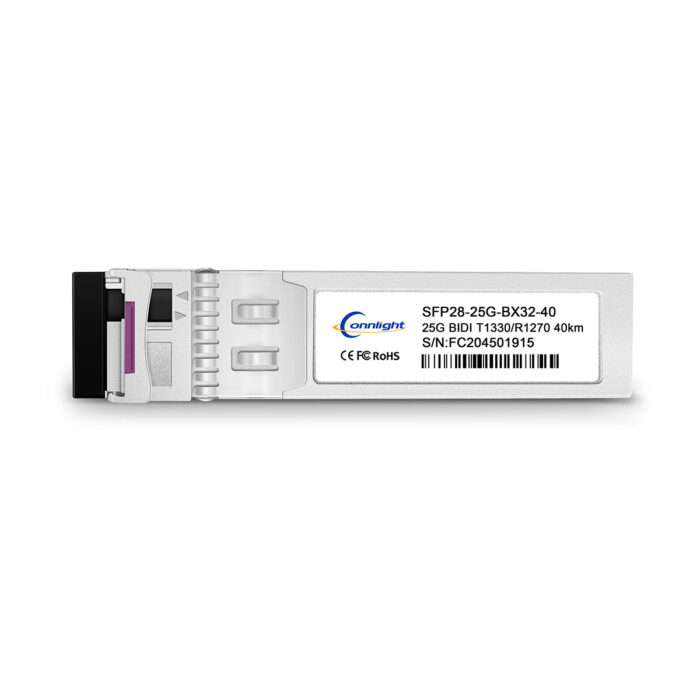

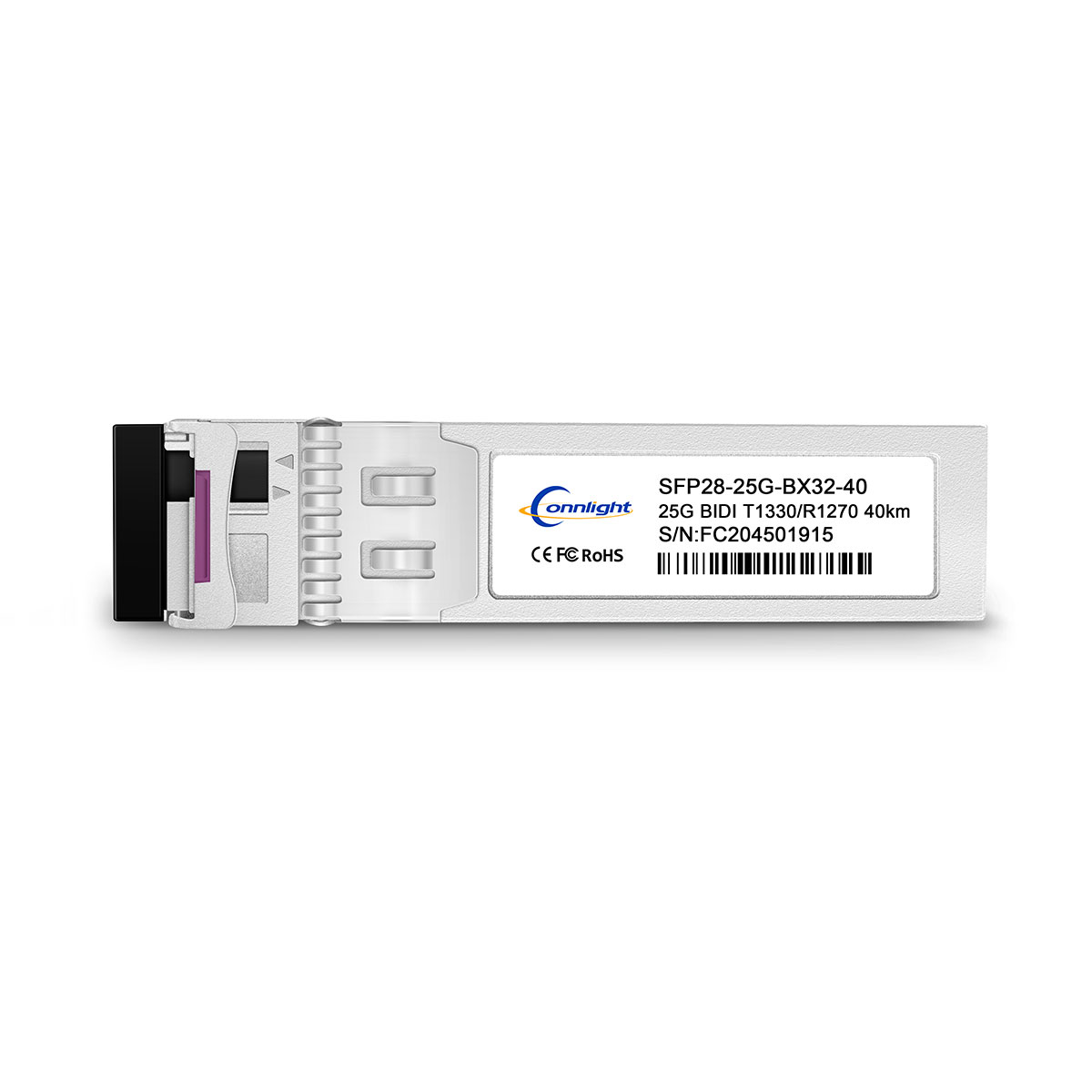

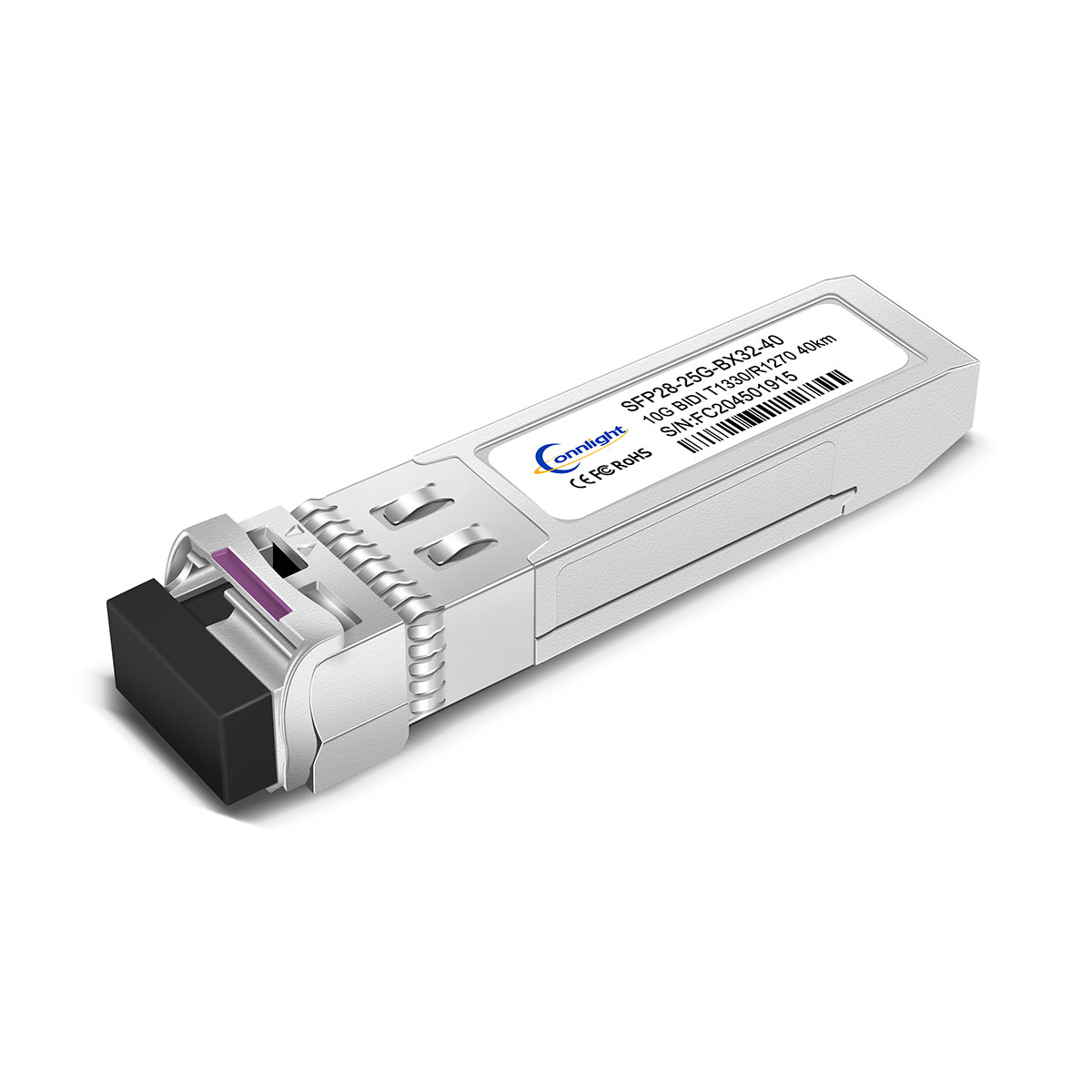

25GBASE-BX40-D SFP28 Optical Transceiver Module for Data Center and Telecom (SMF, 1310nm-TX/1270nm-RX, 40km, LC, DOM)
This SFP-25GBX-D-40 SFP+ transceiver provides 25GBase-BX throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm-TX/1270nm-RX via an LC simplex connector. This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
| P/N | SFP28-25G-BX32-40 | Vendor Name | Connlight |
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | 1310nm-TX/1270nm-RX | Max Cable Distance | 40km |
| Connector | LC simplex | Media | SMF |
| Transmitter Type | DFB BiDi | Receiver Type | APD |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70¡ãC (32 to 158¡ãF) |
| TX Power | 0~6dBm | Receiver Sensitivity | <-18dBm |
| Power Consumption | 1.2W | Extinction Ratio | 3.5dB |
| Modulation Format | NRZ | CDR | TX and RX |
| Transmit and Dispersion Penalty | 1dB | Powerbudget | 18dB |
| Packaging Technology | TO-CAN Packaging | FEC Function | Supported @ 40km, Not Supported @ 30km |
| Protocols | MSA Compliant, CPRI, eCPRI | Application | 25GBASE Ethernet, Data Center, Telecom |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
