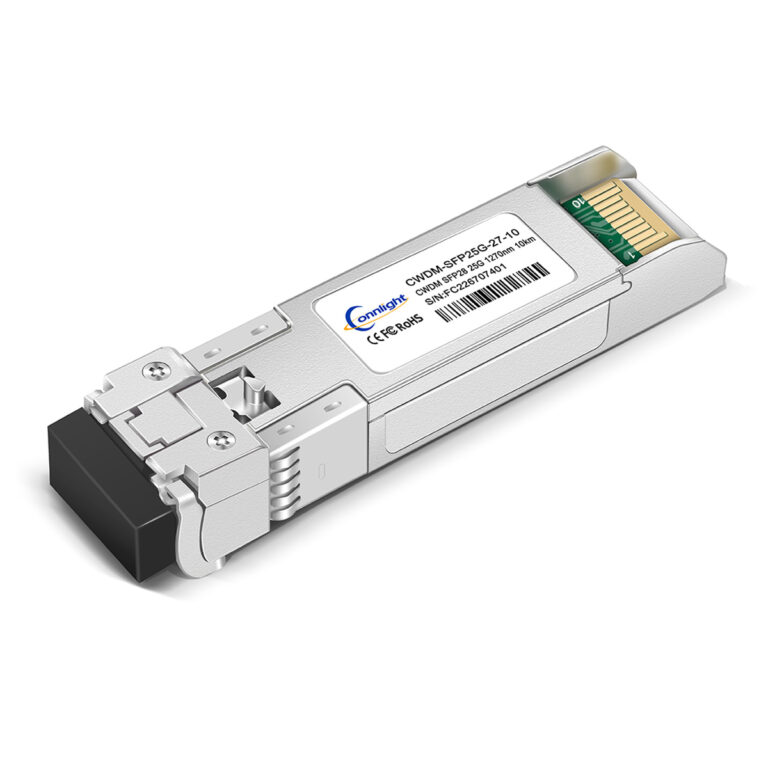

25G CWDM SFP28 1270nm-1570nm 10km DOM LC SMF Optical Transceiver Module
Price range: $50.00 through $400.00
25G CWDM SFP28 1270nm-1370nm 40km DOM LC SMF Optical Transceiver Module
$300.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description
25G CWDM SFP28 DOM Optical Transceiver Module for Data Center and Telecom (SMF, 1270~1370nm, 40km, LC, DOM)
This CWDM-SFP25G-1270-40 SFP28 transceiver provides 25GBase-CWDM throughput up to 40km over single mode fiber (SMF) using a wavelength of 1270~1370nm via an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
| P/N | CWDM-SFP25G-XX-40 | Vendor Name | Connlight |
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | 1270~1370nm | Max Cable Distance | 40km |
| Connector | LC duplex | Media | SMF |
| Transmitter Type | DML CWDM | Receiver Type | APD |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70¡ãC (32 to 158¡ãF) |
| TX Power | 0~6dBm | Receiver Sensitivity | <-19dBm |
| Power Consumption | 1.5W | Extinction Ratio | 4dB |
| Modulation Format | NRZ | CDR | TX and RX |
| Transmit and Dispersion Penalty | 4dB | Powerbudget | 19dB |
| Packaging Technology | TO-CAN Packaging | FEC Function | Supported @ 40km, Not Supported @ 30km |
| Protocols | MSA Compliant, CPRI, eCPRI | Application | 25GBASE Ethernet, Data Center, Telecom |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
