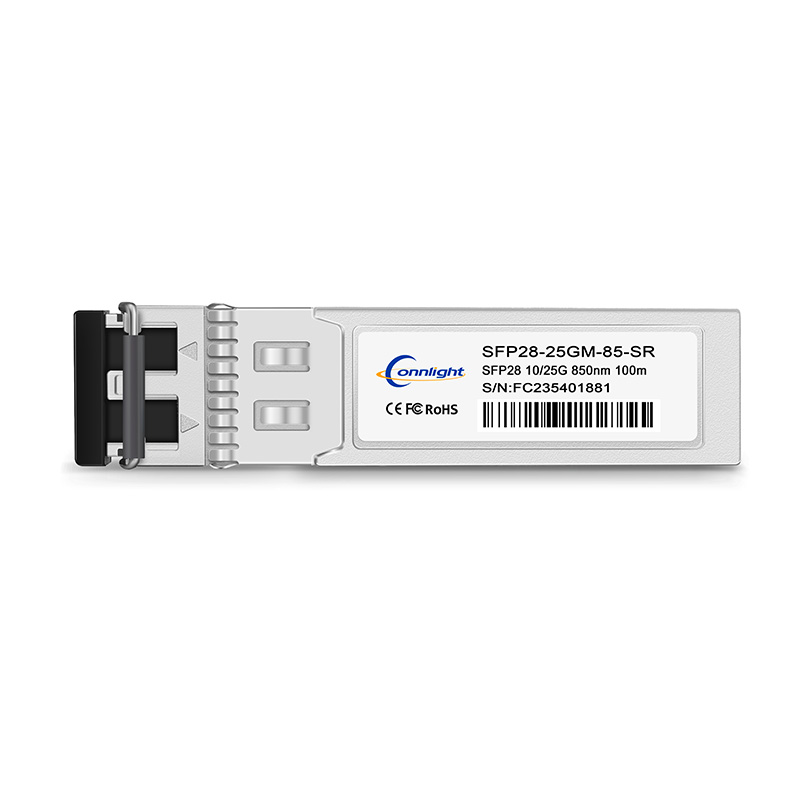

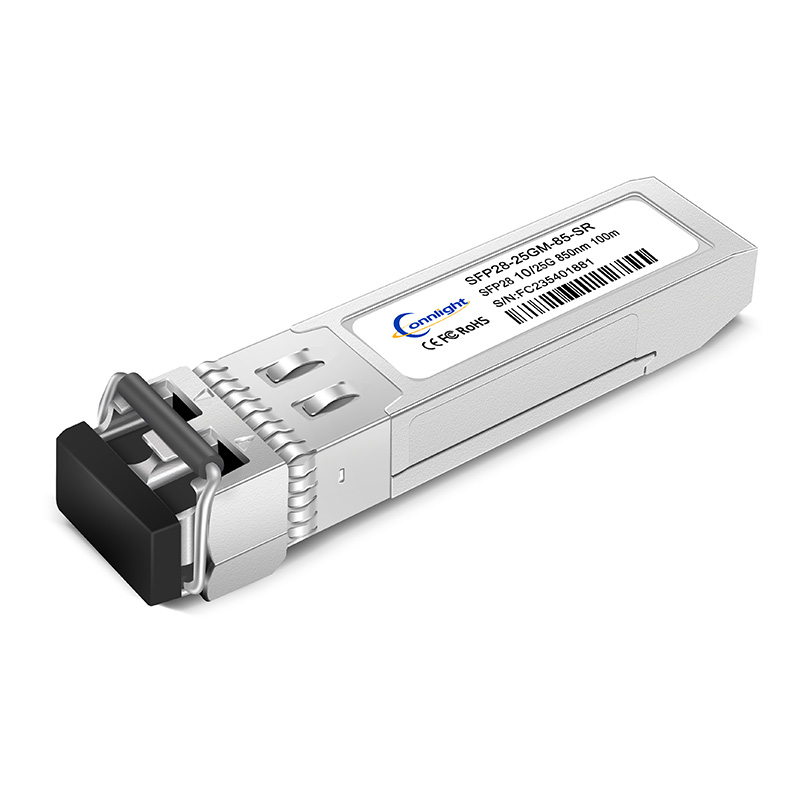

SFP-10/25G-85-SR Compatible SFP28 10/25GBASE-SR Dual-rate 850nm 70m (OM3) /100m (OM4) DOM Duplex LC MMF
$30.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description
10/25GBASE-SR SFP28 Optical Transceiver Module for Data Center (MMF, 850nm, 100m, LC, DOM)
The Dual Data SFP28 transceiver provides 10/25GBASE-SR throughput up to 100m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. This module provides 10G backward compatibility and simplifies network upgrade. It provides connectivity option for 25G Ethernet, 10G Ethernet and data center. It is fully compliant with the SFP28 MSA, SFF-8431, SFF-8432, SFF-8472 and IEEE802.3by standard. Dual-rate SR 10G/25G SFP28 transceiver caters to 10/25 Gigabit Ethernet (10/25GbE) optical fiber connections, ideal for short-distance applications in the data center, campus network, enterprise core layer, and distribution layer, etc.
| Model Name | SFP-10/25G-85-SR | Vendor Name | Connlight |
| Form Factor | SFP28 | Data Rate | 10/25 Gbps |
| Wavelength | 850nm | Distance | 100m@OM4 70m@OM3 |
| Connector | LC Duplex | Cable Type | OM3/OM4 MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -6.4~2.4dBm | Receiver Sensitivity | ＜-6dBm |
| Power Consumption | <1.2W | Modulation Format | NRZ |
| DDM | Support | Bit Error Ratio (BER) | 1E-12 |
| Protocols | IEEE 802.3ba, SFP28 MSA | Warranty | 5 Years |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
