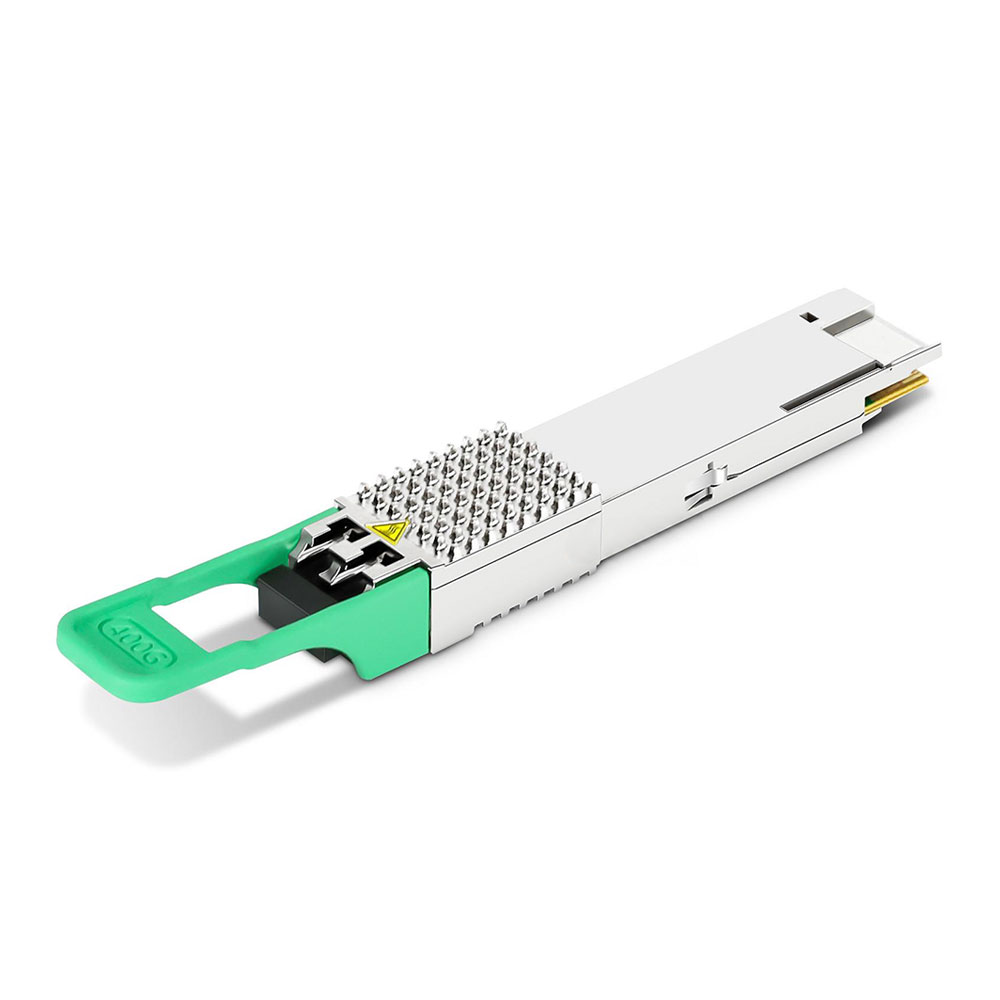

Generic Compatible 400GBASE-LR4 QSFP-DD PAM4 1310nm 10km DOM Transceiver Module
$750.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
SKU:
62299
Category: 400G QSFP-DD/OSFP/QSFP112
Description
Generic Compatible 400G-LR4 QSFP-DD PAM4 1310nm 10km DOM Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
The 400GBASE-LR4 module, Duplex LC connector, up to 10km over parallel single-mode fiber. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard.
The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.
Part Number | QDD-400G-LR4 | Vendor Name | Connlight |
Form Factor | QSFP-DD | Max Data Rate | 400Gbps |
Wavelength | 1310nm | Max Cable Distance | 10km |
Connector | LC Duplex | Modulation Format | PAM4 |
Transmitter Type | EML CWDM4 | Receiver Type | PIN |
Electric Signal | 8x50G | Optical Signal | 4x100G |
Media | SMF | DDM/DOM | Supported |
TX Power | -2.8~4.0dBm | Receiver Sensitivity | <-4.1dBm |
Power Consumption | <12W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Protocols | QSFP-DD MSA Compliant | Application | 400GBASE Ethernet |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
