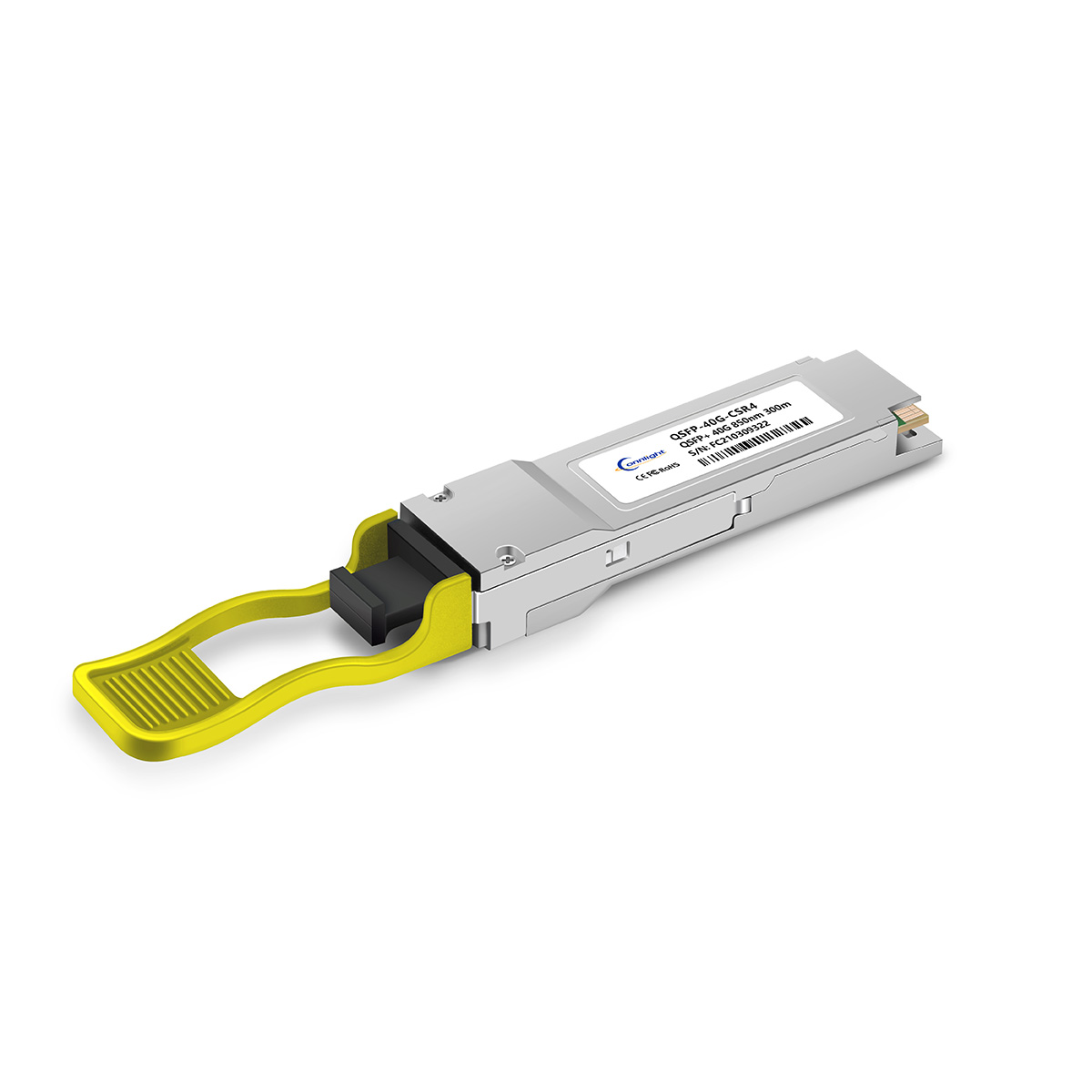

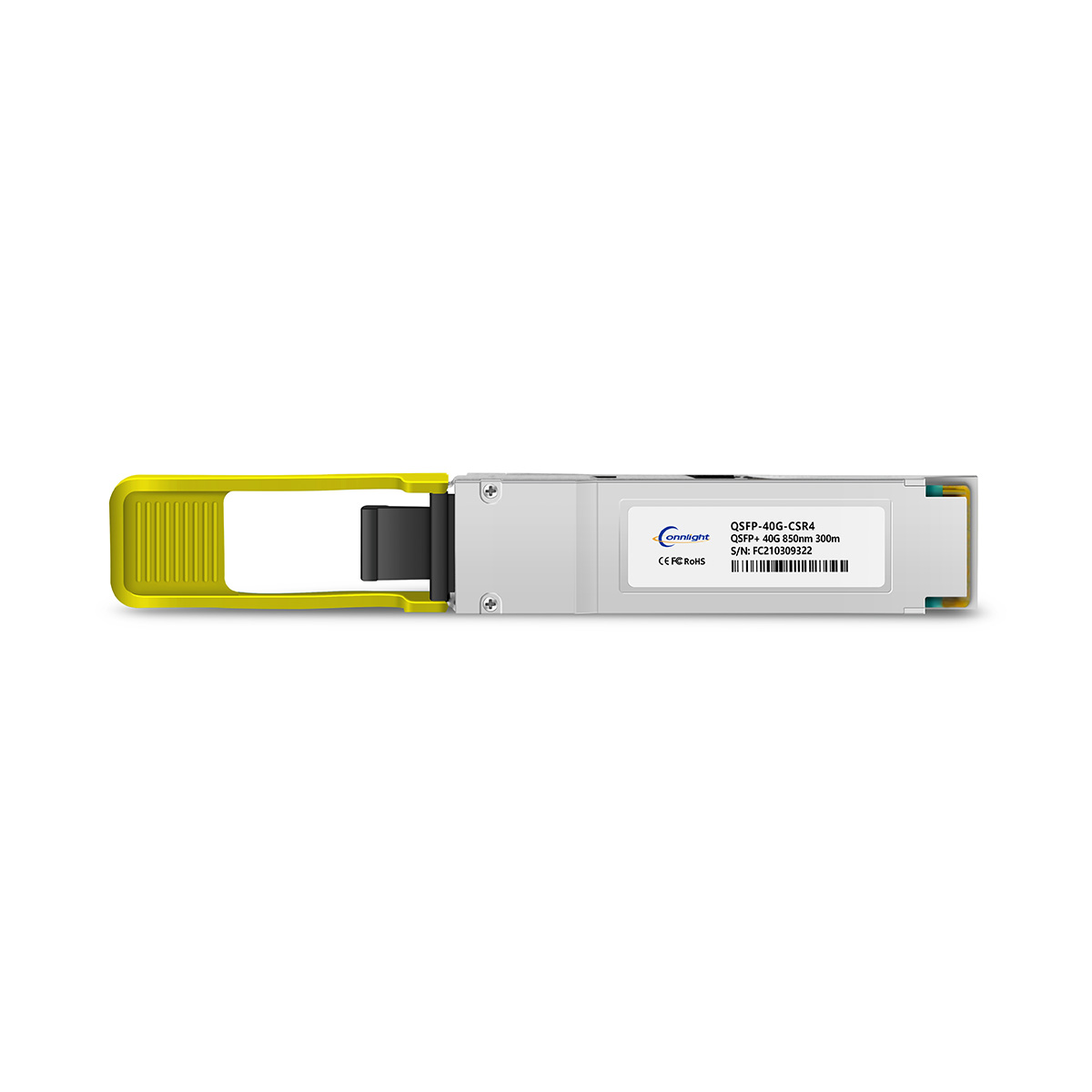

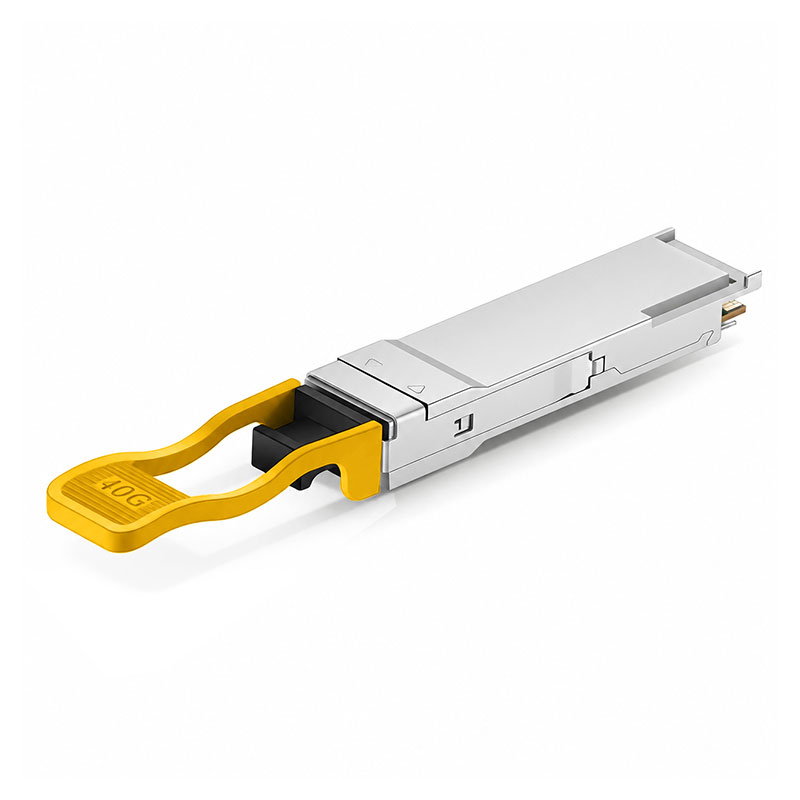

40GBASE-CSR4 QSFP+ 850nm 400m MPO/MTP-12 MMF DDM Transceiver Module

$30.00

  • 100% OEM Compatible
  • 30-Day Easy Return
  • 5-Year Warranty
SKU: 62209 Category:
Description

40G QSFP+ CSR4 Transceiver Module (850nm MMF 300m MTP/MPO DDM ), QSFP-40G-CSR4 Compatible

The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 400m over multimode fiber (MMF) using a wavelength of 850nm via an MTP/MPO-12 connector. It is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4, and IEEE 802.3ae 10GBASE-SR standard. It is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module that provides increased port density and total system cost savings. With these features, this easy-to-install, hot-swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise cores, and distribution layers.

Product Details

P/NQSFP-40G-CSR4Vendor NameConnlight
Form FactorQSFP+Max Data Rate40Gbps
Wavelength850nmMax Distance300m @OM3/400m @OM4
ConnectorMTP/MPOTransmitter TypeVCSEL 850nm
Cable TypeMMFReceiver TypePIN
TX Power-8~1.0dBmReceiver Sensitivity< -13dBm
Protocols40G Ethernet, Infiniband QDR, SATA/SAS3,

IEEE 802.3ba, MSA Compliant

Operation Temperature0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Certification

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

Test equipment
