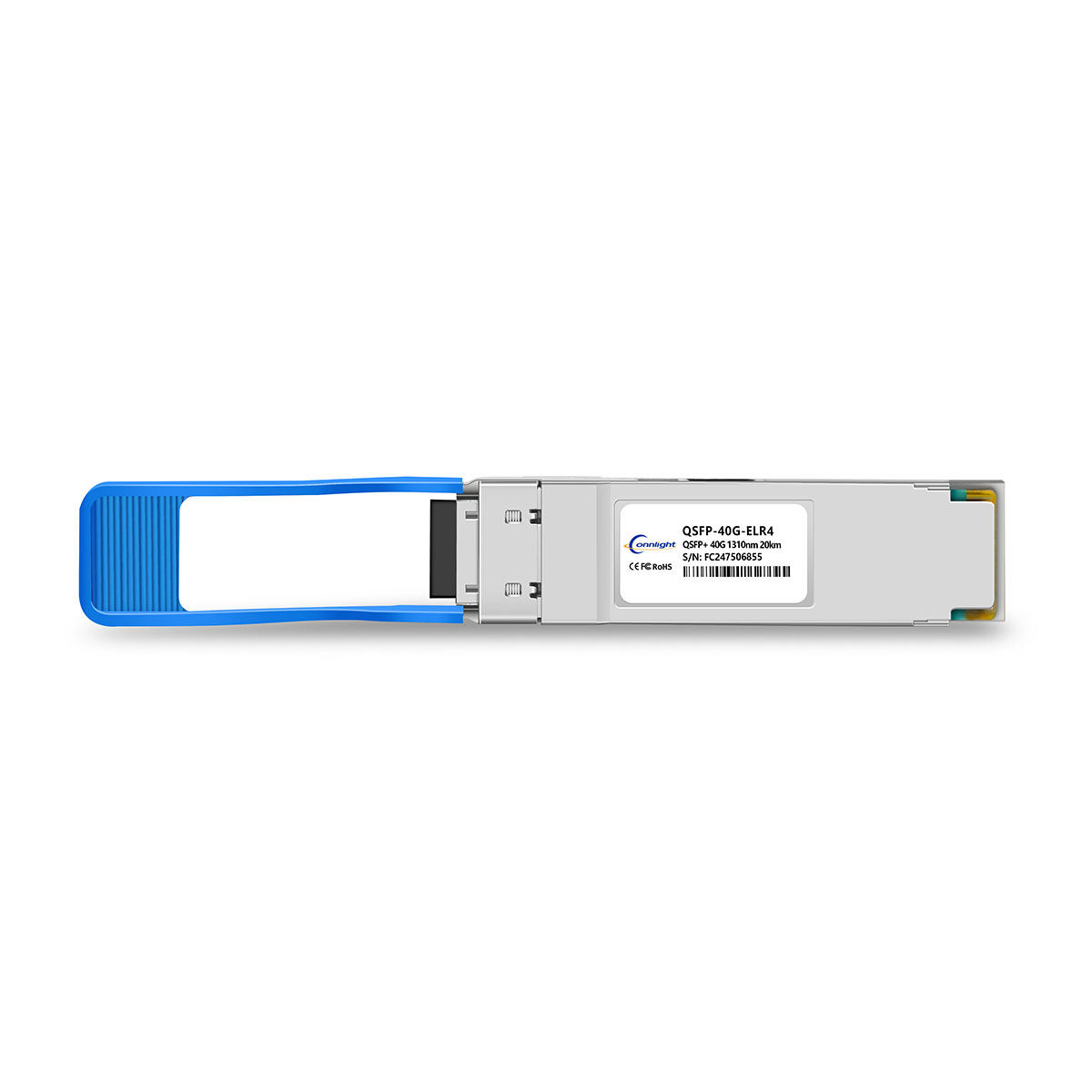

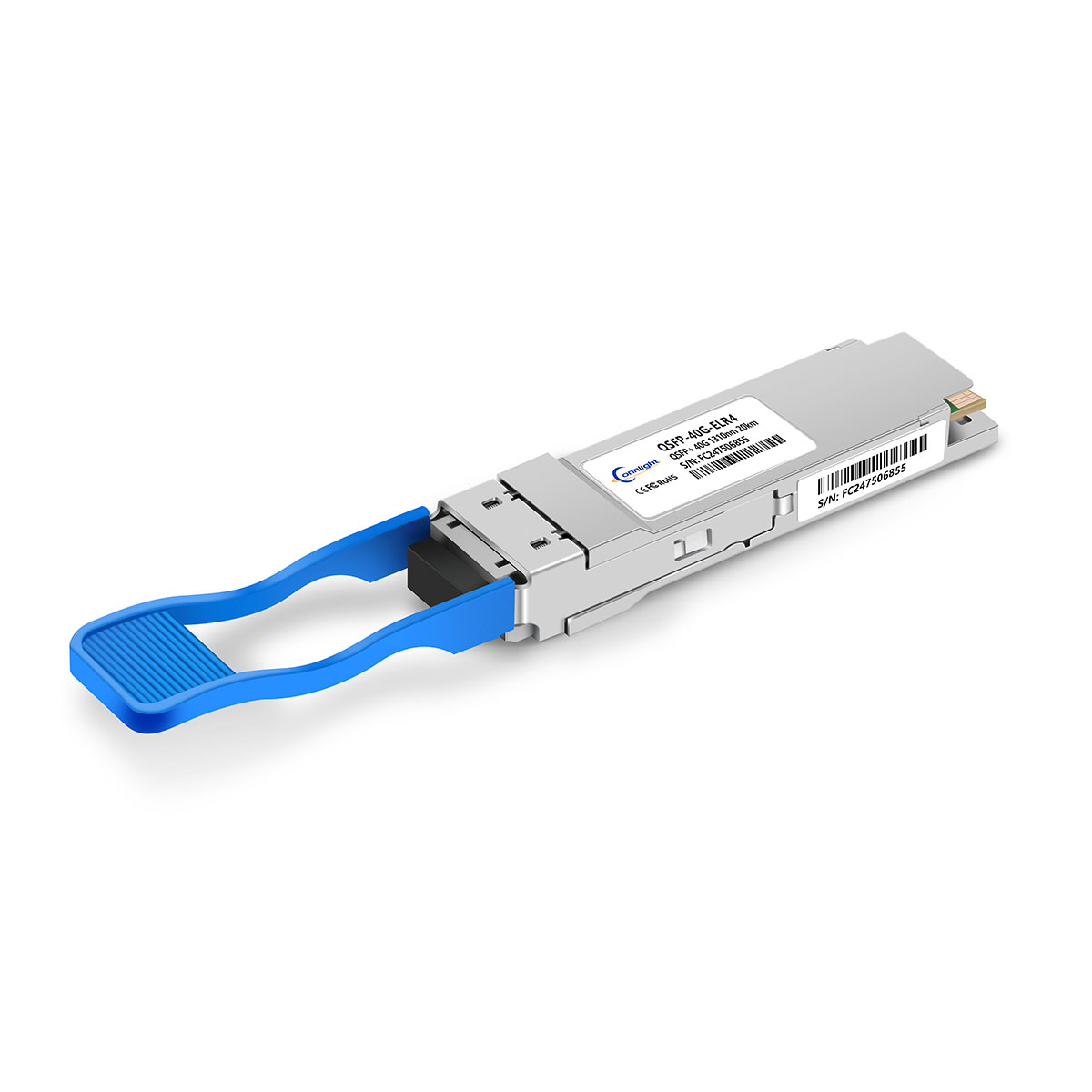

40GBASE-ELR4 QSFP+ 1310nm 20km DOM Duplex LC/UPC SMF Transceiver Module
$170.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
SKU:
62211
Category: 40G QSFP+
Description
QSFP-40G-ELR4 Compatible 40GBASE-ELR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 20km, LC, DOM)
The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 20km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with SFF-8436 QSFP+ MSA and RoHS standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications
Product Details
P/N | QSFP-40G-ELR4 | Vendor Name | Connlight |
Form Factor | QSFP+ | Max Data Rate | 40Gbps |
Wavelength | 1271nm, 1291nm 1311nm, 1331nm | Max Distance | 20km |
Connector | LC Duplex | Transmitter Type | 4 Lanes CWDM DFB |
Cable Type | SMF | Receiver Type | PIN |
TX Power | -7.0~+2.3dBm | Receiver Sensitivity | < -14.0dBm |
Protocols | OTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
