40GBASE-LR4 QSFP+ 1310nm 10km LC SMF DDM Transceiver Module
$140.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description

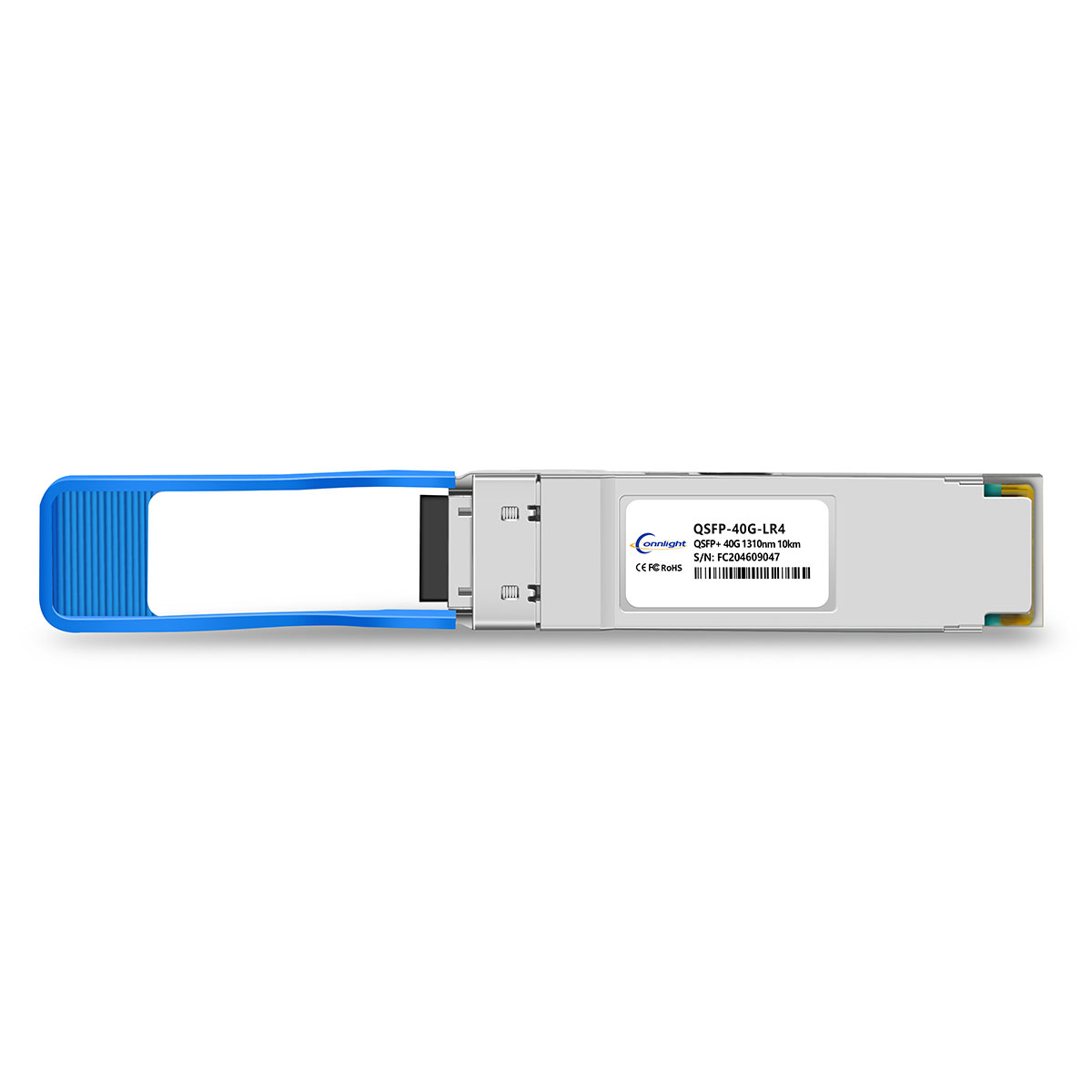

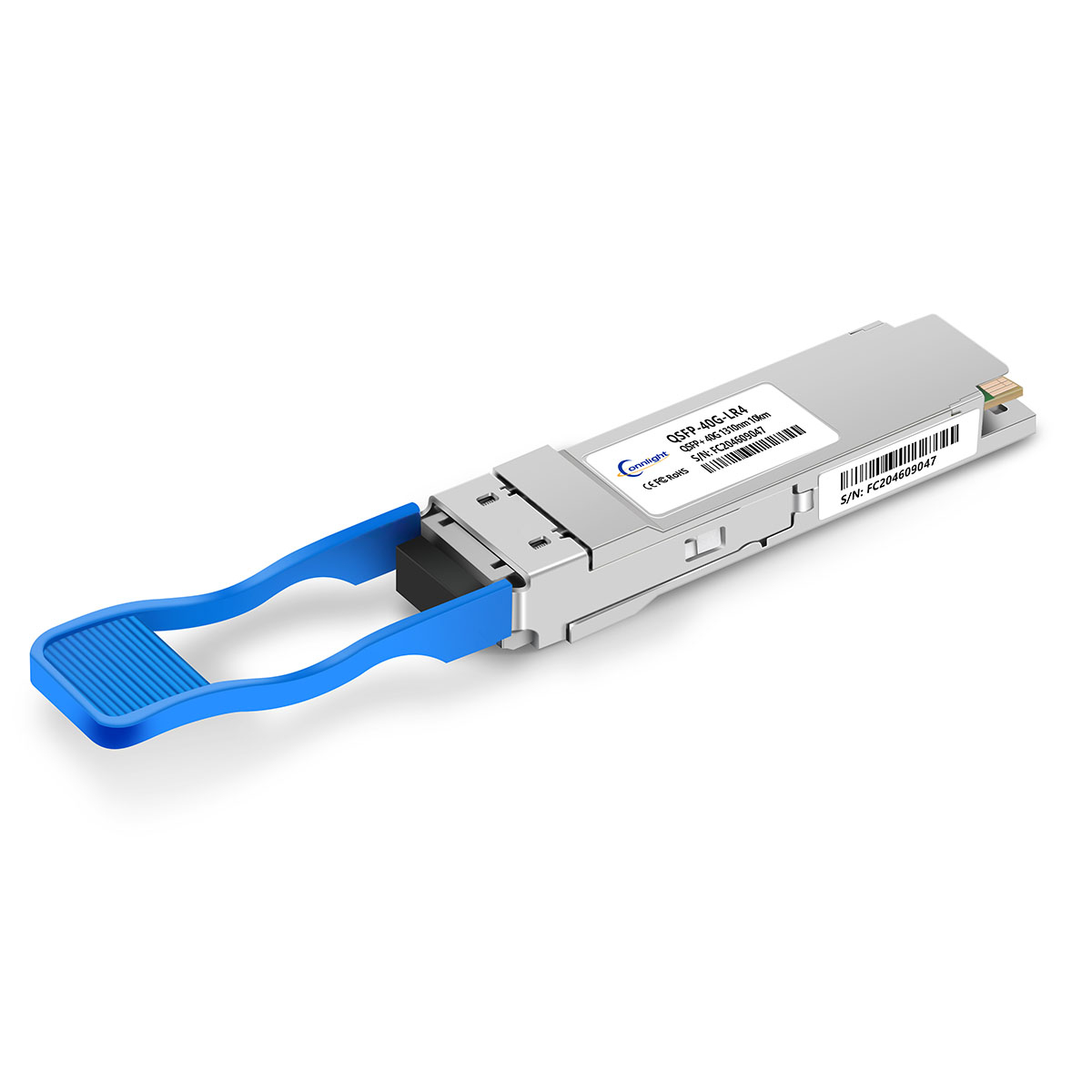

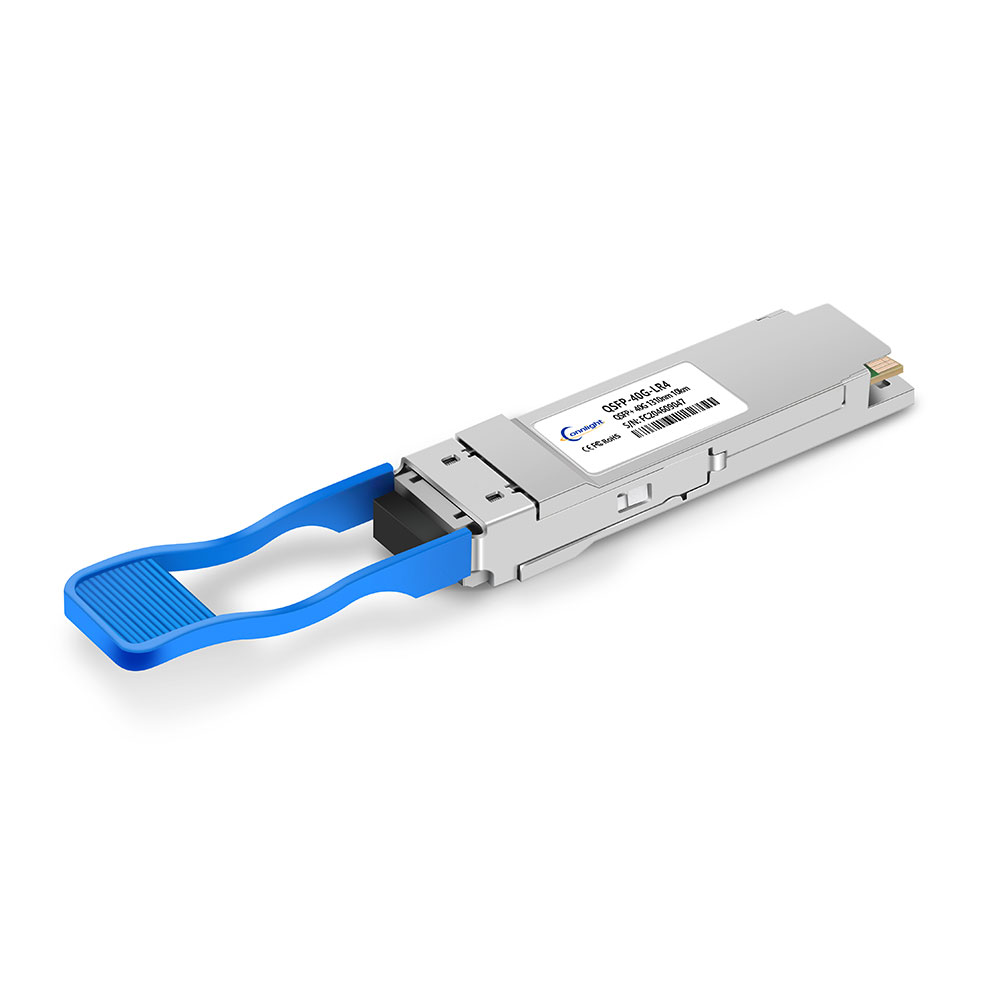

40GBASE-LR4 QSFP+ Compatible Optical Transceiver Module (SMF, 1310nm, 10km, LC, DDM)
The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
| Model Name | QSFP-40G-LR4 | Vendor Name | Connlight |
| Form Factor | QSFP+ | Data Rate | 40 Gbps |
| Wavelength | 1271nm, 1291nm 1311nm, 1331nm | Distance | 10km@OS2 |
| Connector | LC Duplex | Cable Type | OS2 SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -7~2.3dBm | Receiver Sensitivity | <-13.7dBm |
| Power Consumption | <2.5W | Modulation Format | NRZ |
| DDM | Support | Bit Error Ratio (BER) | 1E-12 |
| Protocols | IEEE 802.3ba, QSFP+ MSA, SFF-8436, Infiniband 40G QDR | Warranty | 5 Years |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
