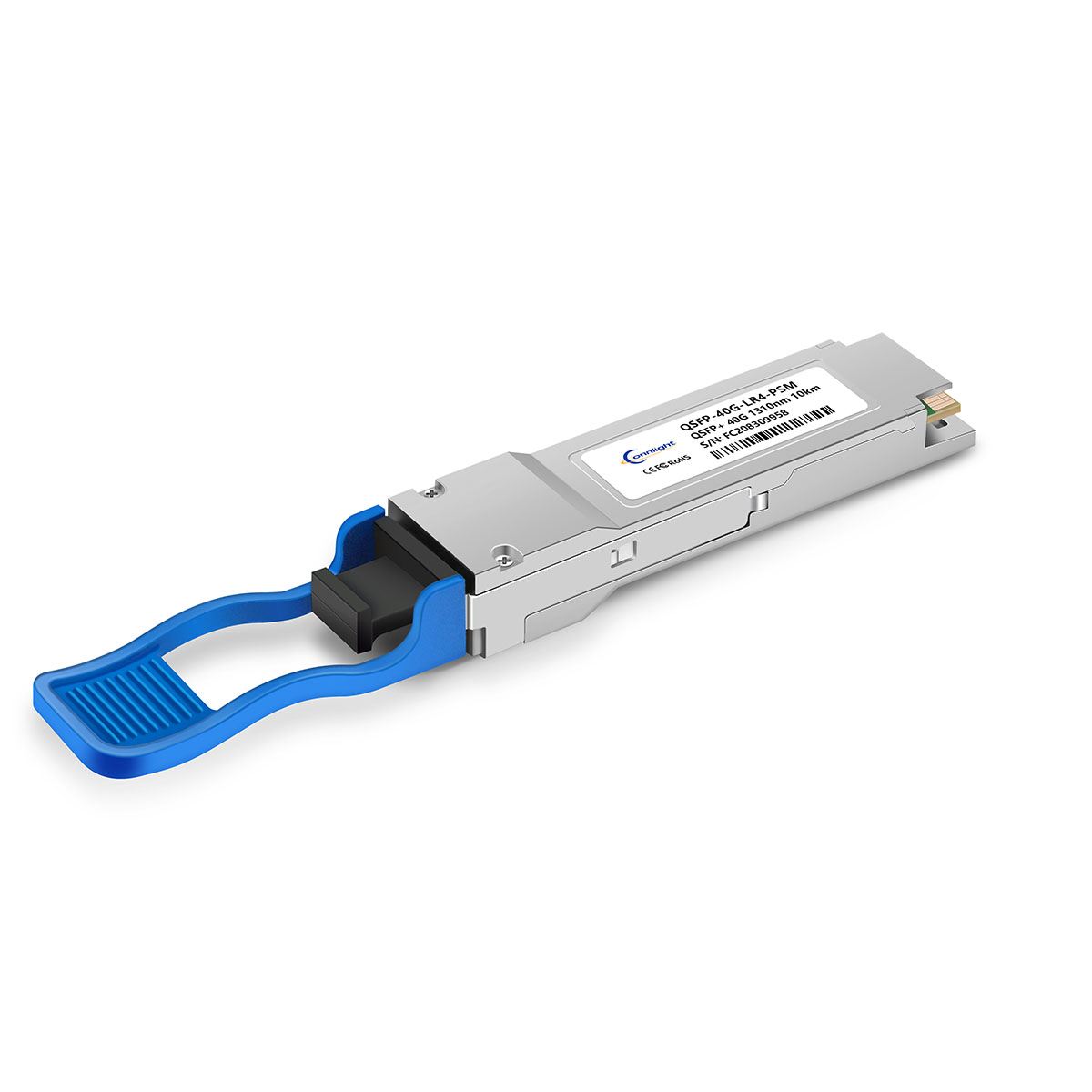

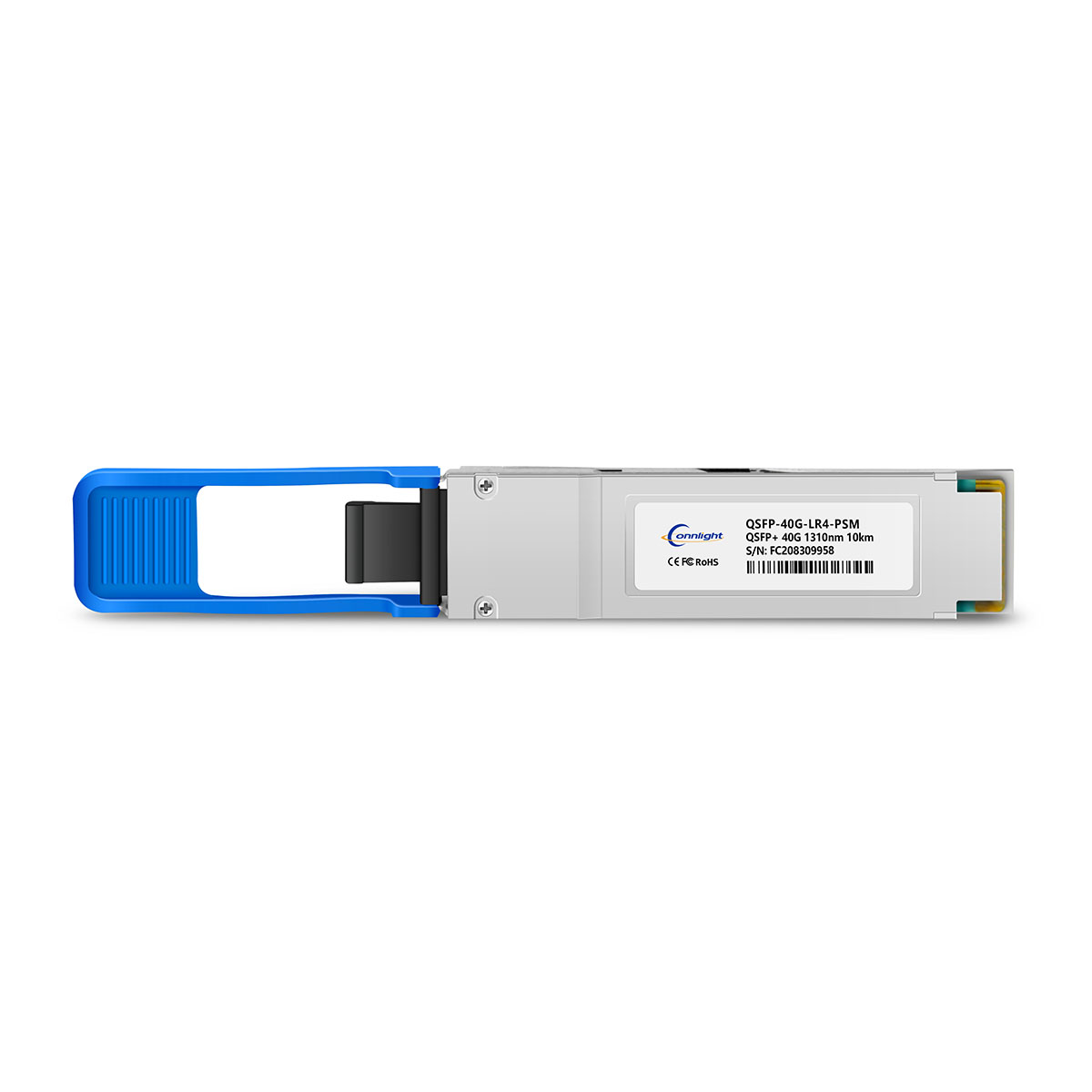

40GBASE-PLR4 QSFP+ 1310nm 10km DOM MPO-12/APC SMF Transceiver Module
$140.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description
40G QSFP+ LR4 PSM Transceiver Module (1310nm SMF 10km MTP/MPO DDM), QSFP-4X10G-LR-S Compatible
The 40G QSFP+ LR4 is a transceiver module designed for 10km optical communication applications. The design is compliant with 40GBASE-LR4 of the IEEEP802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. The central wavelengths of the 4 channels are 1310 nm as members of the wavelength grid defined in ITU-T G694.2.
Product Details
| P/N | QSFP-40G-LR4-PSM | Vendor Name | Connlight |
| Form Factor | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 1310nm | Max Distance | 10km |
| Connector | MTP/MPO | Transmitter Type | 4 Lanes DFB |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -5~1dBm | Receiver Sensitivity | < -12.6dBm |
| Protocols | 40Gigabit Ethernet, 10Gigabit Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
