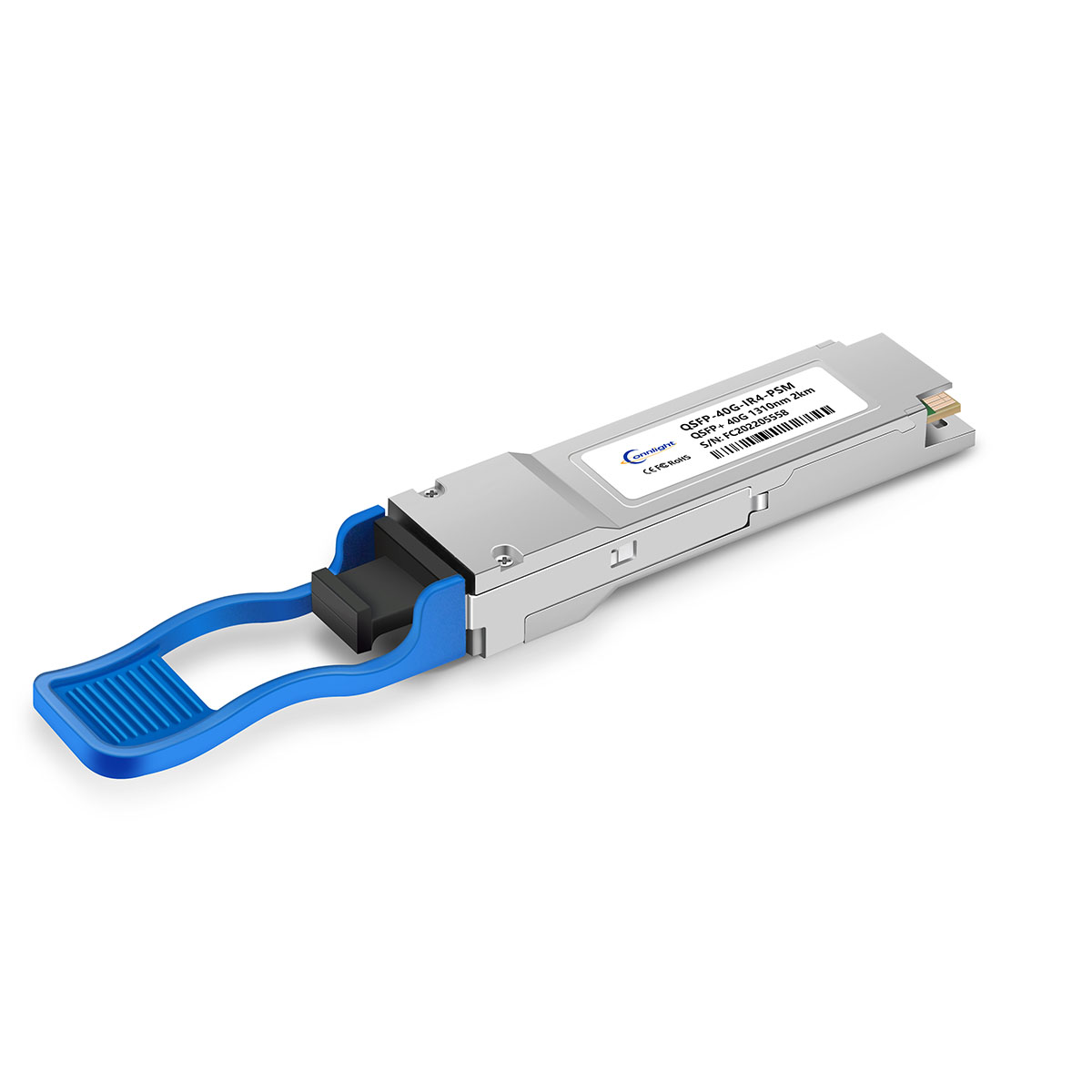

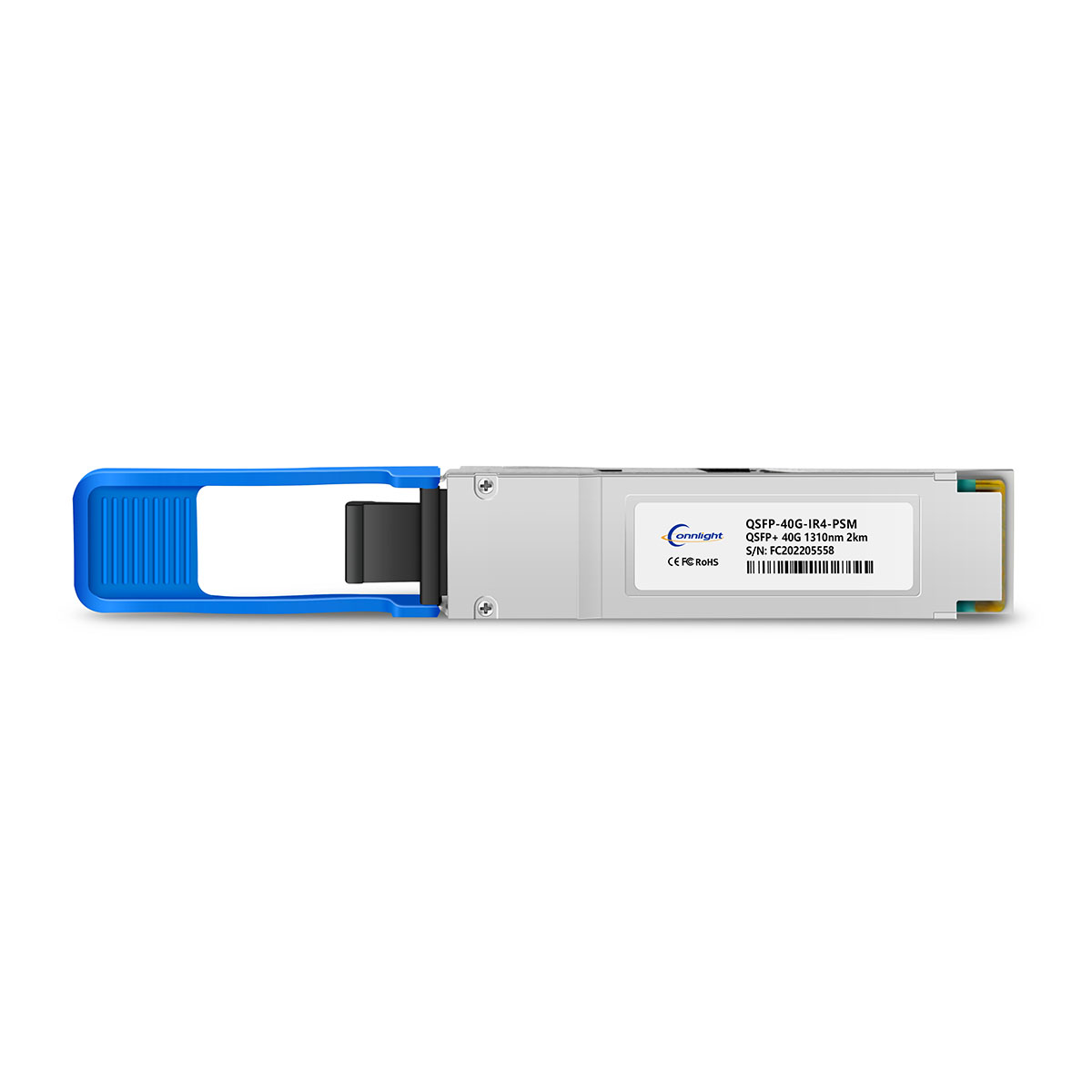

40GBASE-PLR4L QSFP+ 1310nm PSM 2km DOM MPO-12/APC SMF Transceiver Module
$130.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description
40GBASE-PLR4L 40G QSFP+ IR4 PSM Transceiver Module (1310nm SMF 2km MTP/MPO DDM), QSFP-40G-PLRL4 Compatible
The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with 100G PSM4 MSA. Digital diagnostics functions are also available via the I2C interface, as specified by the 100G PSM4 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications
Product Details
| P/N | QSFP-40G-IR4-PSM | Vendor Name | Connlight |
| Form Factor | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 1310nm | Max Distance | 2km |
| Connector | MTP/MPO | Transmitter Type | 4 Lanes DFB |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -5~1dBm | Receiver Sensitivity | < -12.6dBm |
| Protocols | 40Gigabit Ethernet, 10Gigabit Ethernet, 38-pin edge connector, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
