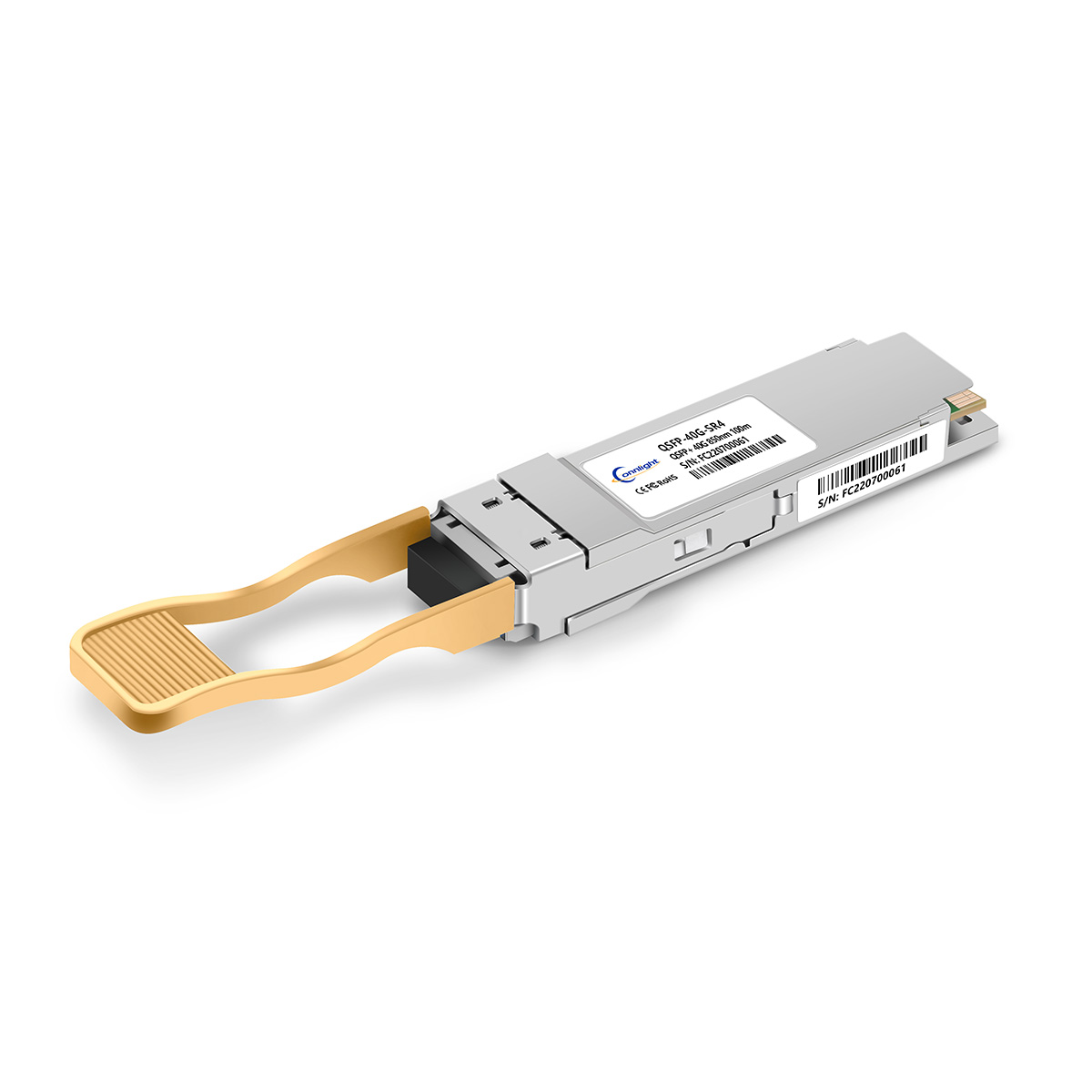

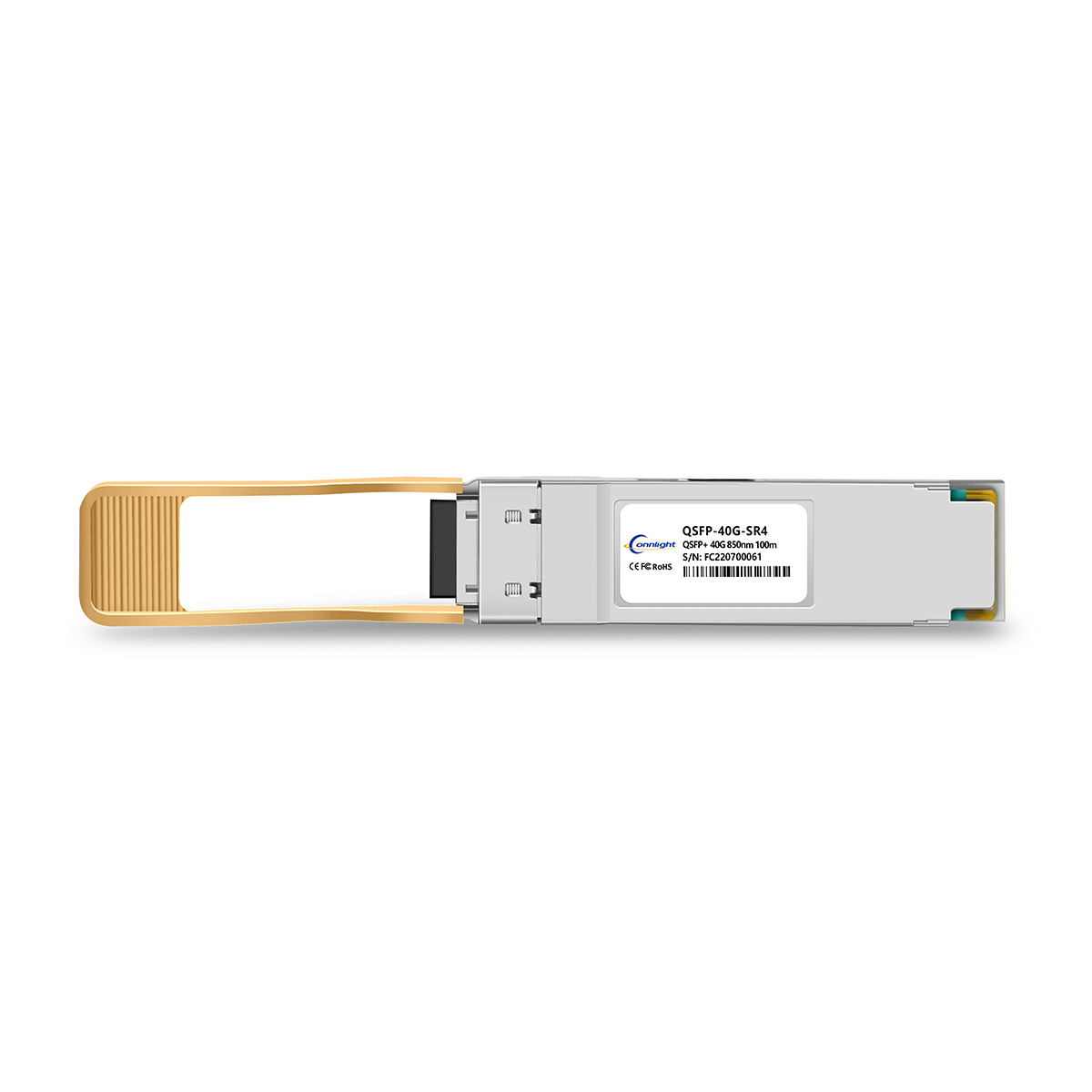

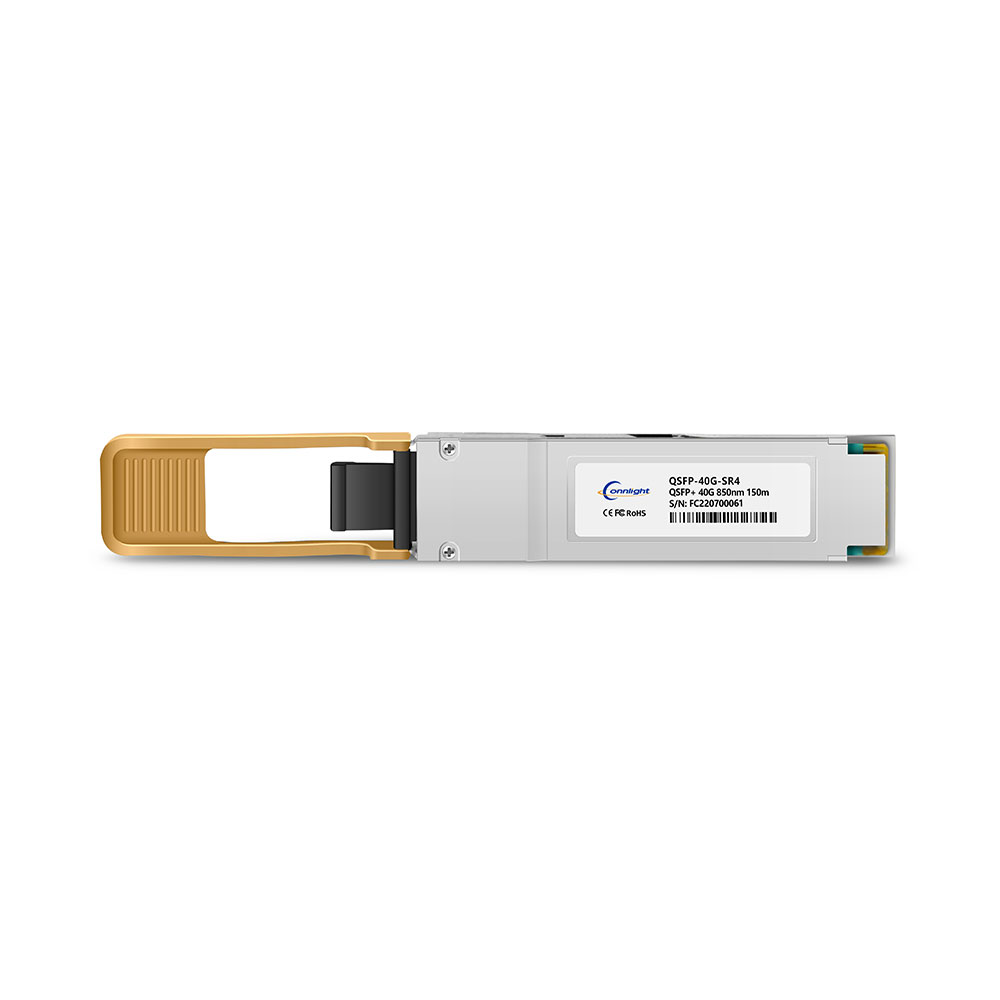

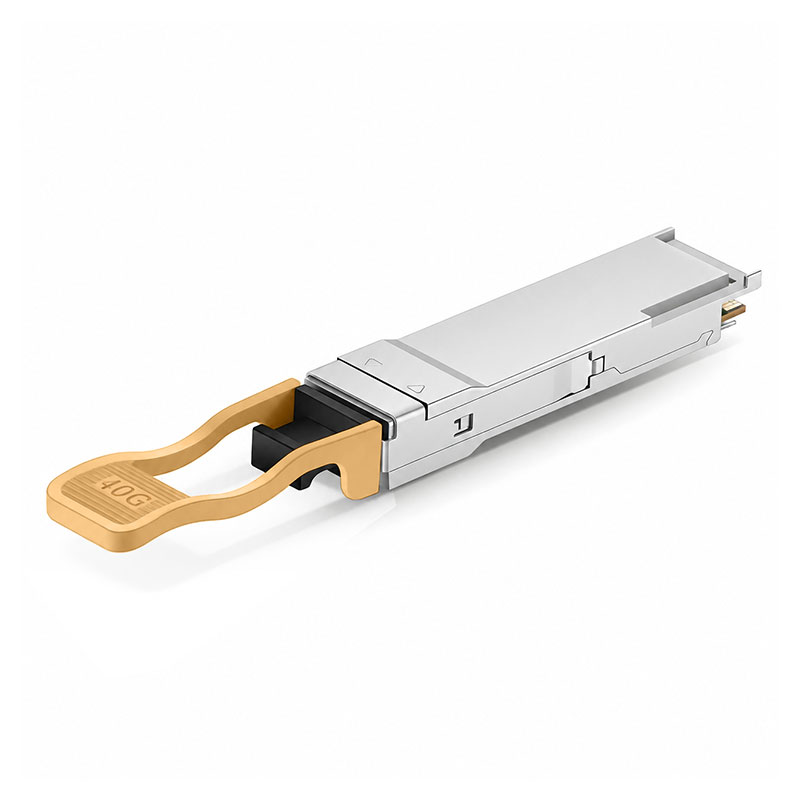

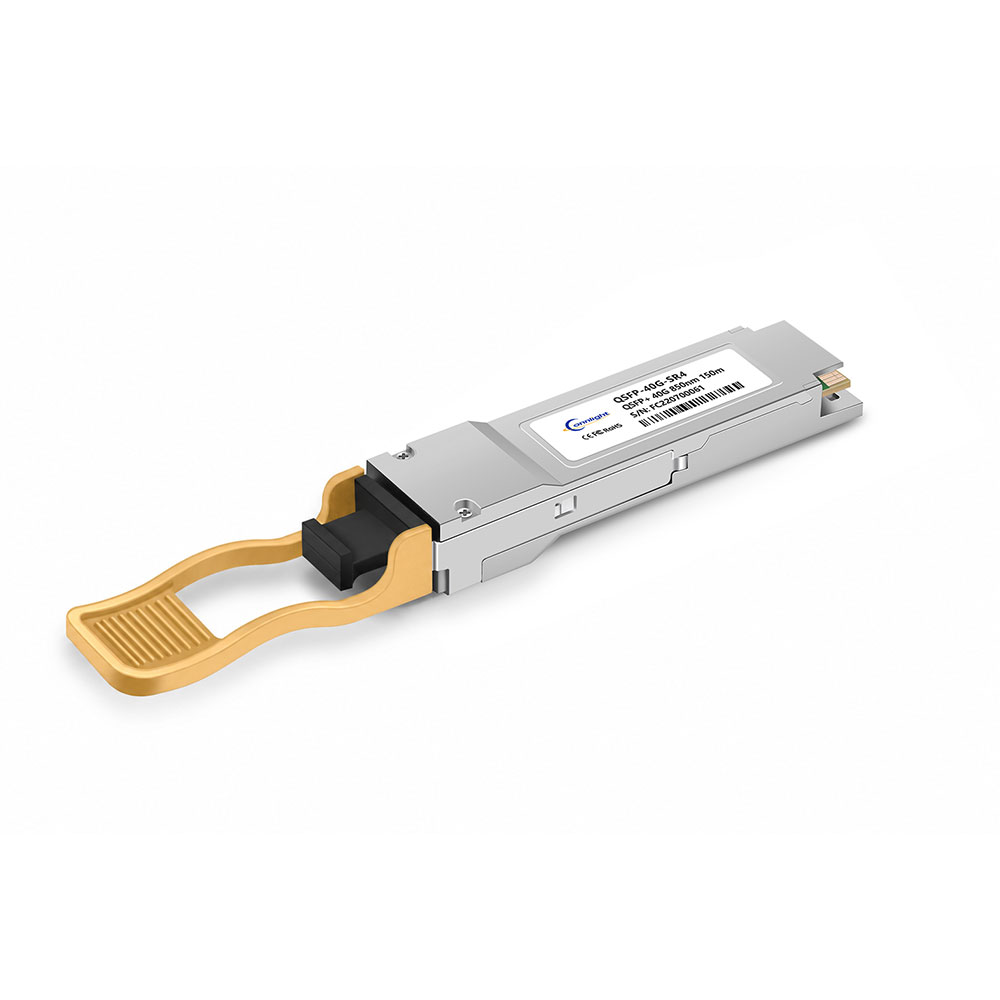

40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO MMF DDM Transceiver Module
$25.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description
40G QSFP+ SR4 Transceiver Module (850nm MMF 150m MTP/MPO DDM), QSFP-40G-SR4-S Compatible
The 40G QSFP+ SR4 is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module that provides increased port density and total system cost savings. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate bandwidth of 40Gbps 100mon OM3 Multimode Fiber (MMF)and 150m on OM4 MMF.
Product Details
| P/N | QSFP-40G-SR4 | Vendor Name | Connlight |
| Form Factor | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 850nm | Max Distance | 100m @OM3/150m @OM4 |
| Connector | MTP/MPO | Transmitter Type | VCSEL 850nm |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -8~1.0dBm | Receiver Sensitivity | < -13dBm |
| Protocols | 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
