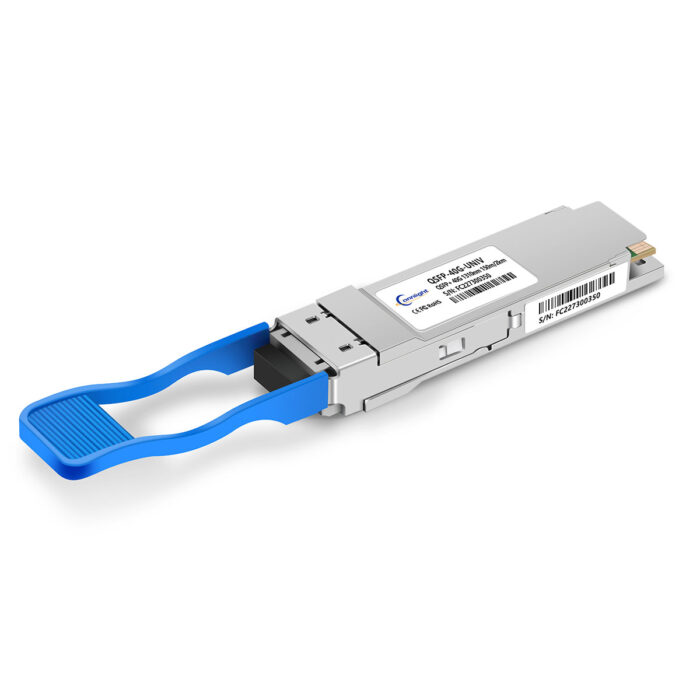

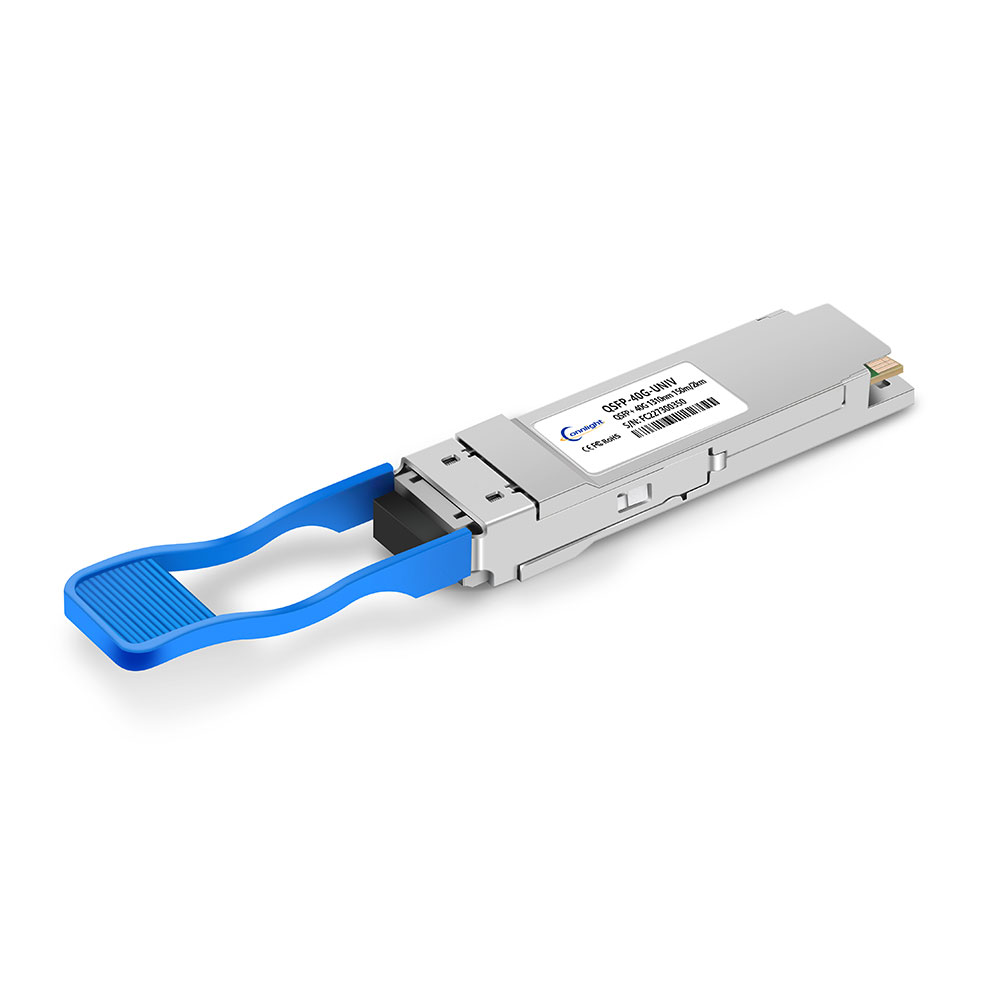

40GBASE-UNIV 1310nm 150m (OM4) 2km MMF/SMF DOM Transceiver Module

$140.00

  • 100% OEM Compatible
  • 30-Day Easy Return
  • 5-Year Warranty
SKU: 62207 Category:
Description

40G QSFP+ UNIV Transceiver Module (1310nm MMF/SMF 150m/2km LC DDM ), QSFP-40G-UNIV Compatible

This product is a transceiver module designed for optical transmission applications over both MMF and SMF with transmission distances of up to 150m on MMF (OM3) and 2kmon SMF.  The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDMoptical signals and multiplexes them into a single channel for 40Gb/s optical transmission. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311, and 1331nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex connector for the optical interface and a 148-pin connector for the electrical interface.

Product Details

P/NQSFP-40G-UNIVVendor NameConnlight
Form FactorQSFP+Max Data Rate40Gbps
Wavelength1310nmMax Distance2km on SMF / 150m on OM3 MMF
ConnectorLC DuplexTransmitter Type4 Lanes CWDM DFB
Cable TypeMMF/SMFReceiver TypePIN
TX Power-7~2.3dBmReceiver Sensitivity< -10.5dBm
Protocols40G Ethernet, MSA CompliantOperation Temperature0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Certification

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

Test equipment
