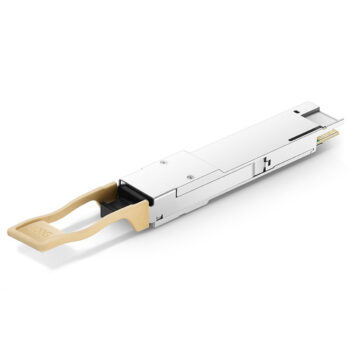

800G QSFP-DD
800G QSFP-DD

800G OSFP

Connlight provides hyperscale data centers with a series of 800G OSFP pluggable optical transceiver modules based on 100G PAM4 technologies. These modules can cover the interconnection links within 50m/100m over multimode fiber (MMF) or 500m to 10km over single-mode fiber (SMF).

Add to wishlist
Category:
Description

Features

  • Hot-pluggable OSFP form factor transceiver modules
  • Compliant with OSFP MSA, CMIS and IEEE 802.3 specifications
  • 4x 100G PAM4 or 8x 100G PAM4 electrical interface
  • 8x 25G NRZ or 8x 50G/100G PAM4 or 4x 50G/100G/200G PAM4 optical interface
  • Data rate up to 425Gbps or 850Gbps
  • 850nm VCSEL or 1310nm/CWDM/LWDM/nWDM EML transmitters and PIN or APD receivers
  • Reach up to 50m/100m over MMF or 500m/2km/10km/30km/40km over SMF
  • Duplex LC/CS or single/dual-MPO receptacle
  • Low power consumption
  • Built-in digital diagnostic functions
  • Case operating temperature range: 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

Ordering Information
