Customized Compact CWDM Mux Demux, Aluminum Box Module

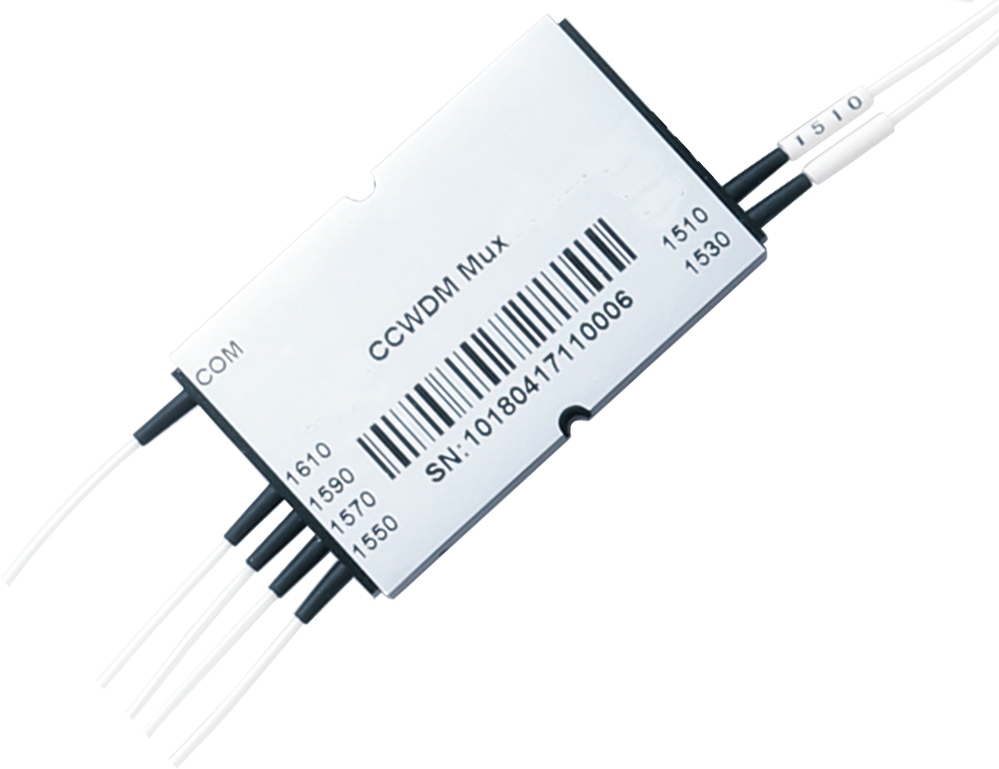

The CCWDM (Compact CWDM) MUX/DEMUX is a multi-channel CWDM device with compact package designed for cost-effective multi-wavelength CwDM network applications. It is based on the Thin Film Filter (TFF) technology and and free-space technology platform.
| Wavelength | 8 Channels 1290-1430nm | Channel Spacing | 20nm |
| Channel Passband | ±6.5nm | Insertion Loss | ≤ 3.1dB (with connectors and adapters) |
| Passband Ripple | ≤ 0.3dB | Isolation | Adjacent channel ≥30 dB Non-adjacent channel ≥ 35dB |
| Return Loss | ≥ 45dB | Directivity | ≥ 50dB |
| Polarization Dependent Loss | ≤ 0.3dB | Polarization Mode Dispersion | ≤ 0.2ps |
| Temperature | Operating -5°C~ +75°C Storage -40°C~+85°C |
Dimensions (HxWxD) | 1.73″x8.48″x7.08″ (44×215.4x180mm) |
