8×10/100/1000Base-T, 4×100/1000Base-X SFP, 4x1G/2.5G/10GBase-X SFP, Layer 2+ Managed Industrial Ethernet Switch
- Ask for a Quotation
- 5-Year Warranty
Description
8×10/100/1000Base-T, 4×100/1000Base-X SFP, 4x1G/2.5G/10GBase-X SFP, Layer 2+ Managed Industrial Ethernet Switch

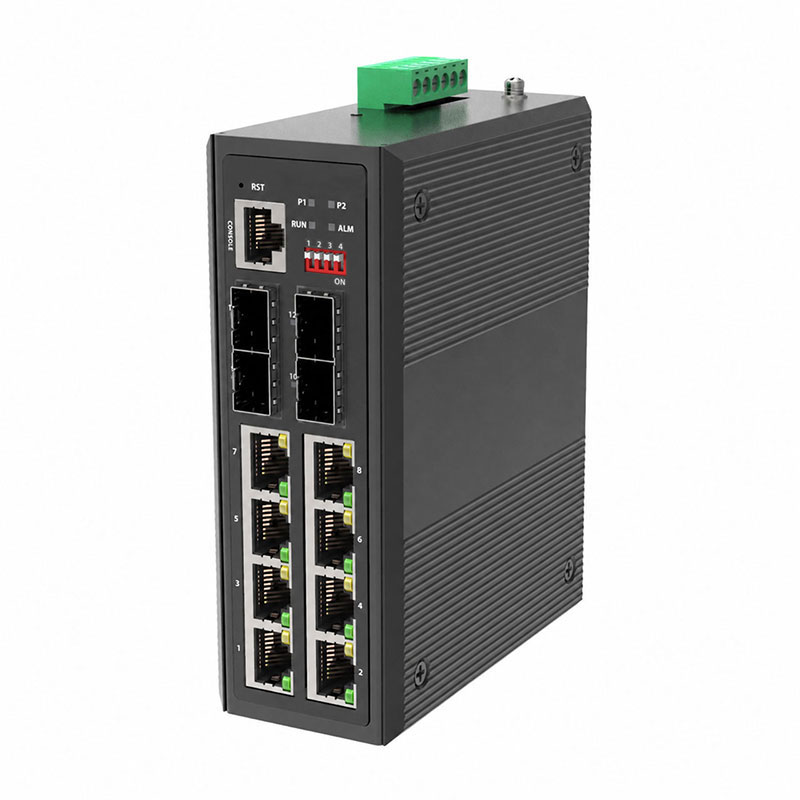

The IP-4SFP4X-4G-U is the highly reliable managed industrial Ethernet switches with 8-port 10/100/1000-T RJ45, 4-port 100/1000Base-X SFP and 4-port 1G/2.5G/10GBase-X SFP+ interfaces. It supports ERPS redundant network and the self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution. IP-4SFP4X-4G-U supports IPv4/IPv6 static routing, DHCP server and robust layer 2 management function, which can fulfill the special needs of industrial automation applications.
IP-4SFP4X-4G-U is also high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage/over-current protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.
Features:

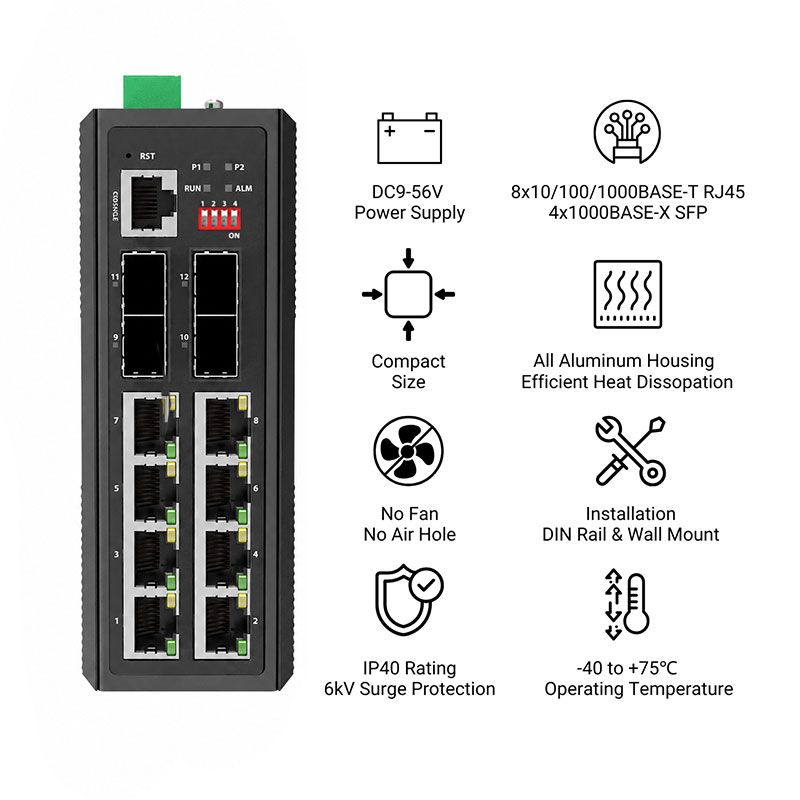

➢ 8*10/100/1000Base-T RJ45, 4*100/1000Base-X SFP, 4*1G/2.5G/10GBase-X SFP+
➢ Redundant power 12-58V input with polarity reverse/over-voltage/over-current protection
➢ Support one digital output for relay alarm (terminal block Pin 5/6)
➢ Layer 3 features: Support IPv4/IPv6 static routing, DHCP server
➢ Support Layer 2 management function: VLAN/VLAN Classification/QinQ/STP, RSTP,
MSTP/Port Mirroring/DHCP/Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp/SFP
DDM/IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading
➢ Support G.8032 ERPS protocol, recovery time ≤20ms
➢ Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
➢ IP40 fan-less and Din-rail hardware design
➢ Operation temperature: -40 ℃ ~+75℃
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
