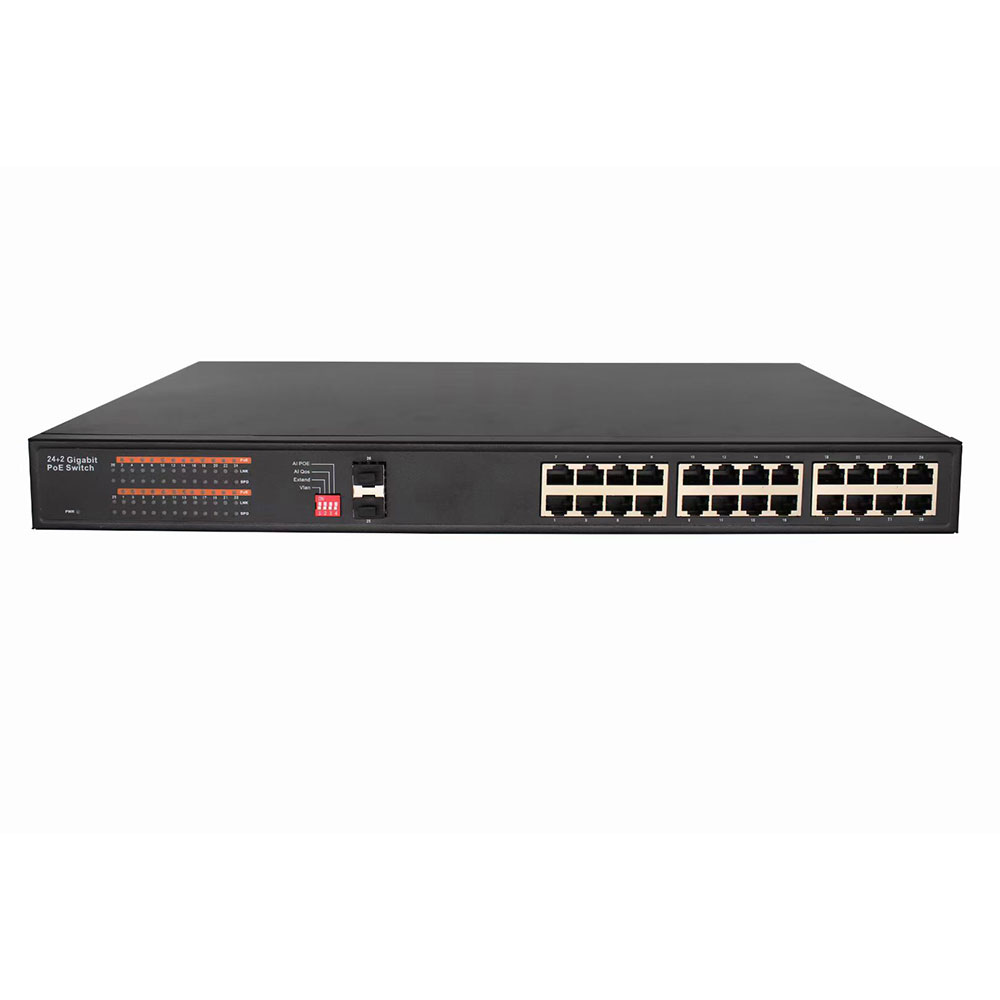

24 x 1GB RJ45, 2 x 1G SFP Layer 2 Managed POE Ethernet Switch
- Ask for a Quotation
- 5-Year Warranty
Description
24 x 10/100/1000Base-T, 2 x 100/1000Base-X SFP, Layer 2 Managed Rack-mount POE Ethernet Switch
CCS-7224MP is a highly reliable Layer 2 managed PoE Ethernet switch with 24 x 10/100/1000Base-T RJ45 ports and 2 x 100/1000Base-X SFP slots. With 4Mbit packet buffer, 56Gbps switching capacity and 38.69Mpps forwarding rate, it ensures wire-speed forwarding on all ports and smooth transmission of high-bandwidth network services.
CCS-7224MP supports IEEE 802.3af/at/bt PoE standards and provides up to 30W power output per port. The switch supports WEB management and rich Layer 2 features including VLAN, QoS, Link Aggregation, IGMP Snooping and GVRP for efficient network deployment and operation.
CCS-7224MP supports STP/RSTP/MSTP/ERPSv2 redundancy protocols to build reliable network topologies. Combined with SNMP and FIRO NMS management platform, it enables automatic device discovery, topology management, configuration management, performance monitoring and fault management.
Features
➢ 24*10/100/1000Base-T, 2*100/1000Base-X SFP slots
➢ Optional IEEE 802.3af/at/bt PoE support
➢ Up to 30W PoE output per port
➢ PoE power budget: 400W standard, 800W optional
➢ 4Mbit packet buffer, 56Gbps switching capacity, 38.69Mpps forwarding rate
➢ Support IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q and related Ethernet standards
➢ Store-and-forward switching architecture
➢ Support jumbo frames up to 10K bytes
➢ Support STP, RSTP, MSTP and ERPSv2 redundant ring protocols
➢ Support Port-based VLAN, IEEE 802.1Q VLAN and GVRP
➢ Support QoS with priority remarking and traffic classification based on VLAN, MAC, IP address and priority
➢ Support Link Aggregation and multicast management
➢ Support automatic MAC address learning and aging, 8K MAC address table
➢ Support IEEE 802.3x flow control and back pressure control
➢ Support WEB management interface
➢ Support SNMP and FIRO NMS management platform
➢ Support automatic device discovery, topology management, configuration management and fault management
➢ 128MB RAM and 32MB Flash memory
➢ 1 × RJ45 Console port for CLI management
➢ Reset button for reboot and factory default recovery
➢ AC 100-240V power input
➢ IP30 fan-less and 1U rack-mount installation
➢ Surge protection: ±4kV DC, ±6kV RJ45
➢ Operation temperature: 0°C ~ +50°C
