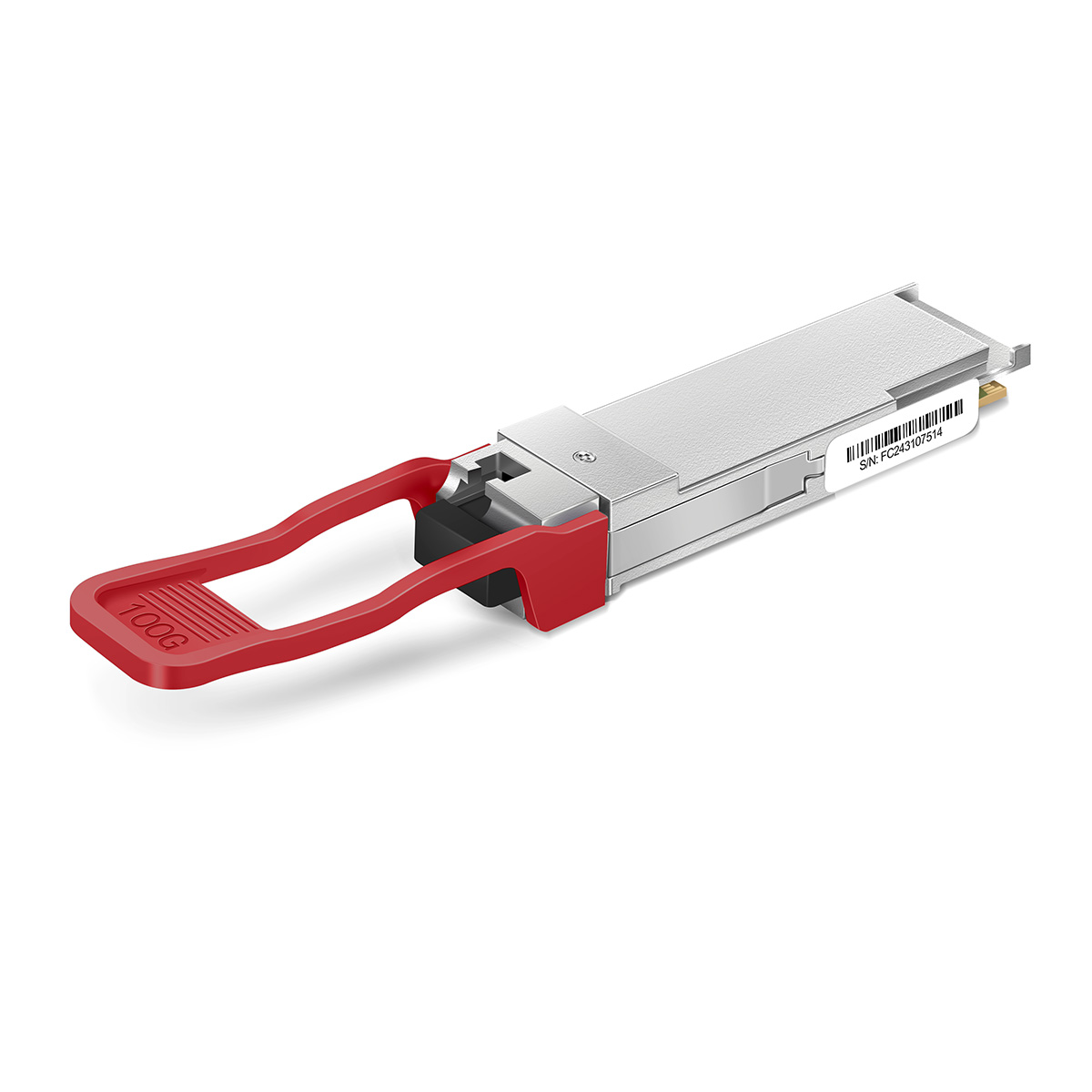

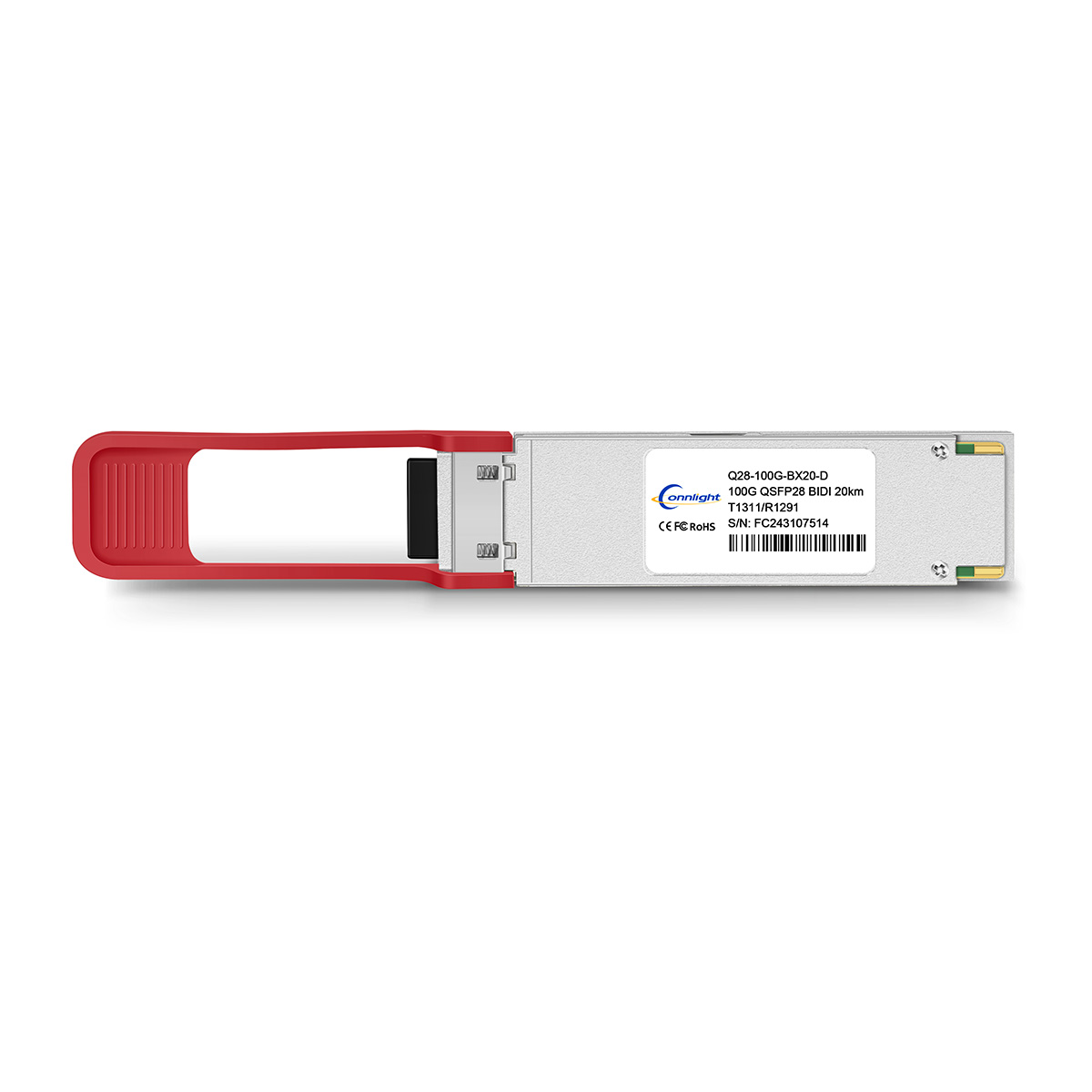

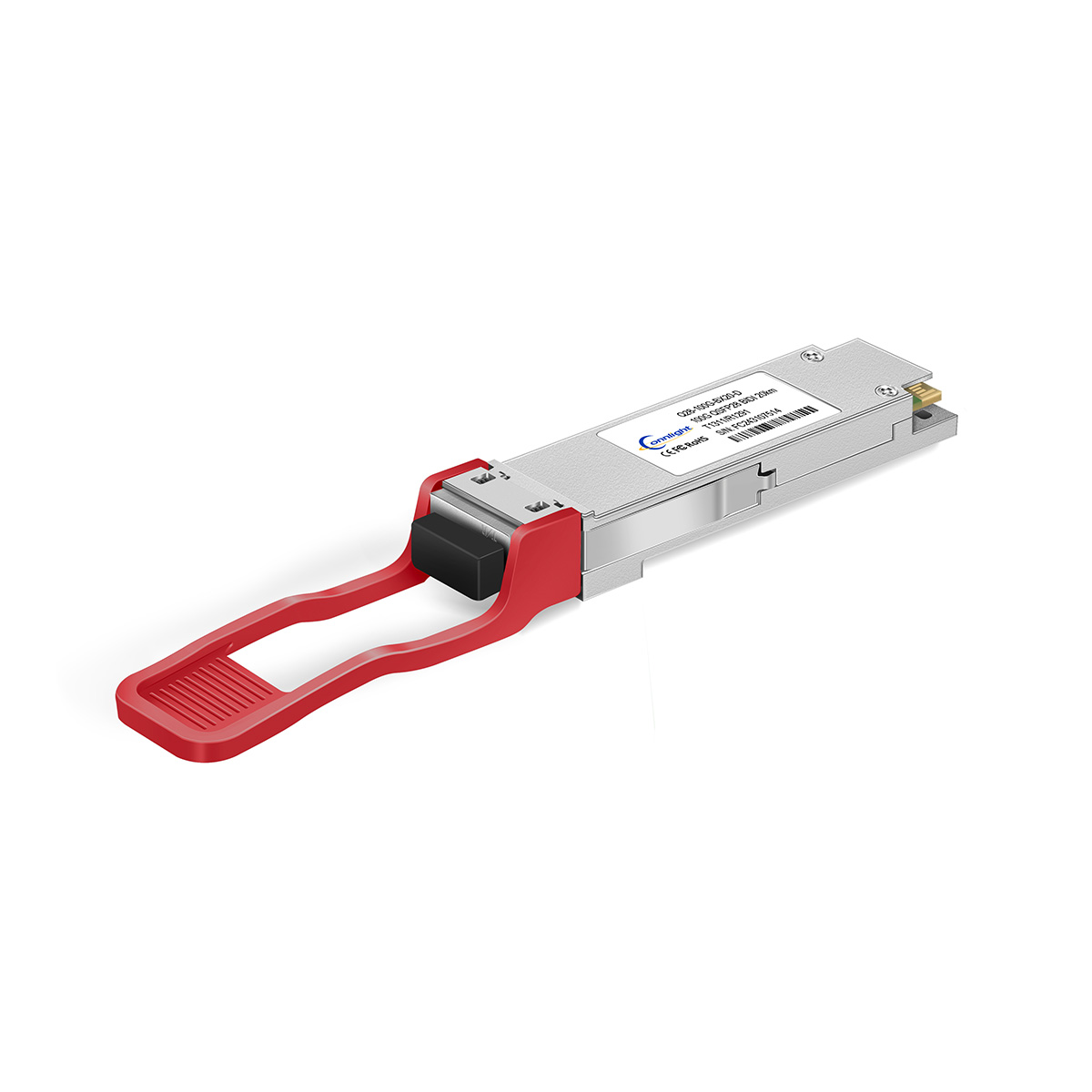

QSFP28 100GBASE-BX20-D BiDi 1311nm-TX/1291nm-RX 20km DOM Simplex LC/UPC SMF Optical Transceiver Module
$360.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description
100GBASE-BX20 QSFP28 Optical Transceiver Module for Ethernet and Data Center (SMF, 1311nm-TX/1291nm-RX, 20km, LC, DOM)
The Compatible QSFP28 transceiver provides 100GBase-BX throughput up to 20km over single-mode fiber (SMF) using a wavelength of 1311nmTx/1291nmRx via an LC connector. This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, data center, and storage area networks applications.
Product Details
| P/N | Q28-100G-BX20-D | Vendor Name | Connlight |
| Form Factor | QSFP28 | Max Data Rate | 106.25Gbps |
| Wavelength | 1311nm-TX/1291nm-RX | Max Distance | 20km |
| Connector | Simplex LC | Transmitter Type | EML |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -4.3~4.5dBm | Minimum Receiver Power | -14.5dBm |
| Application | Data Center, 100GBASE Ethernet | Modulation Format | PAM4 |
| Protocols | 100G Ethernet, QSFP28 MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
