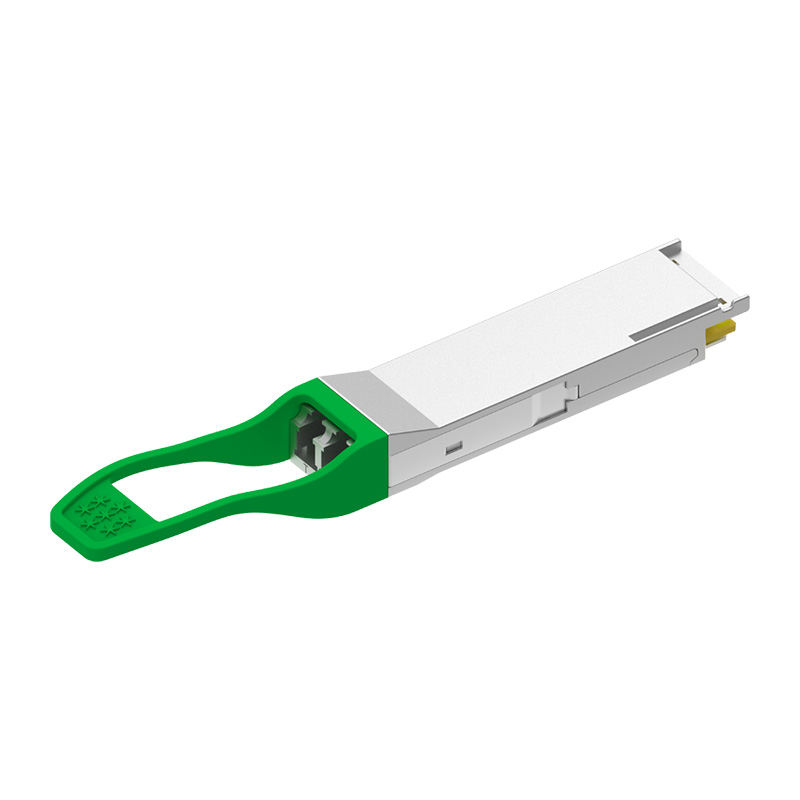

Generic Compatible QSFP56 200GBASE-FR4 1310nm 2km DOM Duplex LC/UPC SMF Optical Transceiver Module
$650.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description
QSFP56 200GBASE-FR4 1310nm 2km DOM Duplex LC/UPC SMF Optical Transceiver Module
200G InfiniBand HDR QSFP56 FR4 Transceiver Module is designed for 200GBASE Ethernet link up to 2km over single-mode fiber (SMF) using a wavelength of 1271nm to 1331nm with duplex LC connectors. The module supports four electrical interface channels and operates in 50G PAM4 coding mode, resulting in 200G (4x50G) data rates. It is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024 and SFF-8679 standards. The built-in digital diagnostic monitoring (DDM) allows access to real-time operating parameters. It is suitable for 200G Ethernet, InfiniBand HDR, data centers, and cloud networks.
| P/N | QSFP-200G-FR4 | Vendor Name | Connlight |
| Form Factor | QSFP56 | Max Data Rate | 212.5Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Max Distance | 2km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Duplex LC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | EML CWDM4 | Receiver Type | PIN |
| TX Power | -4.2~+4.7dBm | Receiver Sensitivity | < -8.2dBm |
| Operation Temperature | 15 to 65°C (59 to 149 °F) | Maximum Power | < 6.5W |
| Protocols | QSFP56 MSA, IEEE 802.3bs 200GBASE-FR4 | Application | 200G InfiniBand HDR,200G Ethernet Data Center Interconnect |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
