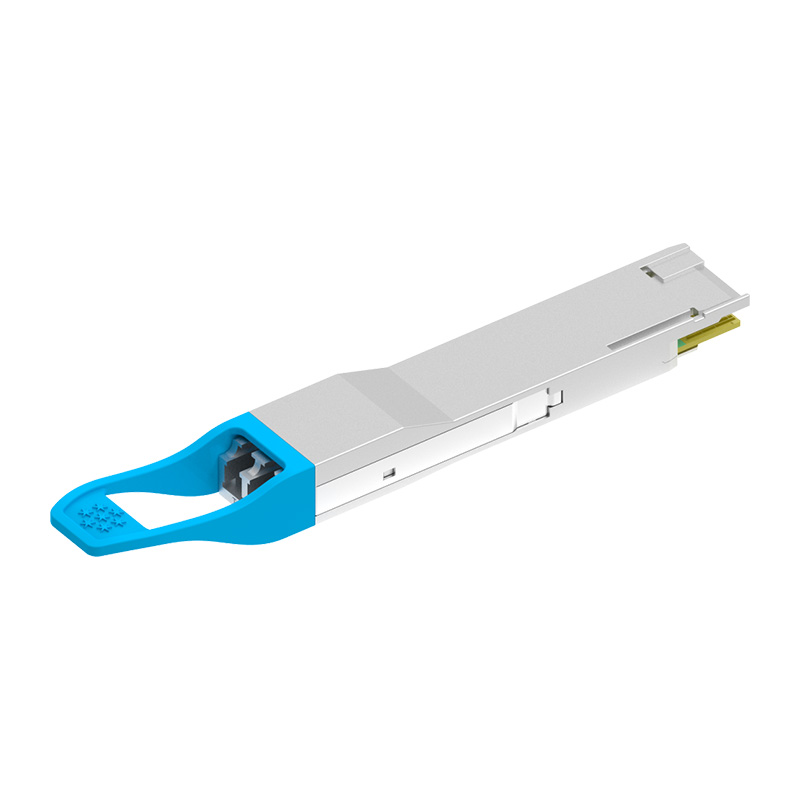

Generic Compatible QSFP56 200GBASE-LR4 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module
$1,500.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
SKU:
85003
Category: 200G QSFP56/QSFP-DD
Description
QSFP56 200GBASE-LR4 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module
200G QSFP-DD LR4 designed for 5G mid-haul and backhaul applications. It is a portfolio of pluggable optical transceiver modules designed for data centers 200G LR4 Ethernet links up to 10 km on dual SMFs without FEC. It features a QSFP-DD form factor with an LC connector and is QSFP-DD MSA compliant.
P/N | QSFP-200G-LR4 | Vendor Name | Connlight |
Form Factor | QSFP56 | Max Data Rate | 200Gbps |
Wavelength | 1310nm | Max Distance | 10km |
Media | SMF | Transmitter Type | DFB |
Connector | Duplex LC | Voltage Supply | 3.3V |
Modulation Format | PAM4 | DDM Support | Yes |
Transmitter Type | DFB LWDM | Receiver Type | PIN |
TX Power | -3.4~5.3dBm | Receiver Sensitivity | <-9.7dBm |
Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 5W |
Protocols | QSFP56 MSA, IEEE 802.3bs | Application | 200G InfiniBand HDR,200G Ethernet Data Center Interconnect |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
