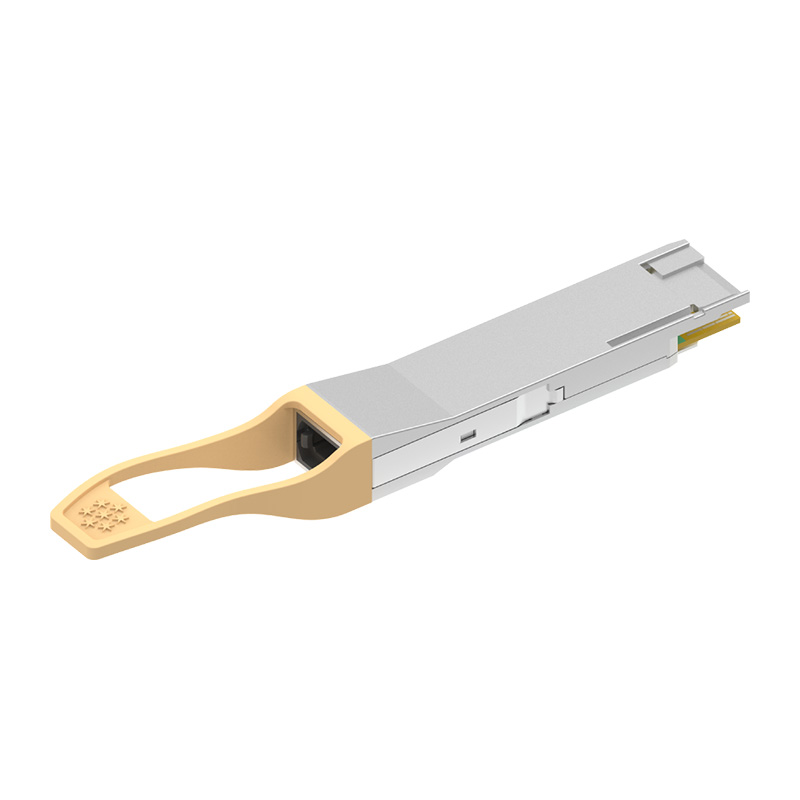

Generic Compatible QSFP56 200GBASE-SR4 850nm 100m DOM MPO-12/UPC MMF Optical Transceiver Module

$200.00

  • 100% OEM Compatible
  • 30-Day Easy Return
  • 5-Year Warranty
SKU: 85002 Category:
Description

QSFP56 200GBASE-SR4 850nm 100m DOM MPO-12/UPC MMF Optical Transceiver Module

P/NQSFP-200G-SR4Vendor NameConnlight
Form FactorQSFP56Max Data Rate212.5Gbps
Wavelength850nmMax Distance70m on OM3/100m on OM4
Modulation FormatPAM4Host RequiredFEC
ConnectorMTP/MPO-12Voltage Supply3.3V
Cable TypeMMFDDM SupportYes
Transmitter Type850nm VCSELReceiver TypePIN
TX Power-6.5~+4.0dBmReceiver Sensitivity< -8.4dBm
Operation Temperature0 to 70°C (32 to 158°F)Maximum Power< 5W
ProtocolsQSFP56 MSA, IEEE 802.3bsApplication200G InfiniBand HDR,200G Ethernet
Data Center Interconnect

Quality Assurance

Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Certification

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

Test equipment
