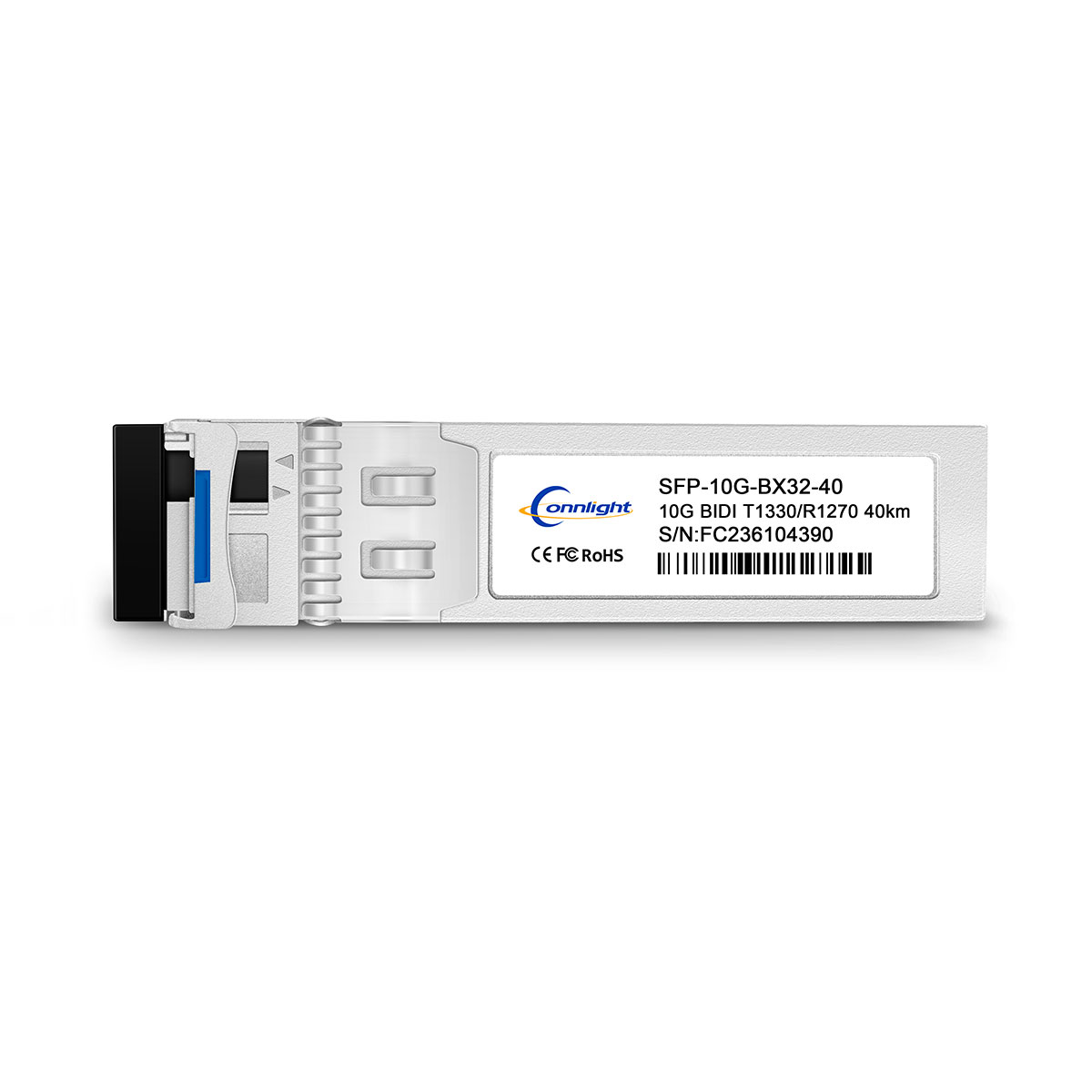

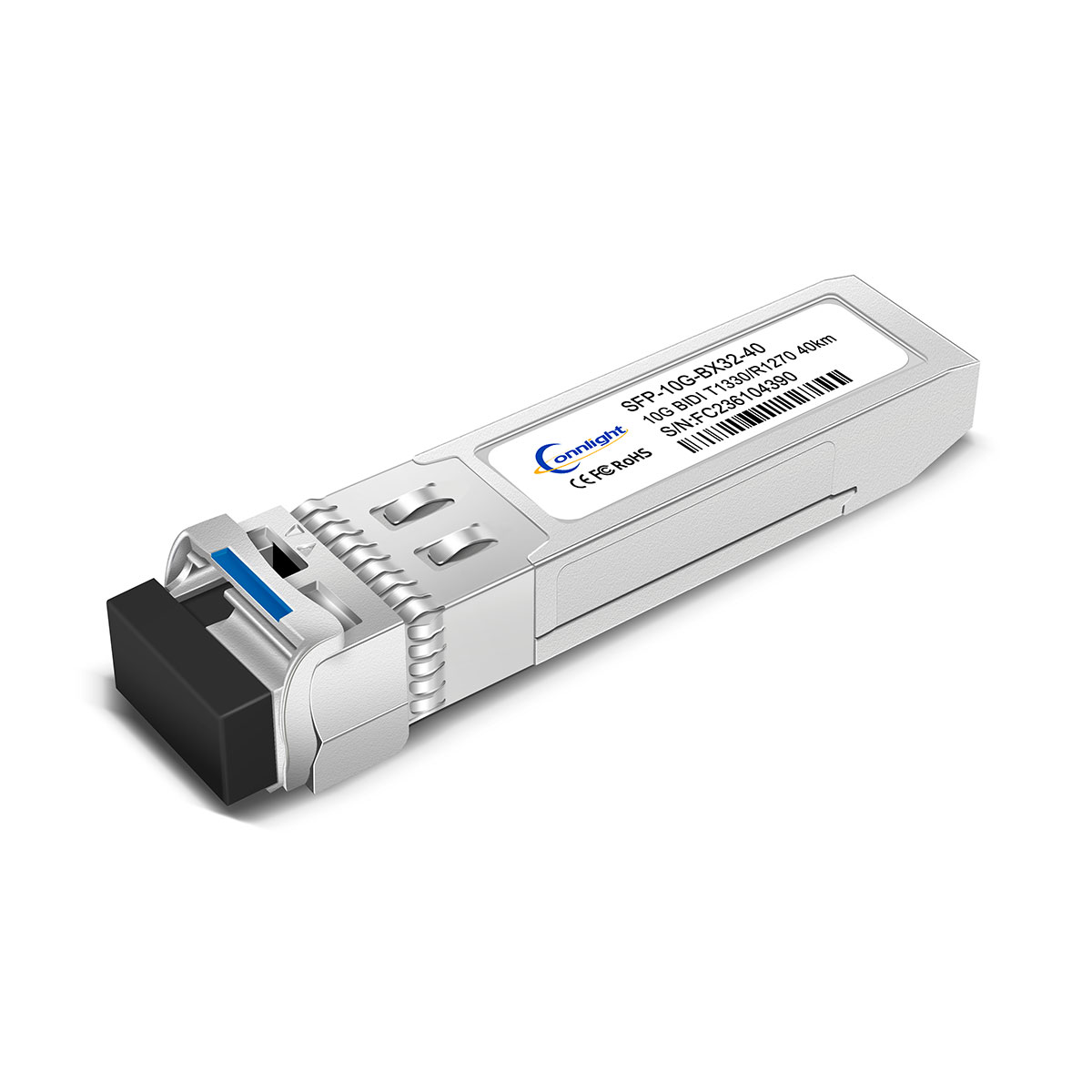

SFP+ 10GBASE-BX40-D BiDi 1330nm-TX/1270nm-RX 40km DOM Simplex LC/UPC
$48.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
SKU:
62247
Category: 10G BIDI SFP+
Description
10G BX SFP+ BIDI Transceiver Module (TX1330nm/RX1270nm SMF 40km LC DDM)
The 10G BiDi SFP+ transceivers support up to 10 km over single LC SMF fiber, following IEEE 802.3ae and SFP+ MSA 10GBase-LR. The SFP+ transceivers are high-performance, cost-effective modules. The transceiver module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-LR/LW per IEEE 802.3ae ), and 10G Fibre Channel.
Product Details
P/N | SFP-10G-BX32-40 | Vendor Name | Connlight |
Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
Wavelength | TX1330nm/RX1270nm | Max Distance | 40km |
Connector | Simplex LC | Transmitter Type | 1330nm DFB |
Cable Type | SMF | Receiver Type | PIN |
TX Power | -1.0~+5.0dBm | Receiver Sensitivity | < -15.0dBm |
Protocols | 10G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
