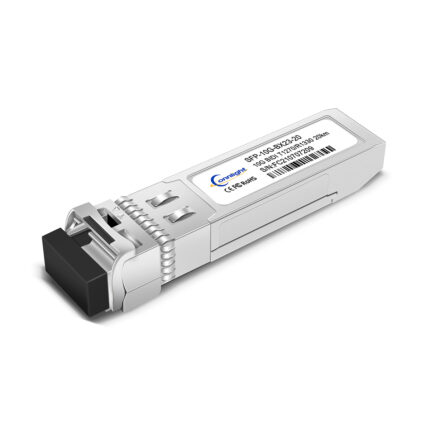

10G BX SFP+ BIDI Transceiver Module (TX1330nm/RX1270nm SMF 20km LC DDM)
The 10G BiDi SFP+ transceivers support up to 10 km over single LC SMF fiber, following IEEE 802.3ae and SFP+ MSA 10GBase-LR. The SFP+ transceivers are high-performance, cost-effective modules. The transceiver module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-LR/LW per IEEE 802.3ae ), and 10G Fibre Channel.
Product Details
P/N | SFP-10G-BX32-20 | Vendor Name | Connlight |
Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
Wavelength | TX1330nm/RX1270nm | Max Distance | 20km |
Connector | Simplex LC | Transmitter Type | 1330nm DFB |
Cable Type | SMF | Receiver Type | PIN |
TX Power | -3.0~+2.0dBm | Receiver Sensitivity | < -14.4dBm |
Protocols | 10G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
