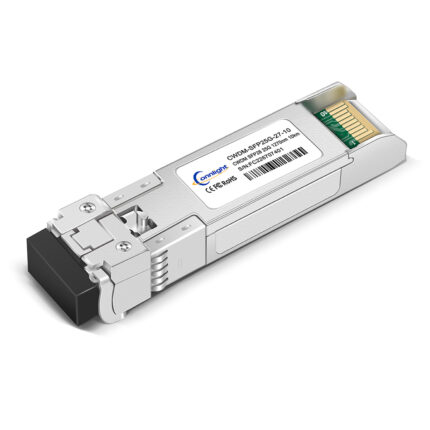

25G CWDM SFP28 1270nm-1570nm 10km DOM LC SMF Optical Transceiver Module
Price range: $50.00 through $400.00
SFP-10/25G-85-CSR-S Compatible SFP28 10/25GBASE-CSR Dual-rate 850nm 400m DOM Duplex LC/UPC MMF
$45.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description

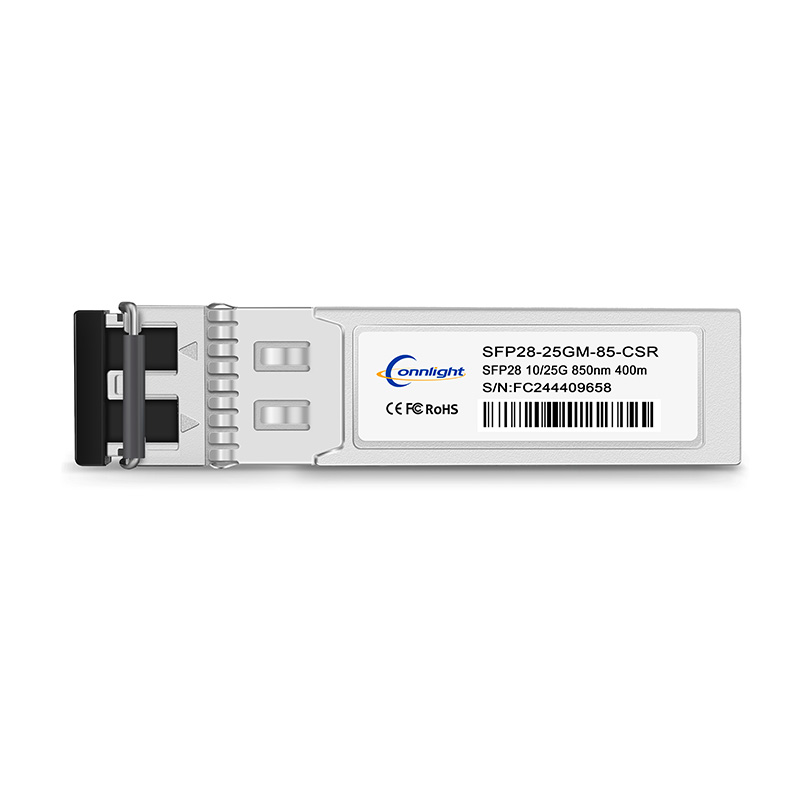

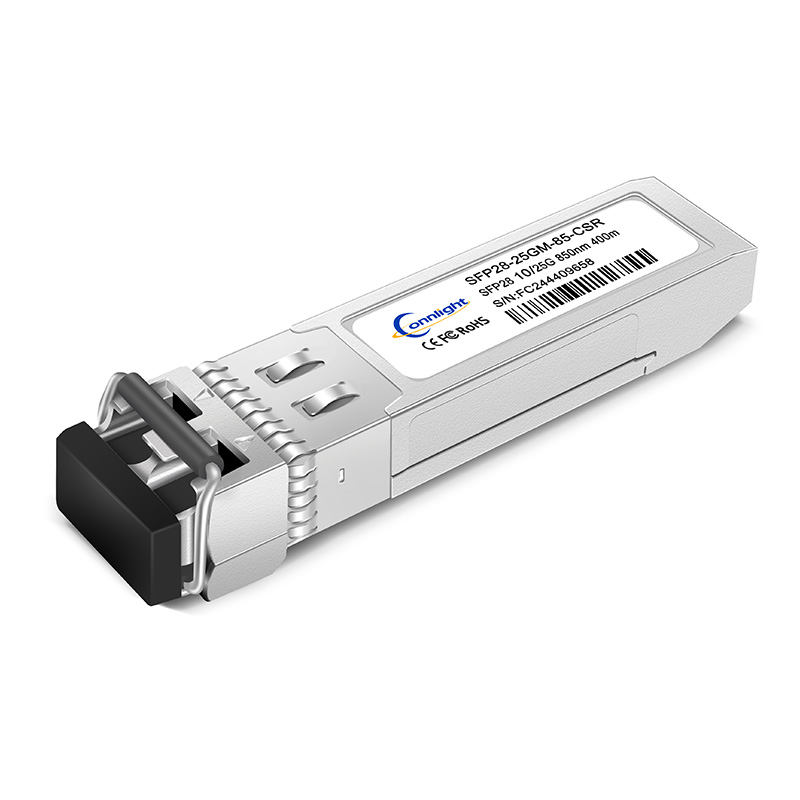

SFP-10/25G-85-CSR-S Compatible Dual-Rate 10/25GBASE-SR SFP28 Optical Transceiver Module (MMF, 850nm, 400m, LC, DDM)
The SFP-10/25G-CSR-S compatible dual-rate 10G/25G SFP28 transceiver module is equipped with LC duplex connectors, reaching a link up to 300m over laser-optimized OM3 multimode fiber (400m over OM4 MMF). This 10G/25G optical transceiver comes with an SFP28 connector, enabling 10 Gbps and 25 Gbps bandwidth. DOM/DDM (digital diagnostics monitoring) function is supported on the 25G fiber optic transceiver to achieve real-time operating parameters monitoring.
| P/N | SFP-10/25G-85-CSR-S | Vendor Name | Connlight |
| Form Factor | SFP28 | Data Rate | 10/25 Gbps |
| Wavelength | 850nm | Distance | 400m@OM4 300m@OM3 |
| Connector | LC Duplex | Cable Type | OM3/OM4 MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -7.3 to +2.4dBm (10G) -6 to +2.4dBm (25G) | Receiver Sensitivity | <-9.9dBm (10G) <-8.7dBm (25G) |
| Power Consumption | <1.2W | Modulation Format | NRZ |
| DDM | Support | Bit Error Ratio (BER) | 1E-12 |
| Protocols | IEEE 802.3ba, SFP28 MSA | Warranty | 5 Years |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
