SFP28 25GBASE-BX10-U BiDi 1270nm-TX/1330nm-RX 10km DOM Simplex LC/UPC SMF
$50.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description

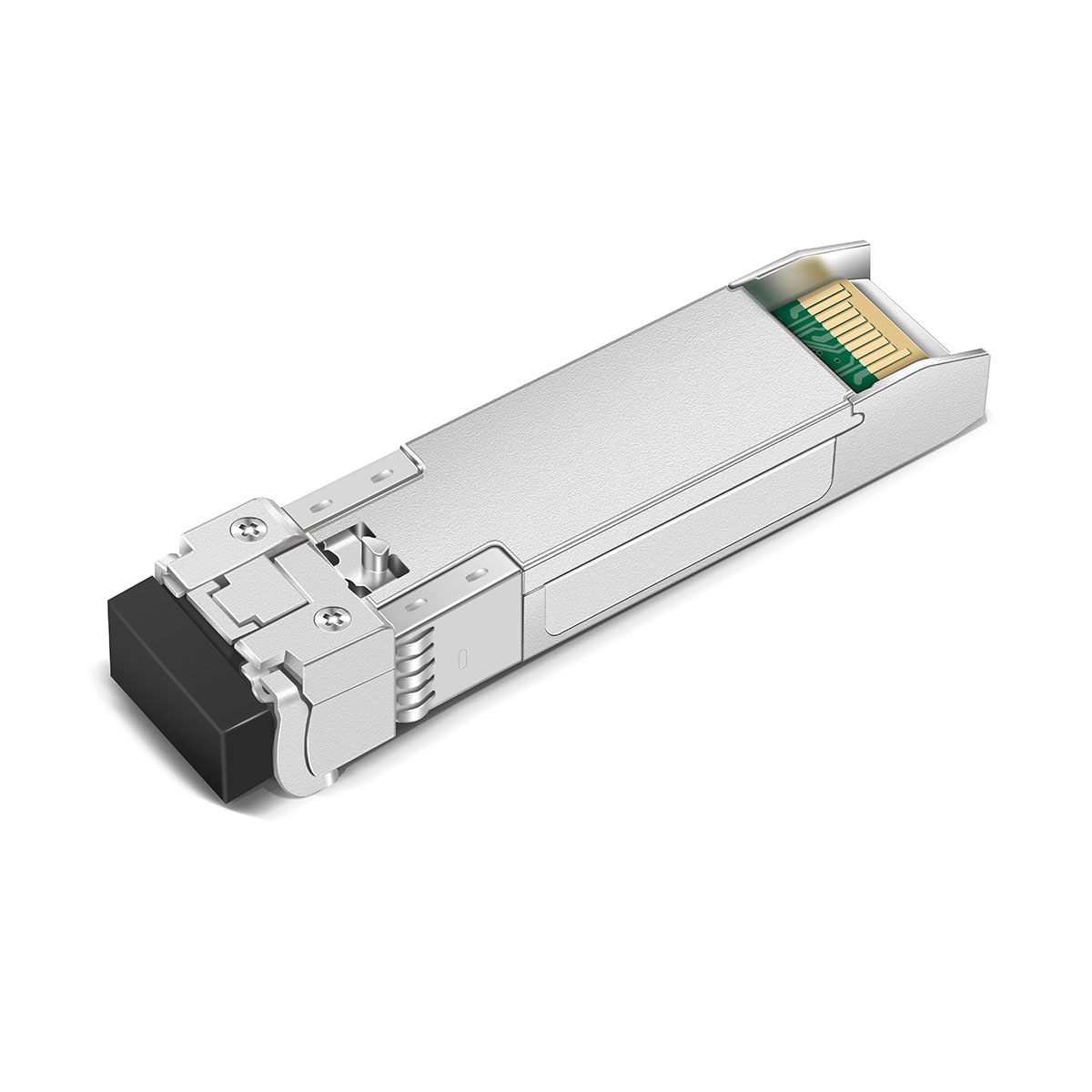

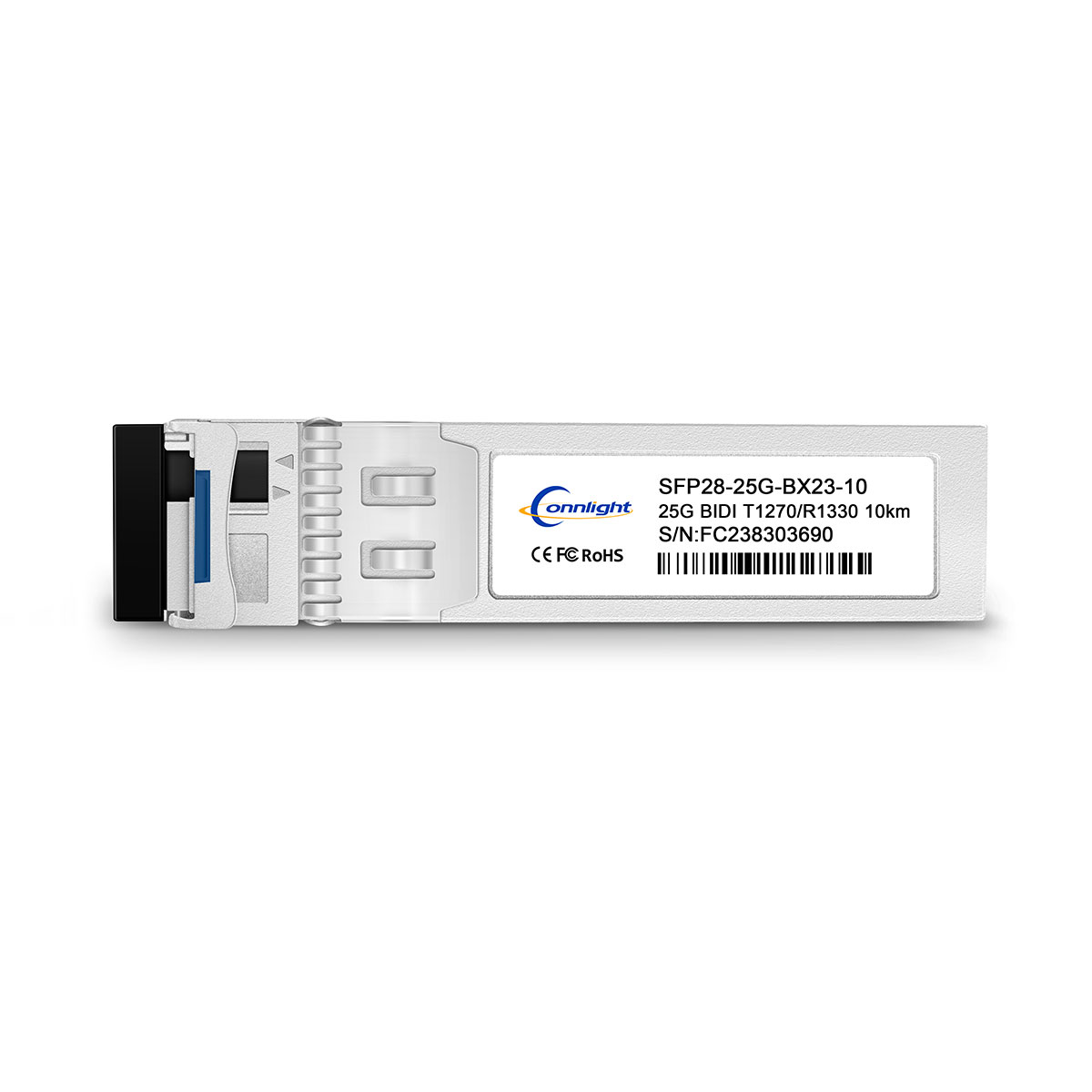

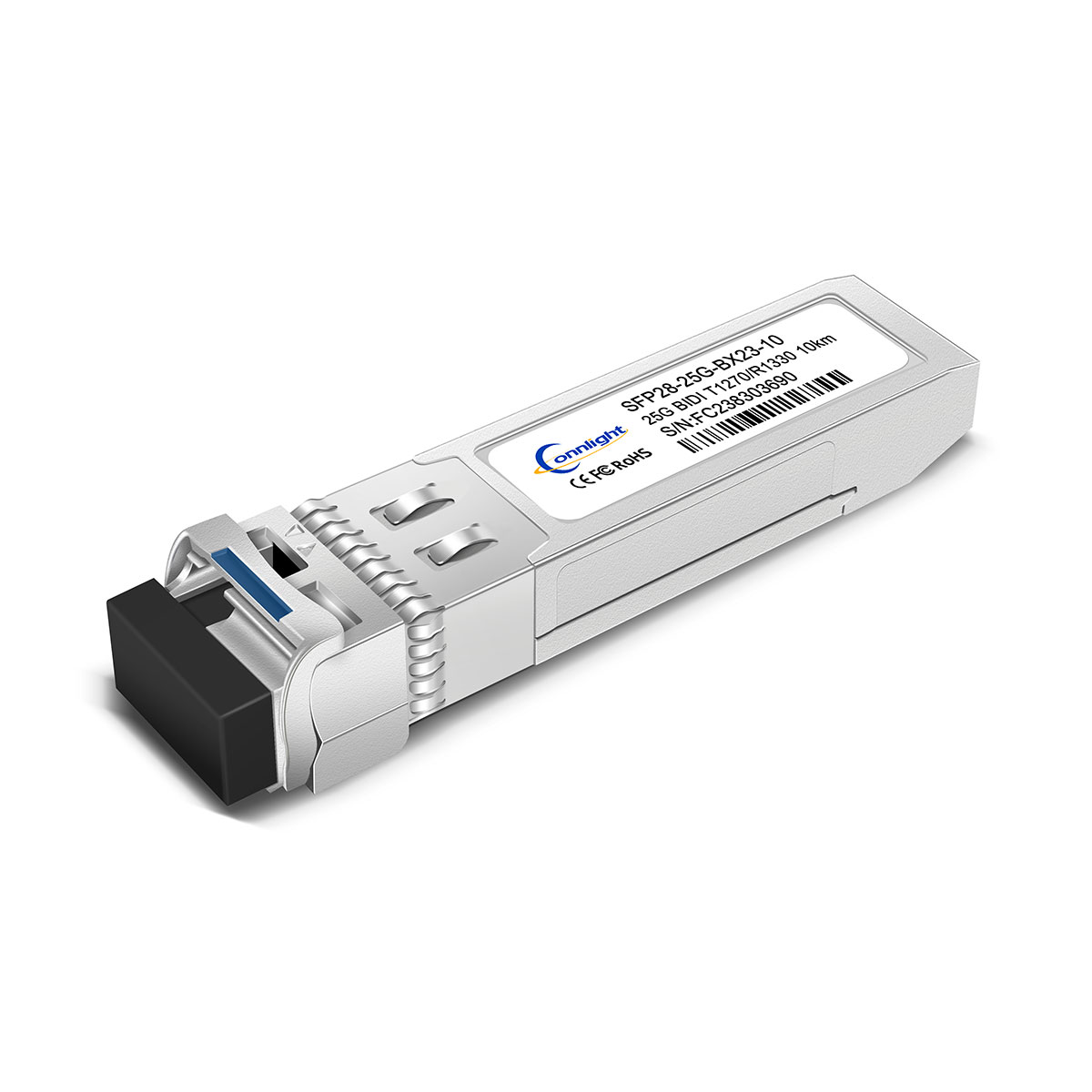

25G BX BIDI SFP28 Transceiver Module (TX1270nm/RX1330nm SMF 10km LC DDM)
The 25G BX BIDI SFP28 transceivers are high-performance, cost-effective modules supporting a data rate of 25.78Gbps and a 10km transmission distance with SMF. The transceiver consists of a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Product Details
| P/N | SFP28-25G-BX23-10 | Vendor Name | Connlight |
| Form Factor | SFP28 | Max Data Rate | 25.78 Gbps |
| Wavelength | TX1270nm/RX1330nm | Max Distance | 10km |
| Connector | Simplex LC | Transmitter Type | 1270nm DFB |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -4.0~+4.0dBm | Receiver Sensitivity | < -13.3dBm |
| Protocols | SFF-8472, MSA Compliant | Operation Temperature | -40 to 85°C (-40 to 185°F) |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
