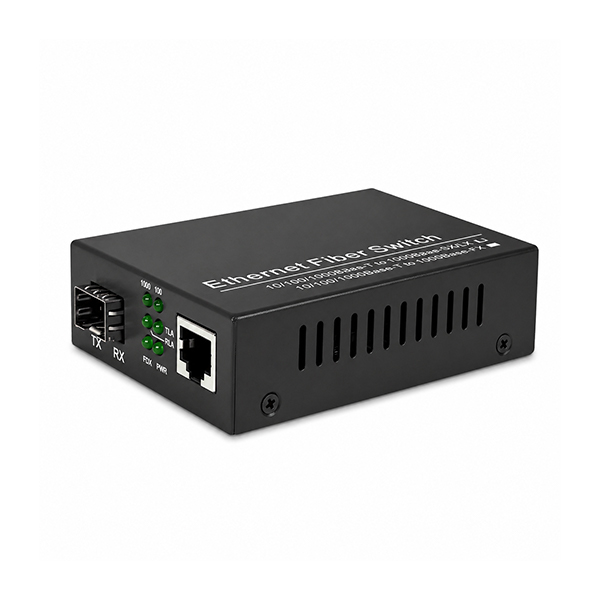

Gigabit Ethernet Unmanaged Media Converter, 1x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP Slot
$23.00
- 3-Year Warranty
- 30-Day Easy Return
Description
MC-5201, Gigabit Ethernet Network Media Converter (1x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP)
This fiber to Gigabit Ethernet media converter is configured with a 10/100/1000Base-T RJ45 port and a 1000Base-X SFP port. It is used to contact the RJ45 port switch with the SFP port switch by transferring the copper network to a fiber network and extending the transmission distance of the copper network system at speeds of 1Gbps. Media converters are widely used in structured cabling systems to interconnect fiber optic cabling systems with existing copper cables.
The fiber optic media converter is compatible with a wide range of 1G SFP transceivers, including 1000BASE-SX/LX, BiDi SFP, CWDM SFP, etc. All of the optical transceivers are available at Connlight.
| PN | MC-5201 | Ports | 1 x Gigabit SFP Port 1 x 10/100/1000M RJ45 Port (Auto MDI/MDIX) |
| Cable Type (Fiber) | Multimode 50/125µm, 62.5/125µm Single-mode 9/125µm | Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,IEEE 802.3z, IEEE 802.3x |
| LED Indicators | LNK/ACT,1000M, 100M, FDX, PWR | Cable Type (Copper) | UTP Cat 5, 5e, 6 Cable (Maximum 100m) EIA/TIA-568 100Ω STP (Maximum 100m) |
| Power Consumption | Full-load<3W | DIP Switch | LFP |
| Operation Mode | 10/100Mbps for Half/Full duplex 1000Mbps for Full Duplex | Jumbo Frame | 9k |
| MTBF (hrs) | >50,000Hrs | Dimensions (HxWxD) | 1.02”x 2.76”x 3.82” (26x70x97mm) |
| Operating Temperature | 0°C to 50°C | Latency | 20us |
| Relative Humidity | 5%~90% (Non-condensation) | Input Power | DC 5V |
