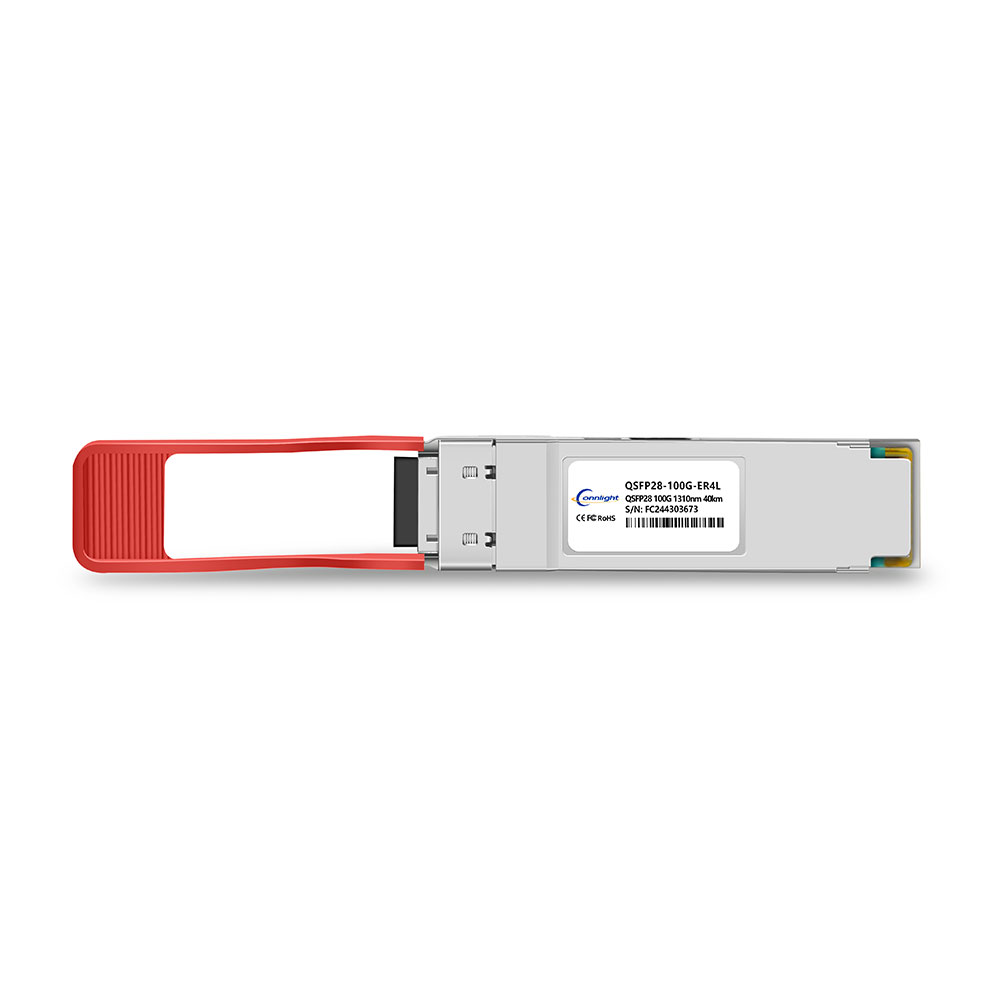

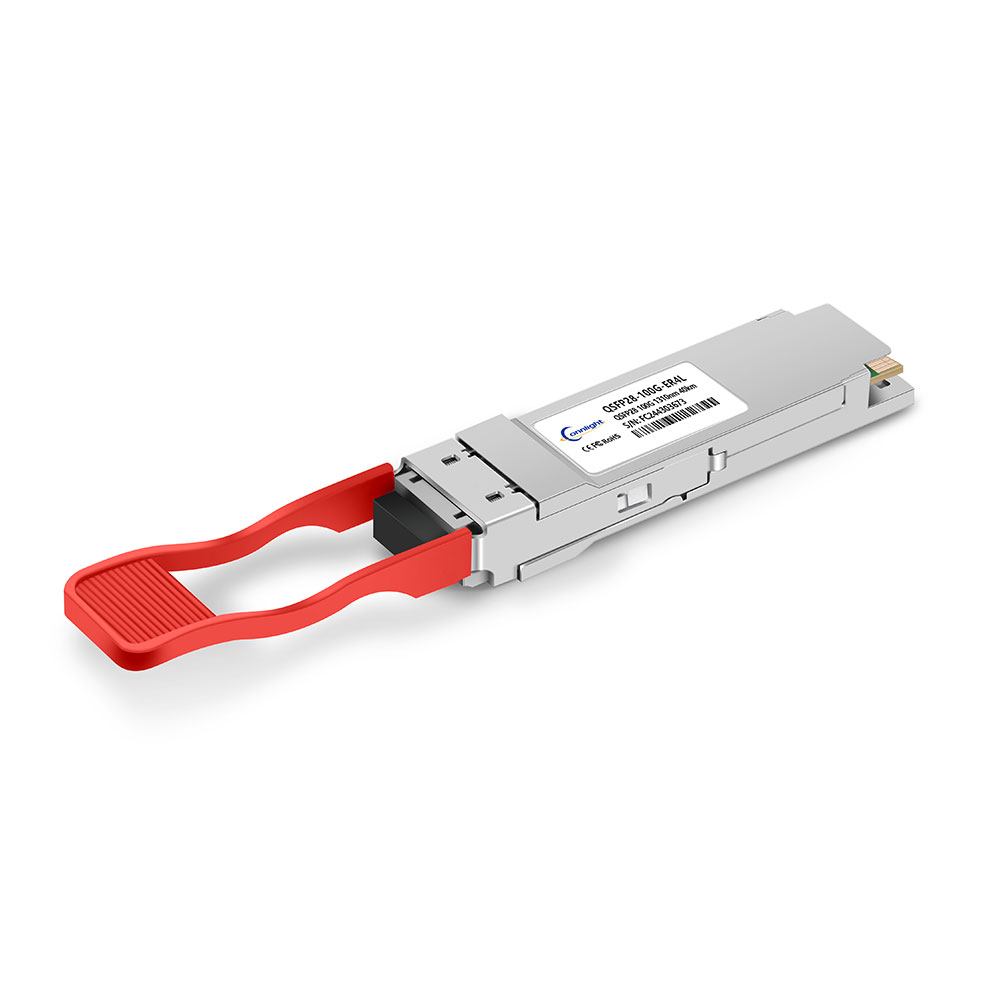

100GBASE-ER4L QSFP28 1310nm 40km with FEC,30km without FEC DOM Duplex LC/UPC SMF Transceiver Module
$800.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
Description
100GBASE-ER4L QSFP28 ER4 Lite Optical Transceiver Module (SMF, 1310nm LWDM, 40km with FEC,30km without FEC, LC, DOM)
The 100G QSFP28 ER4 Lite transceiver module is designed for use in 100 Gigabit Ethernet links on up to 40km with FEC,30km without FEC of single-mode fiber. It is compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-ER4 Lite, and IEEE 802.3bm CAUI-4. The digital diagnostics function is available via the I2C interface, as specified by the QSFP28 MSA.
Product Details
| P/N | QSFP28-100G-ER4L | Vendor Name | Connlight |
| Form Factor | QSFP28 | Max Data Rate | 103.1Gbps |
| Wavelength | 1295.56nm, 1300.05nm 1304.58nm, 1309.14nm | Max Distance | 30km without FEC 40km with FEC |
| Connector | Duplex LC | Transmitter Type | LAN WDM EML |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | -2.9~+4.5dBm | Receiver Sensitivity | <-16.9dBm without FEC <-20.9dBm with FEC |
| Protocols | 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
