1x 10/100/1000Base-T POE RJ45 to 1x 1000Base-X SFP Slot Gigabit Ethernet Mini Unmanaged Media Converter
$46.00
- 3-Year Warranty
- 30-Day Easy Return
Description

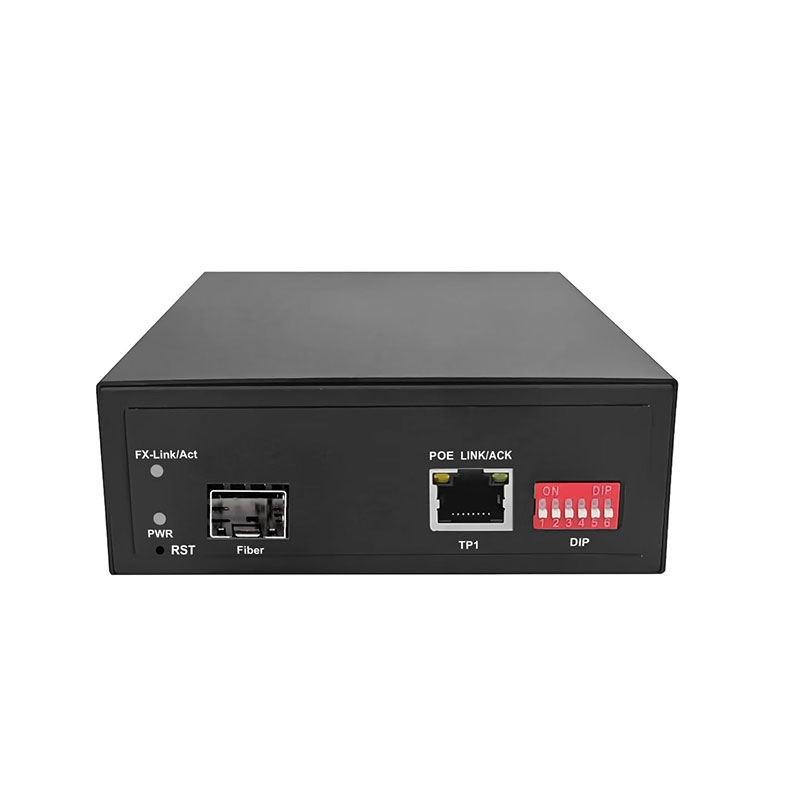

MC-5201-P, Mini Gigabit PoE Ethernet Media Converter (1 x 10/100/1000Base-T PoE RJ45 to 1 x 100/1000Base-X SFP)
This PoE fiber media converter is equipped with one 10/100/1000Base-T PoE RJ45 port and one 100/1000Base-X SFP port, providing media conversion between copper and fiber networks while delivering power and data over a single Ethernet cable. Compliant with IEEE 802.3af/at standards, it functions as a Power Sourcing Equipment (PSE) and can supply up to 30W PoE power to connected Powered Devices (PDs). The converter supports 1000Base-FX and can be forced to operate at 100Base-FX via DIP switch settings. Additional features include Link Fault Pass-through (LFP), Auto-Negotiation, over-current protection, ALS, AI PoE, and plug-and-play operation. It supports desktop and wall-mount installation.
| PN | MC-5201-P | Ports | 1 x 10/100/1000Base-T PoE RJ45 Port 1 x 100/1000Base-X SFP Port |
| PoE Standard | IEEE 802.3af/at | Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| LED Indicators | PWR, FX Link/Act, TP Link/Act, PoE | Max PoE Power | 30W |
| DIP Switch | FX Reset / FX Speed / PoE Shutdown / LFP / ALS / AI PoE | Protection Grade | IP30 Aluminum Case |
| Transmission Mode | Store-and-Forward, Half/Full Duplex | Jumbo Frame | 9k |

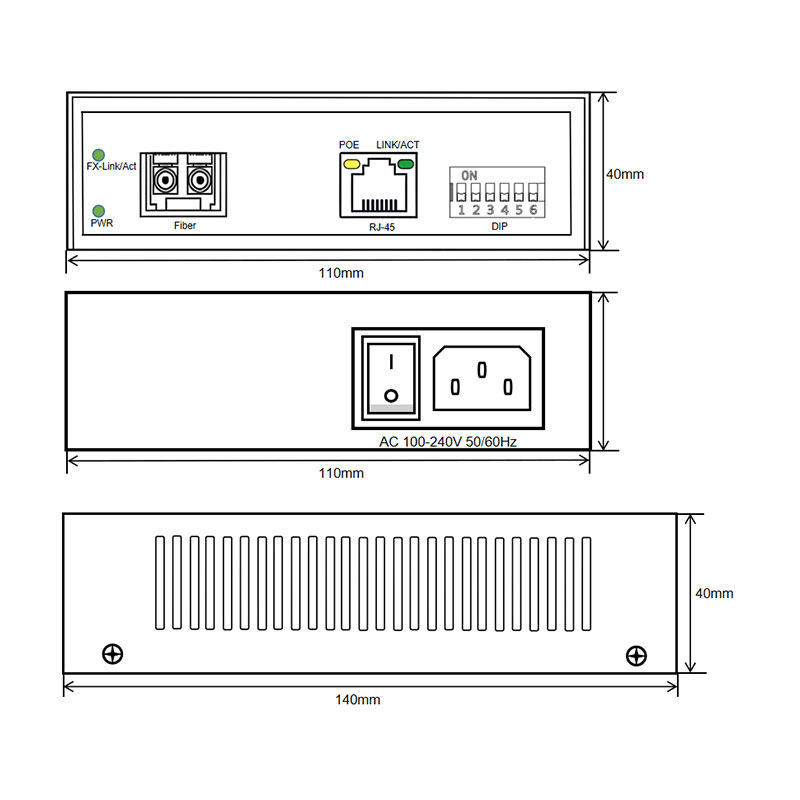

| MTBF (hrs) | >100,000Hrs | Dimensions (HxWxD) | 1.57” × 4.33” × 5.51” (40 × 110 × 140mm) |
| Operating Temperature | 0°C to 50°C | Warranty | 3 Years |
| Relative Humidity | 5%~90% (Non-condensation) | Input Power | AC 100~240V, 50/60Hz |
