1 x 10/100/1000BASE-T, 1 x 1000BASE-X SFP Unmanaged Industrial PoE Media Converter
$86.00
- 3-Year Warranty
- 30-Day Easy Return
Description

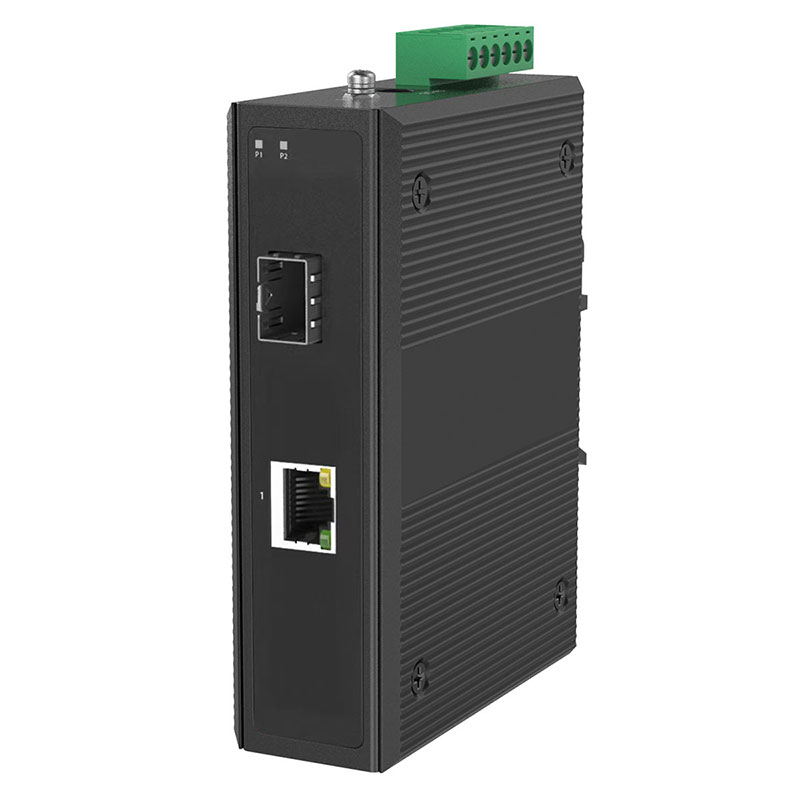

CIS-5101-UP, 1 x 10/100/1000BASE-T, 1 x 1000BASE-X SFP Unmanaged Industrial PoE Media Converter
This unmanaged industrial PoE media converter is equipped with 1-port 10/100/1000BASE-T RJ45 interface and 1-port 1000BASE-X SFP fiber interface. It supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z and IEEE 802.3x standards, adopting store-and-forward switching architecture. With up to 512Kbit packet buffer and 14Gbps non-blocking switching fabric, it ensures wire-speed forwarding on all ports and smooth transmission for bandwidth-intensive applications. The converter supports IEEE 802.3af/at PoE with up to 30W output on the RJ45 port.
This series supports redundant DC power inputs, reverse polarity protection and overload current protection. It features an IP40-rated aluminum enclosure, fanless passive cooling design, DIN-rail or wall mounting installation, and operates reliably in temperatures ranging from -40°C to +75°C.

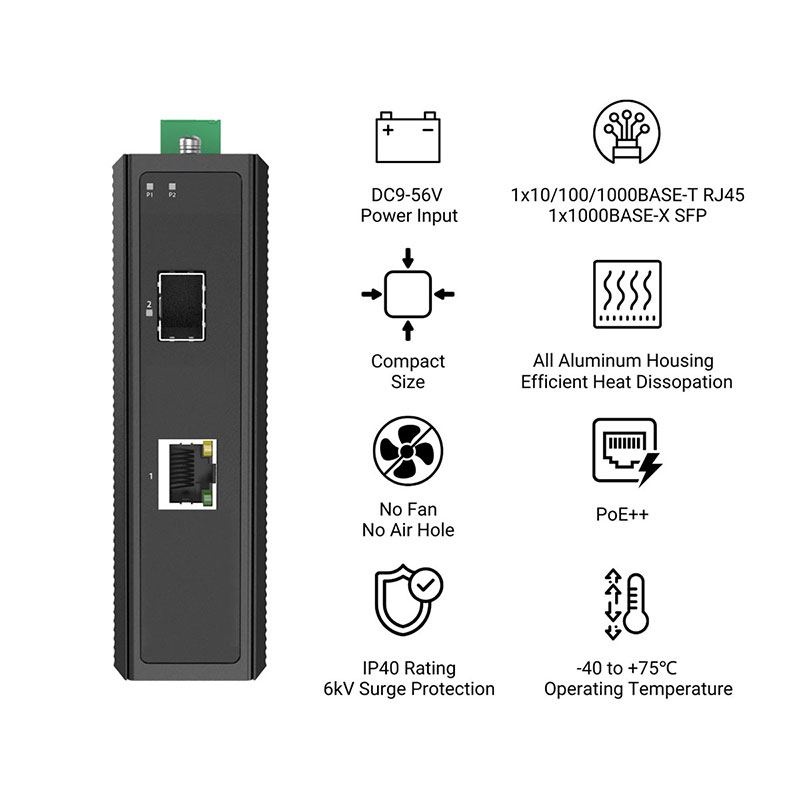

Features
➢ 1*10/100/1000M RJ45 PoE port, 1*1000Base-X SFP slot
➢ Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z and IEEE 802.3x standards
➢ Support IEEE 802.3af/at PoE standards, PSE mode
➢ Up to 30W PoE output per port
➢ Store-and-forward switching architecture
➢ 14Gbps non-blocking switching fabric
➢ 512Kbit packet buffer
➢ Support wire-speed forwarding on all ports
➢ Support 9K Bytes Jumbo Frame
➢ Redundant DC power inputs
➢ Reverse polarity protection and overload current protection
➢ 6KV surge protection (IEC61000-4-5)
➢ IP40 fan-less and Din-rail hardware design
➢ Operation temperature:-40°C to +75°C
