8 x 1GB RJ45 , 4 x 10GB SFP+ , L3 Managed Industrial Ethernet Switch
- Ask for a Quotation
- 5-Year Warranty
Description

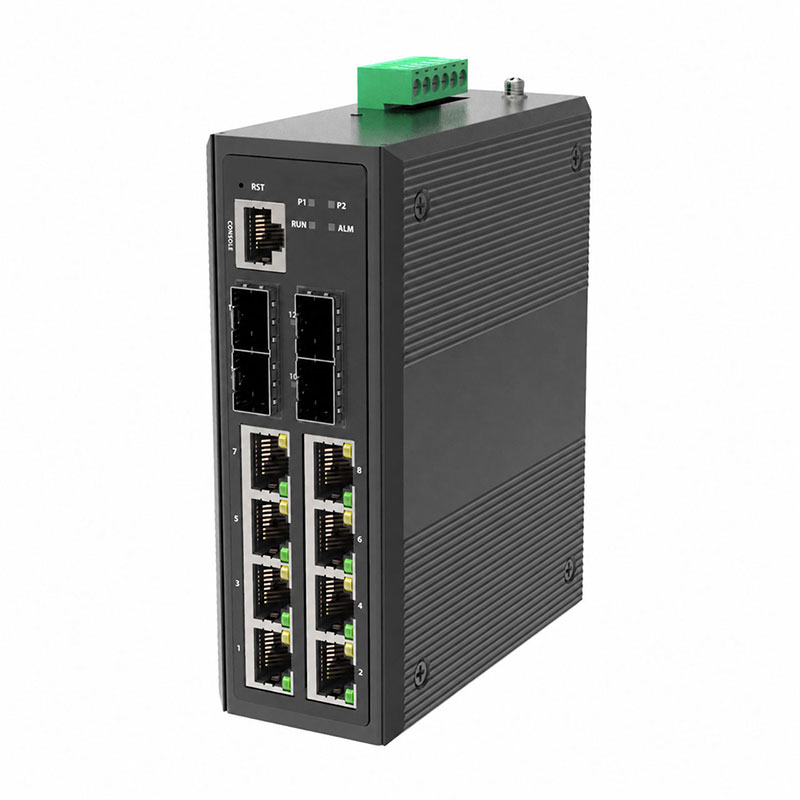

8 x 10/100/1000Base-TX , 4 x 1G/2.5G/10GBase-X SFP+ , L3 Managed Industrial Ethernet Switch
The CIS-6408M switch is the highly reliable managed industrial Ethernet switch with8-port 10/100/1000-T RJ45 and 4-port 1G/10GBase-X SFP+ slots. It supports ERPS redundant network and the self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution. It also supports IPv4/IPv6 static routing, DHCP server and robust Layer3 management and secure function, which can fulfill the special needs of industrial automation applications.
It is the high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input9-56VDC, redundant power design with polarity reverse protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and crucial.
Features

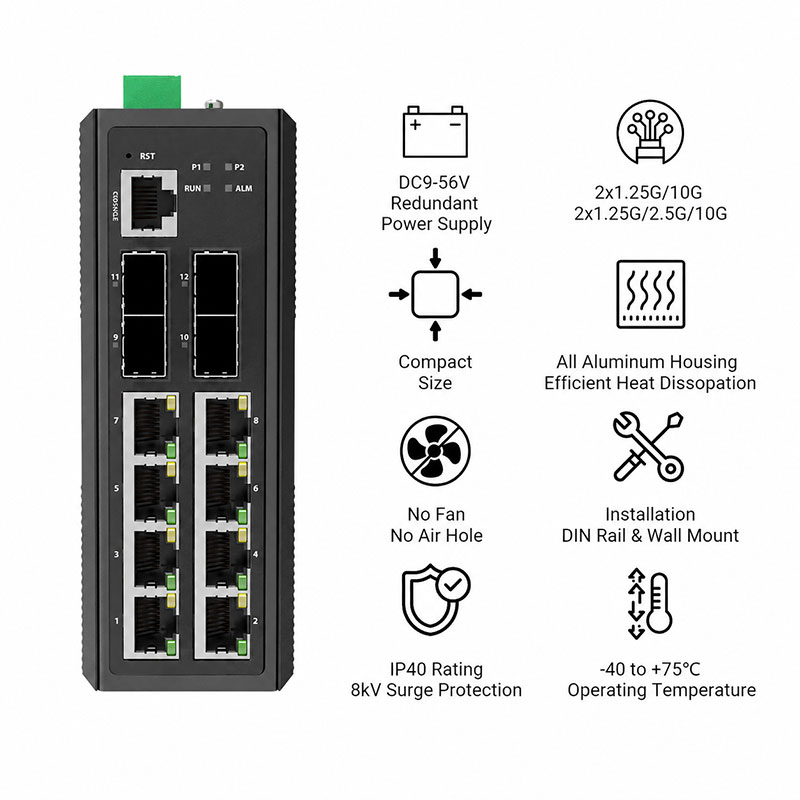

➢ 8*10/100/1000Base-T RJ45, 4*1G/10GBase-X SFP+
➢ Dual DC power DC9-56V input, redundant power supply with polarity reverse/overload protection
➢ Layer3 features:
IPv4/IPv6 dual-stack support
Static routing
Dynamic routing protocols: OSPFv2, RIP v1/v2
VRRP (Virtual Router Redundancy Protocol) for gateway failover
DHCP Server / DHCP Client
➢ Backplane bandwidth: 128Gbps
➢ Packet buffer: 12Mbits, MAC table: 16K
➢ Low latency switching: < 7μs
➢ VLAN support up to 4K (802.1Q / QinQ / Voice / Surveillance VLAN)
➢ QoS with 8 queues per port (WRR / WFQ / Strict Priority)
➢ Security: 802.1X, ACL (L2–L4), SNMPv3, RADIUS, TACACS+
➢ STP / RSTP / MSTP support
➢ Link Aggregation (LACP)
➢ Support G.8032 ERPS protocol, recovery time ≤20ms
➢ IP40 fan-less and Din-rail hardware design
➢ Operation temperature:-40 ℃ ~+75℃
