4 x 10/100/1000Base-T , 2 x 100/1000Base-X SFP, Layer 2+ Managed Industrial Ethernet Switch
- Ask for a Quotation
- 5-Year Warranty
Description

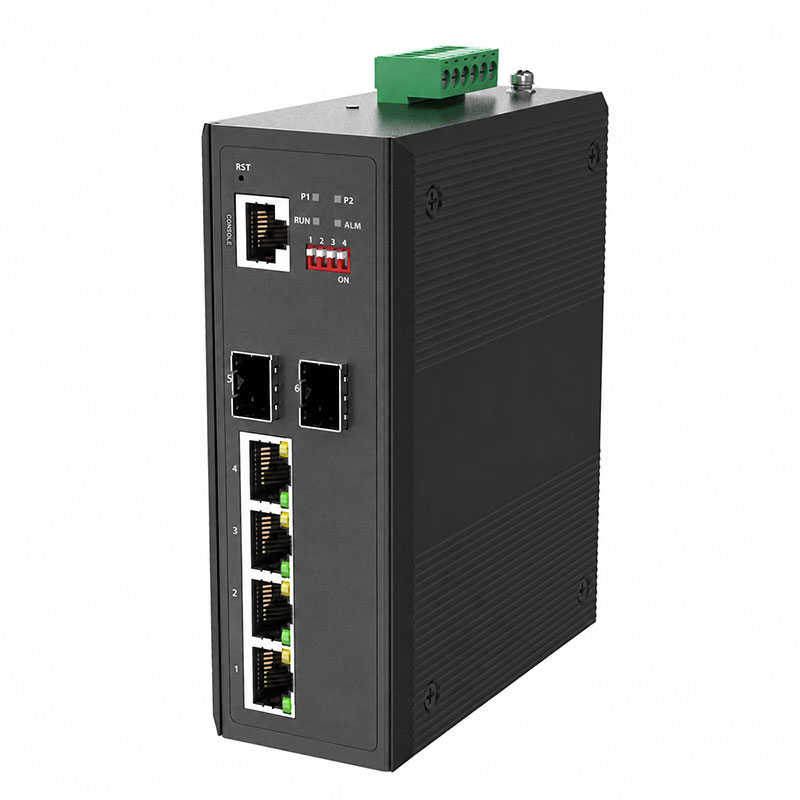

4 x 10/100/1000Base-T , 2 x 100/1000Base-X SFP, Layer 2+ Managed Industrial Ethernet Switch
The switch is a highly reliable managed industrial Ethernet Switch with 4-port 10/100/1000-T and 2-port 100/1000Base-X fiber optical interfaces. It supports ERPS redundant network which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution. It supports Web/SNMP/Telnet management, the managed features are such as QoS, VLAN, IGMP, Port mirroring, 802.1X, LLDP, Fiber transceiver DDM and so on.
It is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input 9-56VDC, redundant power design with polarity reverse protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and crucial.
Features

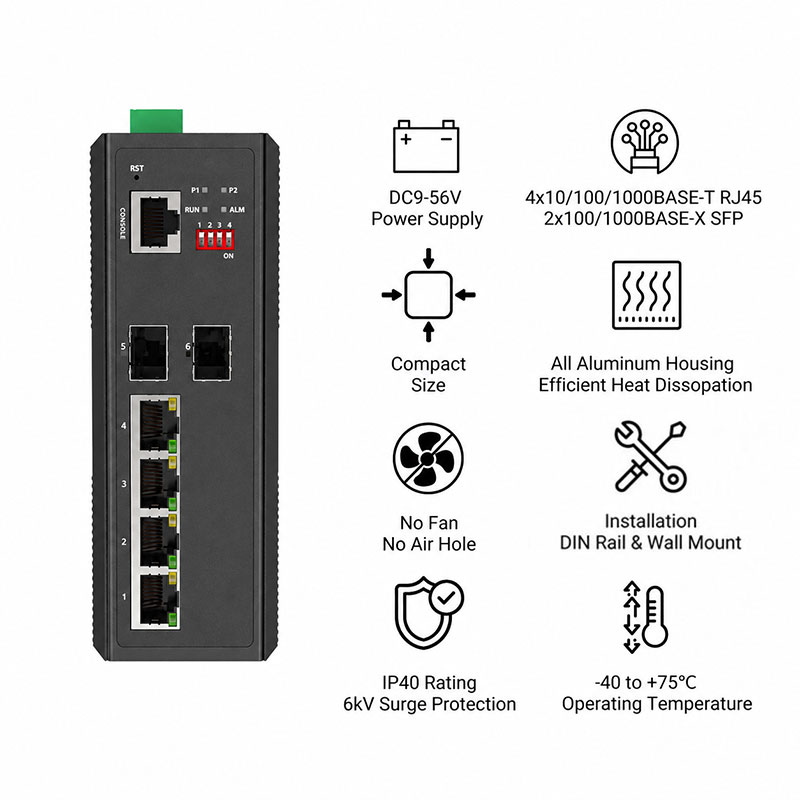

➢ 4*10/100/1000Base-T RJ45, 2*100/1000Base-X SFP
➢ Redundant power 9-56V input with polarity reverse/over-current protection
➢ 1×RJ45 console port for RS232 serial management
➢ Support static routing
➢ Support VLAN, GVRP, STP/RSTP/MSTP and ERPSv2
➢ Support QoS based on IEEE 802.1p, CoS, WRR and Strict Mode
➢ Support SNMP v1/v2c/v3 network management
➢ Support Web GUI, CLI and NMS management
➢ Support IEEE 802.3ad Link Aggregation (LACP)
➢ Switching capacity: 36Gbps
➢ Packet buffer: 4Mbits, MAC address table: 8K
➢ Support jumbo frame up to 10K bytes
➢ Support IEEE 802.3x flow control
➢ Support 6KV surge protection and ESD protection
➢ IP40 fan-less and Din-rail hardware design
➢ Operation temperature: -40°C ~+75°C
