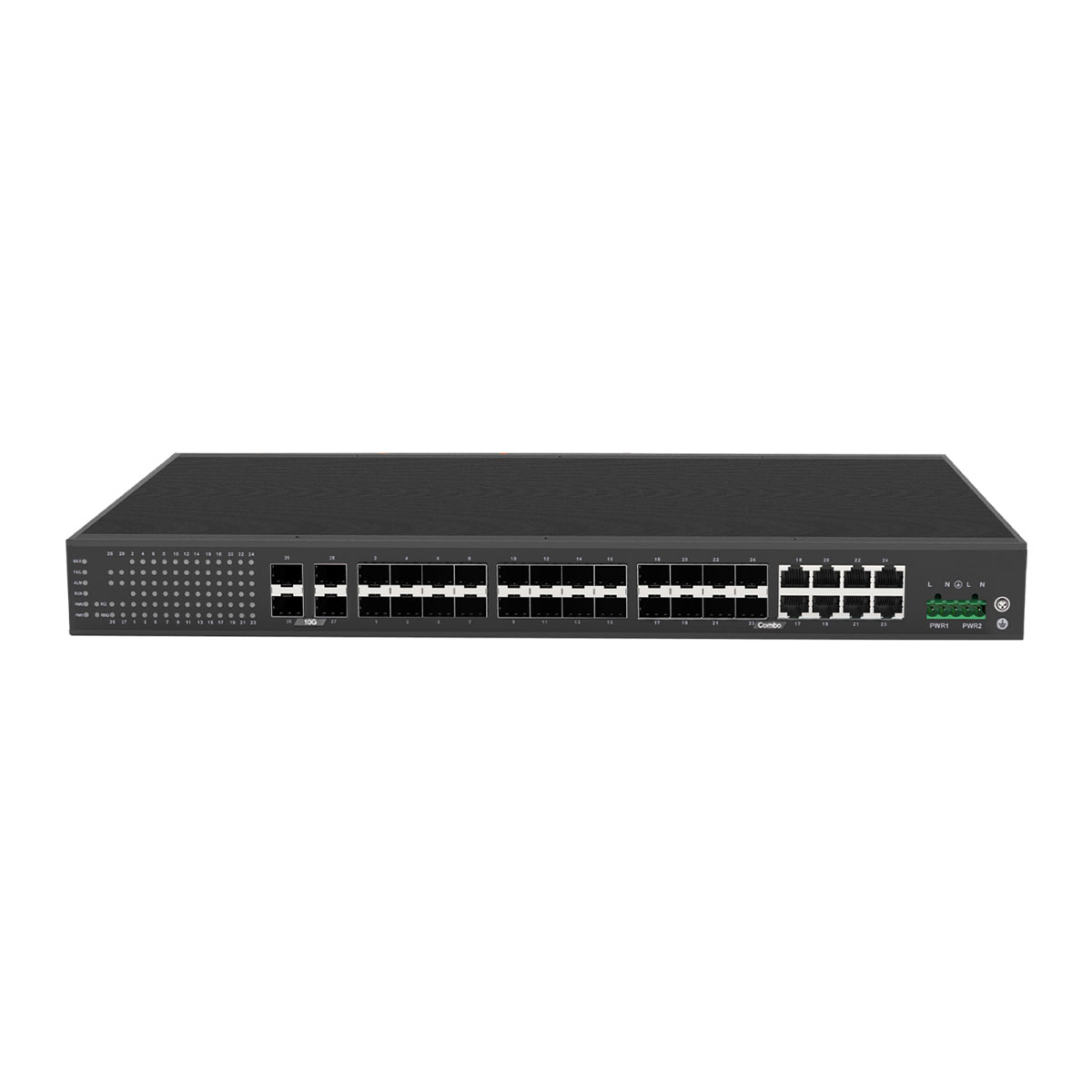

16 x 1GB SFP, 8 x 1G Combo RJ45/SFP, 4 x 10GBase-X SFP+, Layer 3 Managed Industrial Ethernet Switch
- Ask for a Quotation
- 5-Year Warranty
Description
16 x 1000Base-X SFP,8 x Gigabit Combo, 4 x 10GBase-X SFP+ ,Layer 3 Managed Industrial Rack-mount Ethernet Switch
CIS-820C8M is highly reliable Layer 3 managed industrial Ethernet switches with 16-port Gigabit SFP fiber interfaces, 8-port Gigabit Combo RJ45/SFP interfaces and 4-port 10GBase-X SFP+ uplink interfaces. With full gigabit fiber access and 10G uplink capability, they can provide high performance and ensure smooth transmission for video, voice and industrial data applications. They support ERPS, STP/RSTP/MSTP redundancy technologies, Static Routing, RIP, OSPF and VRRP protocols, making them ideal for large-scale industrial networks.
CIS-820C8M also supports IEEE 802.1Q VLAN, IGMP Snooping V1/V2/V3, GMRP, LACP link aggregation, QoS scheduling, ACL security control and comprehensive management through CLI, WEB and SNMP interfaces. With 12Mbit packet buffer, 128Gbps backplane bandwidth and 96Mpps forwarding rate, they ensure stable wire-speed forwarding performance on all ports.
CIS-820C8M is high cost-effective and easy-to-use industrial Ethernet switches, providing optional redundant dual DC/AC power supply with reverse polarity and overload current protection, rugged IP40 aluminum fanless housing with 1U rack-mount installation, and wide operating temperature from -40°C to 75°C. They are ideal for industrial automation, transportation, energy, factory automation and IP surveillance applications.
Features
➢ 16*1000Base-X SFP, 8*1G Combo RJ45/SFP, 4*10GBase-X SFP+
➢ 12Mbit packet buffer, 128Gbps backplane bandwidth and 96Mpps packet forwarding rate
➢ Support jumbo frame up to 10K bytes and 16K MAC address table
➢ Support IEEE 802.3/802.3u/802.3ab/802.3z/802.3x Ethernet standards
➢ Layer 3 routing features: Support Static Routing, RIP, OSPF and VRRP
➢ Redundant network features: Support ERPS ring network with self-healing time <20ms, STP/RSTP/MSTP redundancy protocols
➢ VLAN features: Support IEEE 802.1Q 4K VLAN and GMRP multicast protocol
➢ Multicast features: Support IGMP Snooping V1/V2/V3
➢ Link aggregation: Support manual aggregation and static/dynamic LACP
➢ QoS features: Support COS, DSCP, 8 priority queues, WRR/SP/WFQ scheduling and policy-based QoS
➢ Security features: Support DHCP Snooping, Option 82, IEEE 802.1X authentication, ACL access control, DDOS protection and port-based MAC filtering/binding
➢ Data flow control: Support ingress/egress rate limiting, IEEE 802.3X full-duplex flow control and half-duplex backpressure flow control
➢ Management and maintenance: Support CLI, WEB, SNMP, Syslog, Ping, Port Mirroring, RMON and TRAP alarm management
➢ Redundant dual AC/DC power supply with reverse polarity and overload current protection
➢ IP40 fan-less and rack-mount hardware design
➢ Operation temperature: -40°C ~+ 75°C
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
