4 x 10/100/1000Base-T , 2 x 1000Base-X SFP, Layer 2 Managed Industrial Ethernet Switch

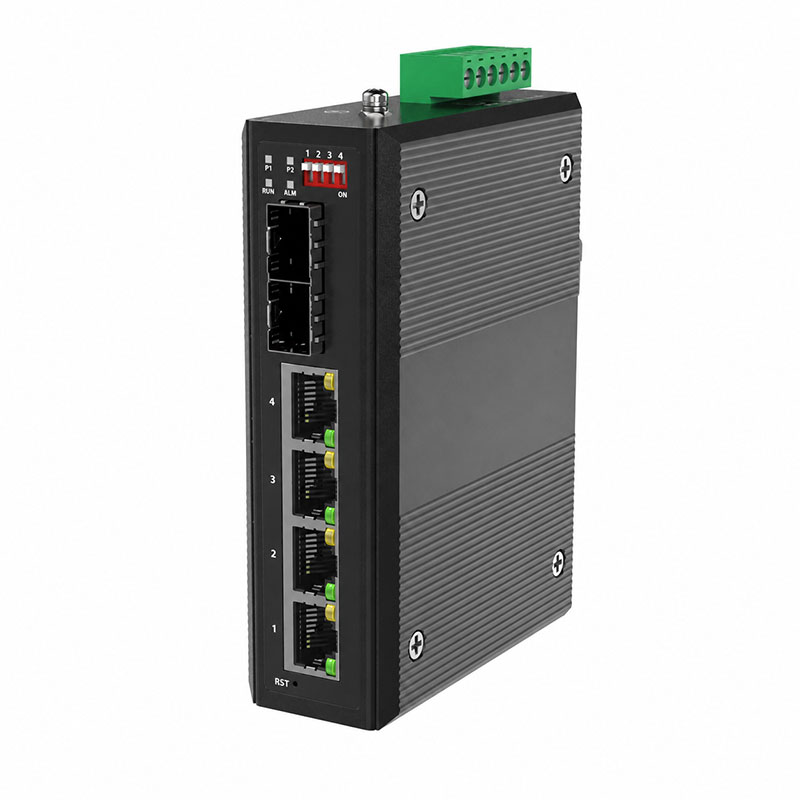

CIS-4204M is a highly reliable managed industrial Ethernet switch with 4-port 10/100/1000Base-T RJ45 and 2-port 1000Base-X SFP fiber interfaces. It supports IEEE 802.1D STP and IEEE 802.1w RSTP protocols to enhance network reliability and redundancy. The switch adopts a store-and-forward switching architecture with large backplane bandwidth and switching buffer to ensure wire-speed forwarding on all ports.
CIS-4204M supports convenient management and deployment features, including Web management, VLAN, QoS, IGMP Snooping, port mirroring, broadcast storm suppression, port statistics and VCT cable diagnostics. It also features DIP switch configuration for one-click Ring, VLAN and forced 100M mode settings, simplifying industrial network installation and maintenance.
Designed for harsh industrial environments, CIS-4204M provides redundant dual DC power inputs from 9~56VDC with reverse polarity and over-current protection. The fan-less DIN-rail mounting design, wide operating temperature range from -40°C to 75°C, and high-level EMC protection ensure stable operation in industrial automation, transportation, energy, security surveillance and other demanding applications.

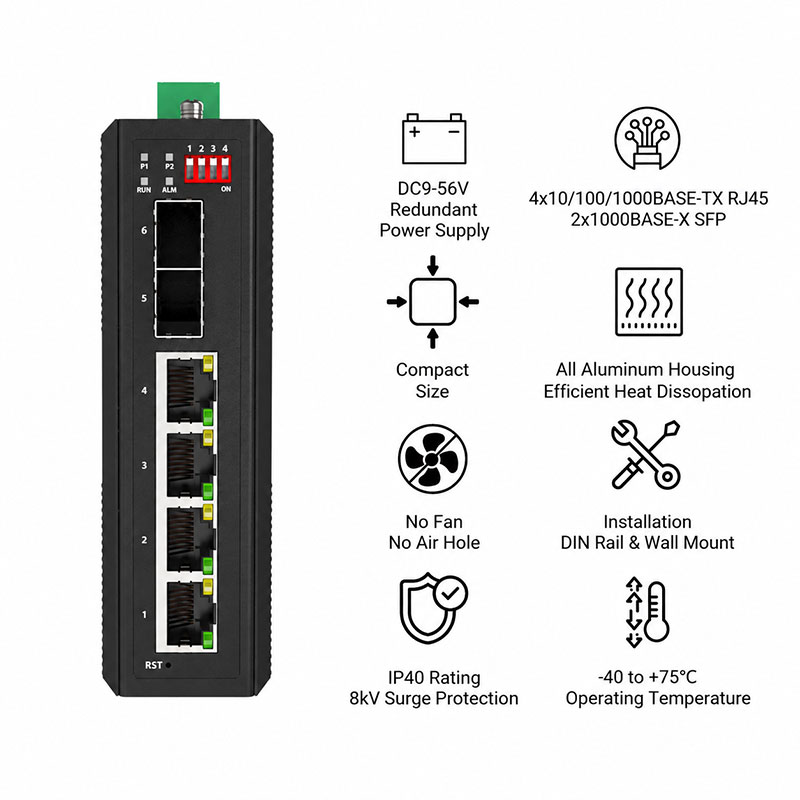

Features
➢ 4*10/100/1000Base-T RJ45, 2*1000Base-X SFP
➢ Redundant dual power input: DC 9~56V with reverse polarity and over-current protection
➢ Support IEEE 802.1D STP and IEEE 802.1w RSTP
➢ Support one-click Ring, one-click VLAN and forced 100M mode via DIP switch
➢ Support IEEE 802.1Q VLAN
➢ Support IGMP Snooping multicast management
➢ Support QoS based on IEEE 802.1p priority
➢ Support port flow control and port rate limiting
➢ Support broadcast storm suppression
➢ Support port statistics, VCT cable diagnostics and port mirroring
➢ Support Web management
➢ Packet buffer: 1Mbits
➢ MAC address table: 2K
➢ Support jumbo frame up to 9K bytes
➢ IP40 fan-less and Din-rail hardware design
➢ Operation temperature: -40°C ~+75°C
